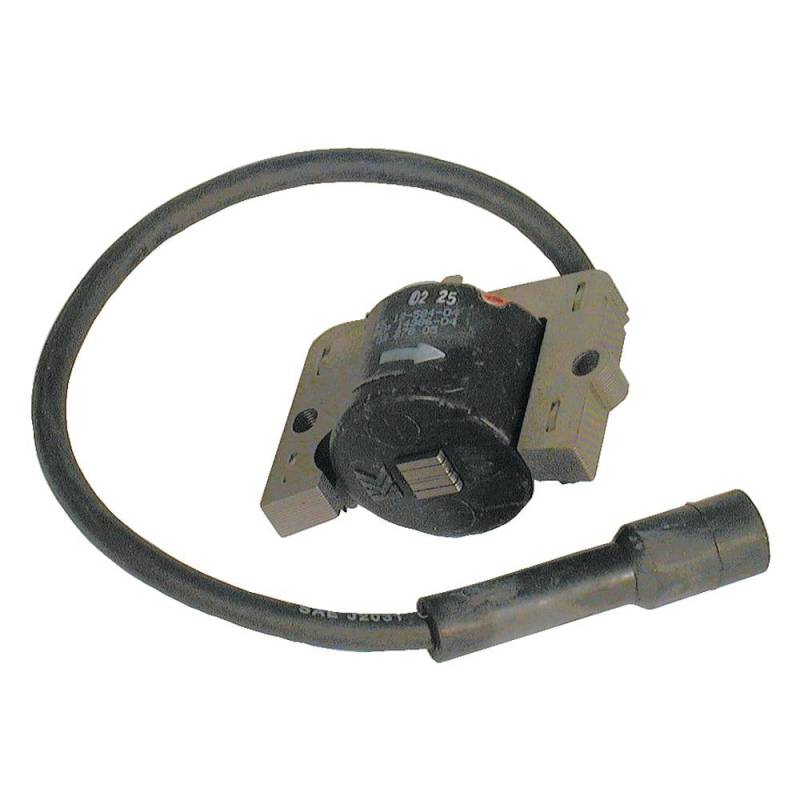

Solid State Module Compatible With Kohler Command Cv461 Cv491 Cv492 Cv493t Ch440 Craftsman 917273135

OEM PART NUMBERS (Supersession Chain):
• Kohler: 12 584 04-S / 1258404-S / 1258404S (Current)
• Kohler: 12-584-04-S / 12-584-04 / 12 584 04 / 1258404
• Kohler: 12 584 01-S / 1258401-S / 1258401S (Superseded)
• Kohler: 12-584-01-S / 12-584-01 / 12 584 01 / 1258401
• Ariens: 20981500 / 2098-1500

SPECIFICATIONS:
• Type: Solid State Ignition Module (Armature Magneto)
• Function: Produces High Voltage Spark for Ignition System
• Includes: Spark Plug Boot and HT Wire
• For: Electric Start Models
• Air Gap: 0.010" (0.254mm)
• Weight: 0.58 lbs
• Engine Series: Kohler Command CH/CV Single-Cylinder OHV
• HP Range: 11HP to 18HP
• Displacement: 398cc to 493cc
• Condition: New

KOHLER ENGINE APPLICATIONS:
• CH11-CH15 (398-426cc 11-15HP) / CH410-CH450 (Command Pro)
• CV11-CV15 (398-426cc 11-15HP) / CV430-CV493T (429-493cc 14-18HP)

EQUIPMENT APPLICATIONS:
• Craftsman (67) / Husqvarna (34) / Dixon (16) / Scag (14)
• JD GT225 (6) / Ariens (3) / Poulan (3) / Bobcat (2) / Dixie Chopper (2)
