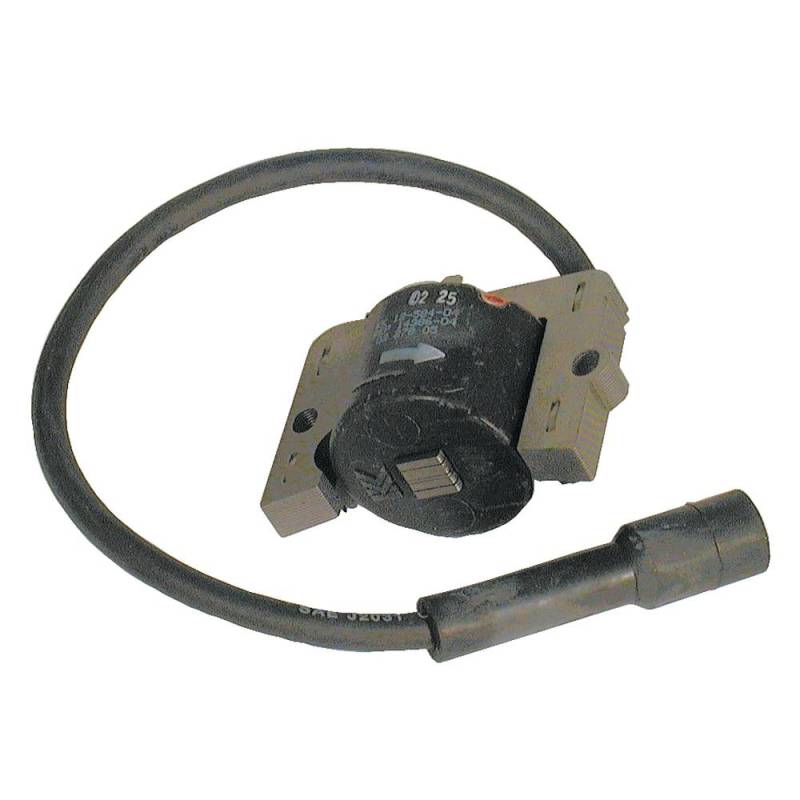

Ignition Coil Module Compatible With Kohler Ch410 Ch430 Ch450 Cv11 Cv12.5 Cv13 Craftsman 917258542

OEM PART NUMBERS (Supersession Chain):
• Kohler: 12 584 04-S / 1258404-S / 1258404S (Current)
• Kohler: 12-584-04-S / 12-584-04 / 12 584 04 / 1258404
• Kohler: 12 584 01-S / 1258401-S / 1258401S (Superseded)
• Kohler: 12-584-01-S / 12-584-01 / 12 584 01 / 1258401
• Ariens: 20981500 / 2098-1500

SPECIFICATIONS:
• Type: Solid State Ignition Module (Armature Magneto)
• Function: Produces High Voltage Spark for Ignition System
• Includes: Spark Plug Boot and HT Wire
• For: Electric Start Models
• Air Gap: 0.010" (0.254mm)
• Weight: 0.58 lbs
• Engine Series: Kohler Command CH/CV Single-Cylinder OHV
• HP Range: 11HP to 18HP
• Displacement: 398cc to 493cc
• Condition: New

KOHLER ENGINE APPLICATIONS:
• CH11-CH15 (398-426cc 11-15HP) / CH410-CH450 (Command Pro)
• CV11-CV15 (398-426cc 11-15HP) / CV430-CV493T (429-493cc 14-18HP)

EQUIPMENT APPLICATIONS:
• Craftsman (67) / Husqvarna (34) / Dixon (16) / Scag (14)
• JD GT225 (6) / Ariens (3) / Poulan (3) / Bobcat (2) / Dixie Chopper (2)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
