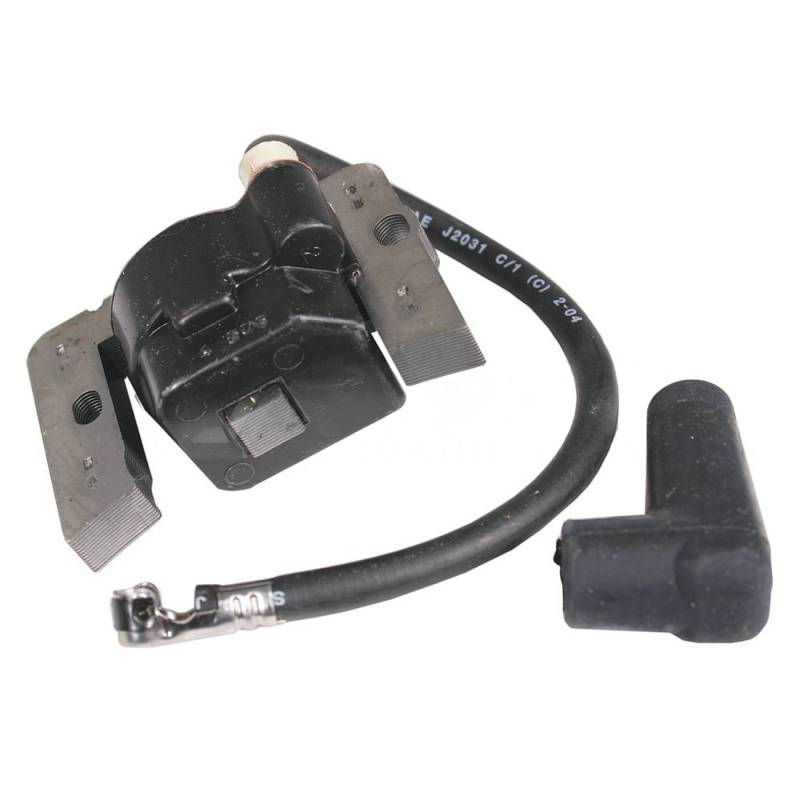

Ignition Module Compatible With Tecumseh Hmsk80 Hmsk90 Hmsk110 Hm100 8 Hp 9 Hp 10 Hp 11 Hp Snow

PART NUMBERS:
• Tecumseh: 35135B
• Tecumseh: 35135A (superseded by 35135B)
• Oregon: 33-343
• Rotary: 8692

SPECIFICATIONS:
• Type: CDI Solid State Ignition Module (Electronic)
• Ignition: Breakerless — No Points or Condenser Required
• Primary Coil Resistance: 0.5-2.0 Ohms
• Secondary Coil Resistance: 3000-8000 Ohms
• Air Gap: 0.010"-0.030" (0.254-0.762mm)
• Dimensions: 2.45" x 2.35" x 3.7"
• Weight: 8.96 oz (254g)
• Spark Plug: Champion RJ8C (0.030" gap)
• Condition: New

SUPERSESSION CHAIN:
• 35135A → 35135B

TECUMSEH ENGINE COMPATIBILITY:
• HM70 (7HP), HM80 (8HP), HM90 (9HP), HM100 (10HP)
• HMSK80 (8HP), HMSK90 (9HP), HMSK100 (10HP), HMSK105 (10.5HP), HMSK110 (11HP)
• LH318SA (9HP 318cc), LH358SA/EA/XA (11HP 358cc)
• OH318SA, OH358SA, OHSK80, OHSK110, OHSK130
• OHM90-OHM120, OHV12 (12HP), OHV13 (13HP), OHV125 (12.5HP)
• OVM120, OVXL120, OVXL125
• TVM170 (5.7HP), TVM195 (6.5HP), TVM220 (8HP 358cc), TVXL195, TVXL220
