OEM PART NUMBERS:
• Kohler: 24 165 02-S / 2416502-S / 2416502S
• Kohler: 12 165 01-S / 1216501-S / 1216501S
• Kohler: 12 165 02-S / 1216502-S / 1216502S
• Kohler: 12 165 03-S / 1216503-S / 1216503S
• Kohler: 12 165 04-S / 1216504-S / 1216504S
SPECIFICATIONS:

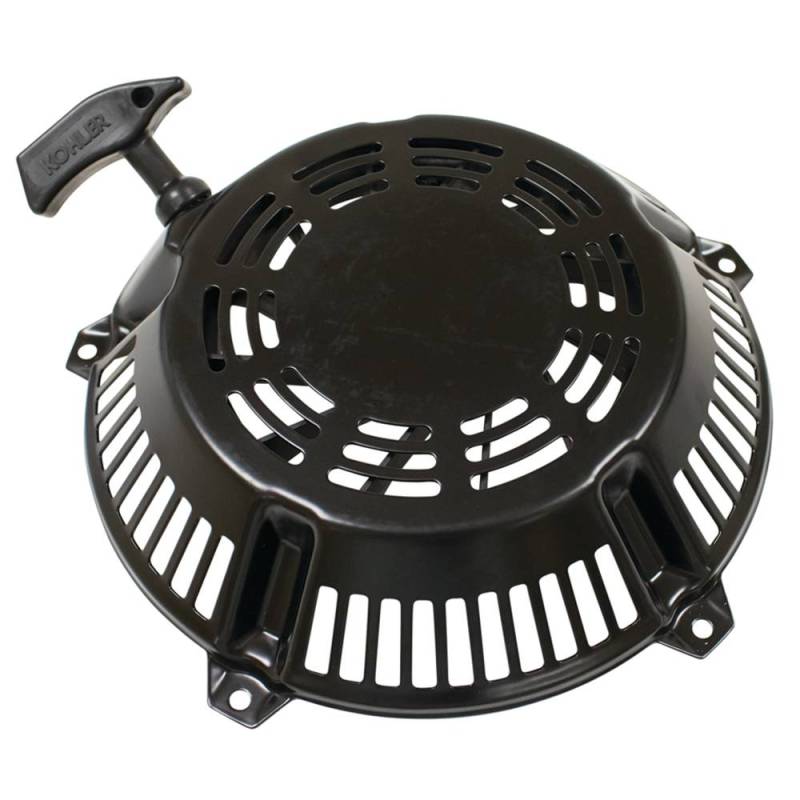

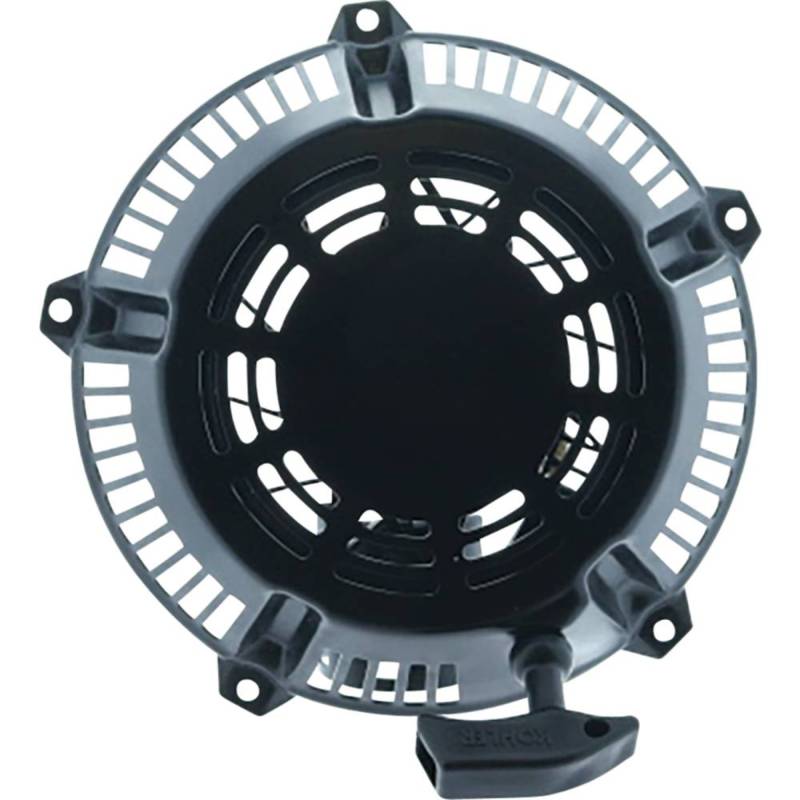

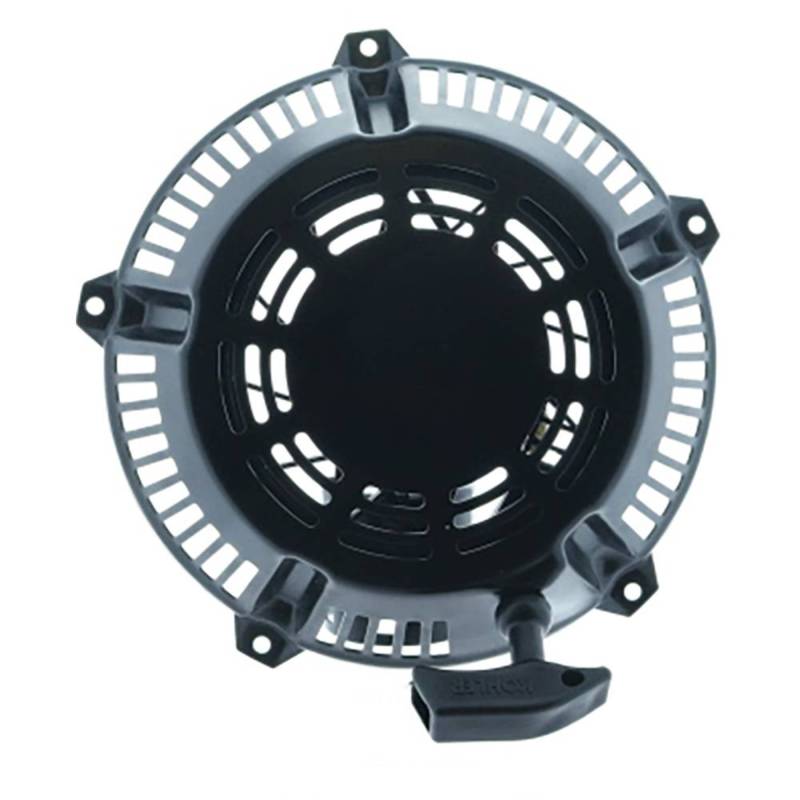

• Type: Retractable Recoil Starter Assembly (Complete Pull-Start)
• Includes: Housing, Recoil Spring, Rope, Handle, Drive Cup
• Fits: Vertical and Horizontal Shaft Kohler Engines
• Engine Series: Command CV, Command CH, Command Pro, Magnum M
• HP Range: 10HP to 20HP
• Displacement Range: 391cc to 624cc
• Condition: New
KOHLER COMMAND CV SERIES APPLICATIONS (Vertical Shaft 11-17HP):
• CV11 398cc 11HP, CV12.5 398cc 12.5HP, CV13 398cc 13HP
• CV14 398cc 14HP, CV15 426cc 15HP, CV493 490cc 17HP
KOHLER COMMAND CH SERIES APPLICATIONS (Horizontal Shaft 11-20HP):
• CH11 398cc 11HP, CH12.5 398cc 12.5HP, CH13 398cc 13HP
• CH14 398cc 14HP, CH15 426cc 15HP, CH18 624cc 18HP, CH20 624cc 20HP
• CH410 410cc 14HP, CH430 429cc 14HP
KOHLER MAGNUM SERIES APPLICATIONS (L-Head 10-16HP):
• M10 391cc 10HP, M12 476cc 12HP, M14 512cc 14HP, M16 588cc 16HP
EQUIPMENT APPLICATIONS:
• Bobcat XM5412, XM5421 Zero-Turn Mowers
• Ferris 5901194 Commercial Mower
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
