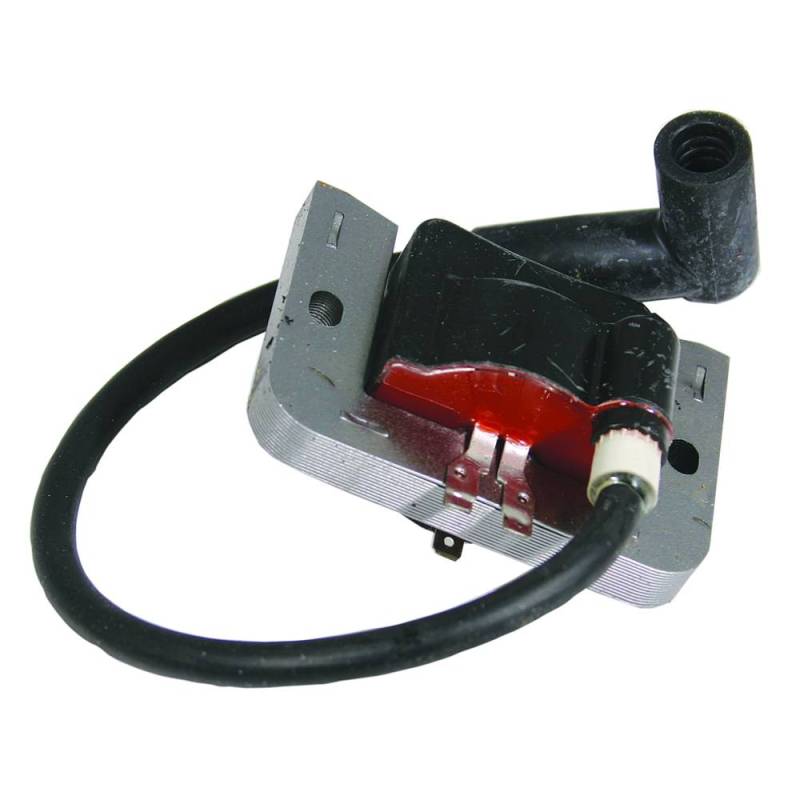

Solid State Module Compatible With Kohler Ch18 Ch20 Ch22 Ch23 Ch25 Ch730 Twin Engines Replaces 24

(0) Reviews: Write first review
055-469A3
OEM PART NUMBERS:
• Kohler: 24 584 01-S / 24-584-01-S / 2458401-S / 2458401S / 2458401
• Kohler: 24 584 201-S / 24-584-201-S / 24584201-S / 24584201S
• Kohler: 24 584 45-S / 24-584-45-S / 2458445-S / 2458445S / 2458445
• Kohler: 32 584 01-S / 32-584-01-S / 3258401-S / 3258401S / 3258401
• Kohler: 24 584 04-S / 24-584-04-S / 2458404-S / 2458404S / 2458404
• Kohler: 28 584 02-S / 28-584-02-S / 2858402-S / 2858402S / 2858402
• Kohler: 66 584 10-S / 66-584-10-S / 6658410-S / 6658410S / 6658410
• Kohler: 25 584 01-S / 25-584-01-S / 2558401
• John Deere: MIU11542, M132370, MIA11292

SPECIFICATIONS:
• Product Type: Solid State Ignition Module
• Engine Type: Kohler Command CH/CV & Courage SV Series
• Displacement Range: 561cc - 725cc (34 - 44 cu.in.)
• Horsepower Range: 17HP - 27HP @ 3600 RPM
• Configuration: Twin-Cylinder & Single-Cylinder OHV 4-Stroke Air-Cooled
• Shaft Types: Horizontal (CH-series) and Vertical (CV-series)
• Ignition Type: Electronic Magneto with Solid State Module
• Condition: New Aftermarket Replacement

ENGINE MODEL APPLICATIONS:
• Kohler CH-Series (Horizontal Twin): CH18, CH20, CH22, CH23, CH25, CH620, CH640, CH670, CH680, CH730, CH740
• Kohler CV-Series (Vertical Twin): CV17, CV18, CV20, CV22, CV23, CV25, CV620, CV640, CV670, CV680, CV730, CV740
• Kohler SV-Series (Single-Cyl): SV470, SV480, SV530, SV540, SV590, SV710, SV715, SV720, SV725, SV730, SV820, SV830

EQUIPMENT BRAND APPLICATIONS:
• Craftsman: 917-series lawn tractors (80+ models with Kohler Command twin engines)
• John Deere: GT, L, LT, LTR, LX, SST, STX series garden tractors with Kohler engines
• Ariens: 915xxx, 936xxx, 991xxx, 992xxx zero-turn mowers (17 models)
• Bobcat: 942xxx series zero-turn mowers (5 models)
• Toro: Z4200, Z5000 TimeCutter commercial mowers
• Cub Cadet, Gravely: Various models with Kohler Command twin-cylinder engines

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $269.24
Sale: $153.85
Save: 43%
Save: $115.39
Qty:
Free Shipping!

Description

KOHLER COMMAND CH SERIES (HORIZONTAL SHAFT TWIN-CYLINDER):
• CH18, CH20, CH620, CH640: 624cc (38 cu.in.) Twin-Cyl OHV 4-Stroke Air-Cooled 18-20HP
• CH22, CH23, CH670, CH680: 674cc (41 cu.in.) Twin-Cyl OHV 4-Stroke Air-Cooled 22-23HP
• CH25, CH730, CH740: 725cc (44 cu.in.) Twin-Cyl OHV 4-Stroke Air-Cooled 25-27HP

KOHLER COMMAND CV SERIES (VERTICAL SHAFT TWIN-CYLINDER):
• CV17: 561cc (34 cu.in.) Twin-Cyl OHV 4-Stroke Air-Cooled Vertical Shaft 17HP
• CV18, CV20, CV620, CV640: 624cc (38 cu.in.) Twin-Cyl OHV 4-Stroke Vertical Shaft 18-20HP
• CV22, CV23, CV670, CV680: 674cc (41 cu.in.) Twin-Cyl OHV 4-Stroke Vertical Shaft 22-23HP
• CV25, CV730, CV740: 725cc (44 cu.in.) Twin-Cyl OHV 4-Stroke Vertical Shaft 25-27HP

KOHLER COURAGE SV SERIES (SINGLE-CYLINDER):
• SV470, SV480, SV530, SV540, SV590 Courage Single-Cyl OHV 4-Stroke Air-Cooled
• SV710, SV715, SV720, SV725, SV730 Courage Pro Single-Cyl OHV 4-Stroke
• SV820, SV830 Courage XT Single-Cyl OHV 4-Stroke Air-Cooled

CRAFTSMAN LAWN TRACTORS (80+ models with Kohler engines):
• 247250610, 917250482, 917250551, 917250560, 917250980
• 917251370, 917251493, 917251510, 917251511, 917251520, 917251522
• 917251550, 917251551, 917251560, 917251561, 917251650
• 917253170, 917258872, 917258904, 917258911, 917258914
• 917272121, 917272240, 917272241, 917272242, 917272246, 917272248
• 917272950, 917272953, 917272960, 917272962
• 917273011, 917273012, 917273021, 917273022, 917273050
• 917273060, 917273061, 917273070, 917273080, 917273090
• 917273100, 917273101, 917273111, 917273113, 917273120
• 917273201, 917273221, 917273223, 917273240, 917273241
• 917273470, 917273471, 917273481, 917273482
• 917273660, 917273661, 917273663
• 917274951, 917274953, 917274961
• 917275011, 917275013, 917275021, 917275031, 917275034, 917275040
• 917275223, 917275900, 917275901, 917275902
• 917276010, 917276011, 917276013, 917276020, 917276021, 917276022
• 917276030, 917276040, 917276090, 917276101, 917276102
• 917276230, 917276240, 917276350, 917276351, 917276360

JOHN DEERE GARDEN TRACTORS:
• GT225, L110, L120, L130, LT133, LT150, LT155, LT160
• LTR155, LTR166, LX173, LX255, LX266
• SST15, STX30, STX38, STX46

ARIENS ZERO-TURN MOWERS:
• 915137, 915139, 915161
• 936040, 936043, 936044, 936054, 936055
• 936058, 936059, 936068, 936069
• 991056, 991153, 991155, 992141, 992142

BOBCAT ZERO-TURN MOWERS:
• 942102, 942103, 942104
• 942520H, 942520J

TORO COMMERCIAL EQUIPMENT:
• Z4200, Z5000 TimeCutter series with Kohler Twin engines

CUB CADET LAWN TRACTORS:
• Various models with Kohler Command CH/CV twin-cylinder engines

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 0.7 lbs.
  • W3.4000” x H3.3000” x L4.2500”
