Kawasaki :
• 49050-0023 (U-Joint — Mule 2500 / 3000 / 4000 Series)
• 49050-0034 (U-Joint — Mule Pro FX / FXT / DX / DXT / Teryx / KRX)
• 49050-1060 (U-Joint — Teryx 750 / 800 / Mule 4010)
• 49050-1075 (Propeller Shaft U-Joint Variant)
:
• All Balls 19-1009 (U-Joint Kit 25mm Inside Snap Rings 45mm)
• Caltric Rear Propeller Shaft Yoke U-Joint
• ATVPC Precision Universal Joint Set
• East Lake Axle Driveshaft U-Joint Set
NOT Compatible With:
• Kawasaki Mule 610 / Mule SX — Uses 49050-1002 (different u-joint)
• Kawasaki Prairie 300 / 360 — Uses 49050-1055 / 49050-1057
• Outside snap ring applications — This is inside snap ring design
• 22mm or 24mm u-joint applications — This is 25mm diameter
• Can-Am / Polaris / Honda ATVs — Kawasaki specific dimensions

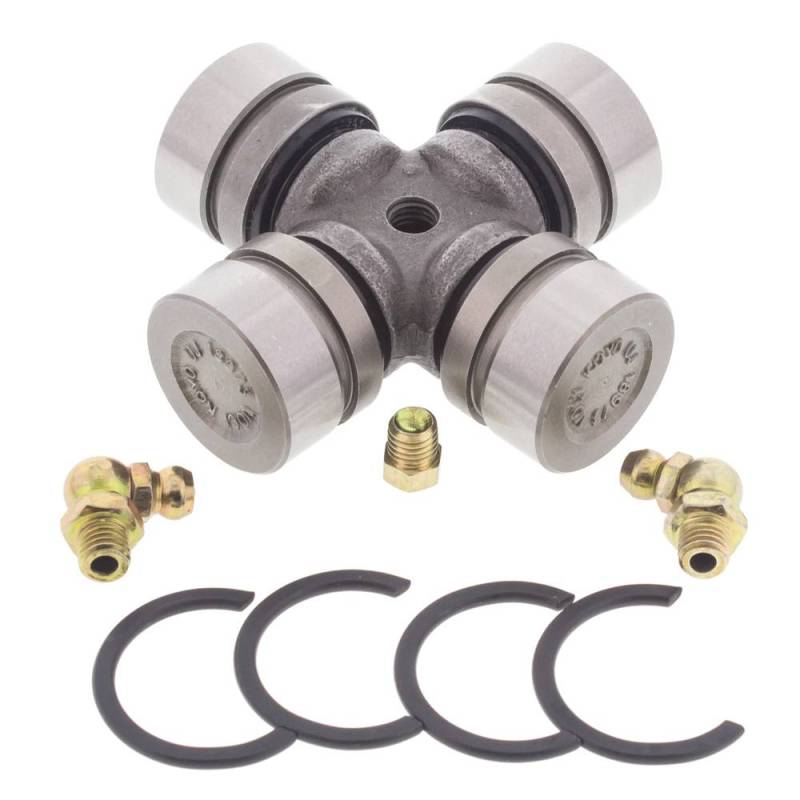

Product Specifications:
• Type: U-Joint Kit (Universal Joint)
• U-Joint Diameter: 25mm (Cap Diameter)
• U-Joint Width: 45mm (Overall Width)
• Cap-to-Cap Length: 64mm
• Groove-to-Groove: 41.5mm
• Snap Ring Type: Inside Snap Rings
• Material: Cold-Forged SCM-415 Steel
• Hardness: HRC58-61 (Case Hardened)
• Bearings: Needle Roller Bearings in Bearing Cups
• Seal: Quad Lip Seal on Bearing Cups
• Grease: Pre-Filled with Hi-Temp Lithium Complex 3
• Feature: Grease Zerk with Cap Plug Included
• Application: Kawasaki Mule 2500 / 3000 / 4000 / Pro Series / Teryx / KRX
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
