U-Joint Kit 24Mm Inside Snap Rings Steel Rear Driveshaft Compatible With 2002-2017 Kawasaki Kvf 650

All Balls Racing:
• 19-1004 / 12050220 (U-Joint Kit — Kawasaki / Suzuki)

Kawasaki :
• 13310-0013 (U-Joint Assembly — Prairie 360 / 650 / KFX 700)
• 13310-0014 (U-Joint Assembly — Prairie 360 / 650 / KFX 700)
• 13310-0028 (U-Joint Assembly — Prairie 700 / KFX 700)
• 13310-0558 (U-Joint Assembly — Brute Force 750 4x4i)
• 13310-0563 (U-Joint Assembly — Brute Force 650 4x4i)
• 13310-1026 (U-Joint Assembly — Brute Force 650)
• 13310-1028 (U-Joint Assembly — Brute Force 750)

NOT Compatible With:
• 25mm diameter U-joints — All Balls 19-1001 (Different size)
• 22mm diameter U-joints — All Balls 19-1002 (Different size)
• 20mm diameter U-joints — All Balls 19-1003 (Different size)
• Outside snap ring applications — This uses inside snap rings
• Kawasaki Teryx — Uses different U-joint specification
• Kawasaki Mule series — Uses different U-joint specification

Product Specifications:
• Type: U-Joint Kit (Universal Joint)
• U-Joint Diameter: 24mm
• U-Joint Width: 40.25mm
• Snap Ring Type: Inside Snap Rings
• Material: Cold-Forged SCM-415 Steel
• Hardness: Case Hardened HRC58-61
• Journals: Precision Ground
• Grease: Hi-Temp Lithium Complex (NLGI #2)
• Seals: Quad Lip Seal Design

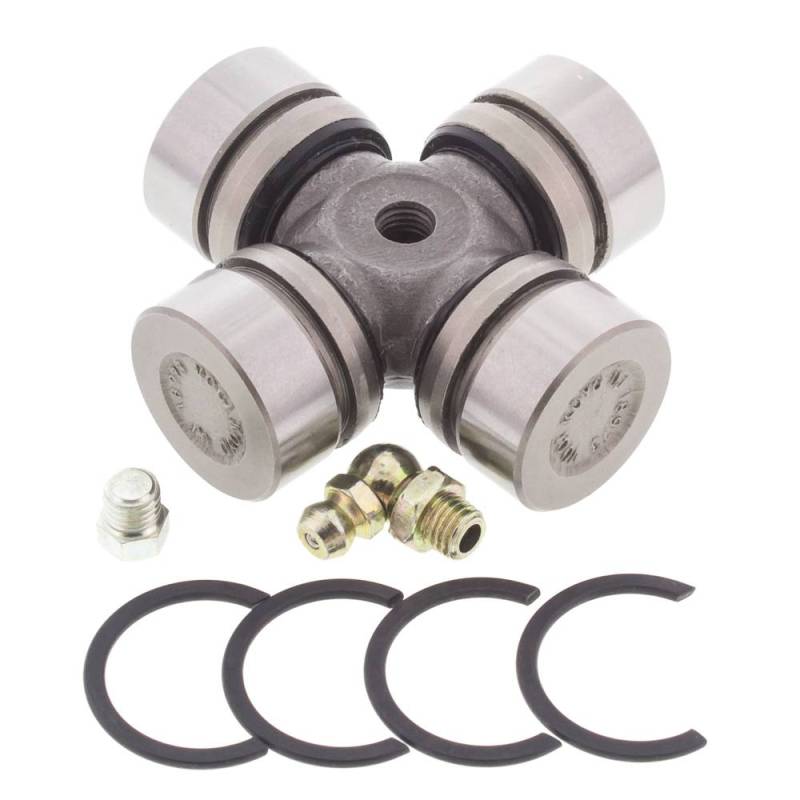

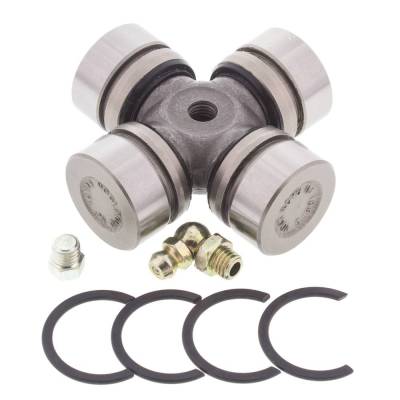

• Includes: U-Joint with Snap Rings and Cap Plug
• Position: Rear Driveshaft
• Application: Kawasaki Prairie / Brute Force / KFX / Suzuki Twin Peaks

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
