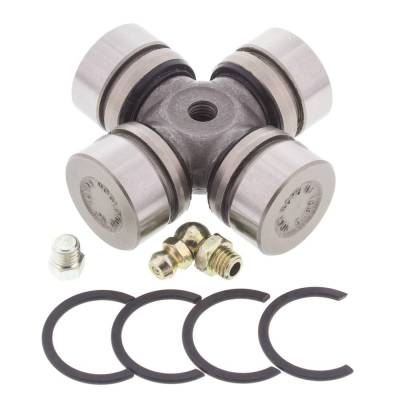

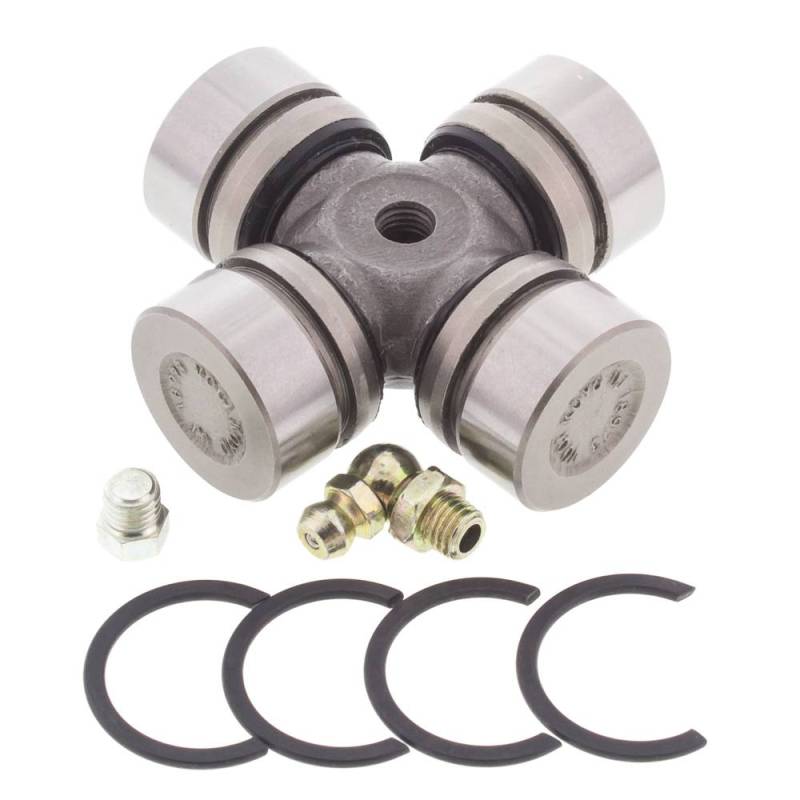

U-Joint Kit 24Mm Inside Snap Rings Steel Rear Driveshaft Compatible With 2002-2017 Kawasaki Kvf 360A

All Balls Racing:
• 19-1004 / 12050220 (U-Joint Kit — Kawasaki / Suzuki)

Kawasaki :
• 13310-0013 (U-Joint Assembly — Prairie 360 / 650 / KFX 700)
• 13310-0014 (U-Joint Assembly — Prairie 360 / 650 / KFX 700)
• 13310-0028 (U-Joint Assembly — Prairie 700 / KFX 700)
• 13310-0558 (U-Joint Assembly — Brute Force 750 4x4i)
• 13310-0563 (U-Joint Assembly — Brute Force 650 4x4i)
• 13310-1026 (U-Joint Assembly — Brute Force 650)
• 13310-1028 (U-Joint Assembly — Brute Force 750)

NOT Compatible With:
• 25mm diameter U-joints — All Balls 19-1001 (Different size)
• 22mm diameter U-joints — All Balls 19-1002 (Different size)
• 20mm diameter U-joints — All Balls 19-1003 (Different size)
• Outside snap ring applications — This uses inside snap rings
• Kawasaki Teryx — Uses different U-joint specification
• Kawasaki Mule series — Uses different U-joint specification

Product Specifications:
• Type: U-Joint Kit (Universal Joint)
• U-Joint Diameter: 24mm
• U-Joint Width: 40.25mm
• Snap Ring Type: Inside Snap Rings
• Material: Cold-Forged SCM-415 Steel
• Hardness: Case Hardened HRC58-61
• Journals: Precision Ground
• Grease: Hi-Temp Lithium Complex (NLGI #2)
• Seals: Quad Lip Seal Design
• Includes: U-Joint with Snap Rings and Cap Plug
• Position: Rear Driveshaft
• Application: Kawasaki Prairie / Brute Force / KFX / Suzuki Twin Peaks
