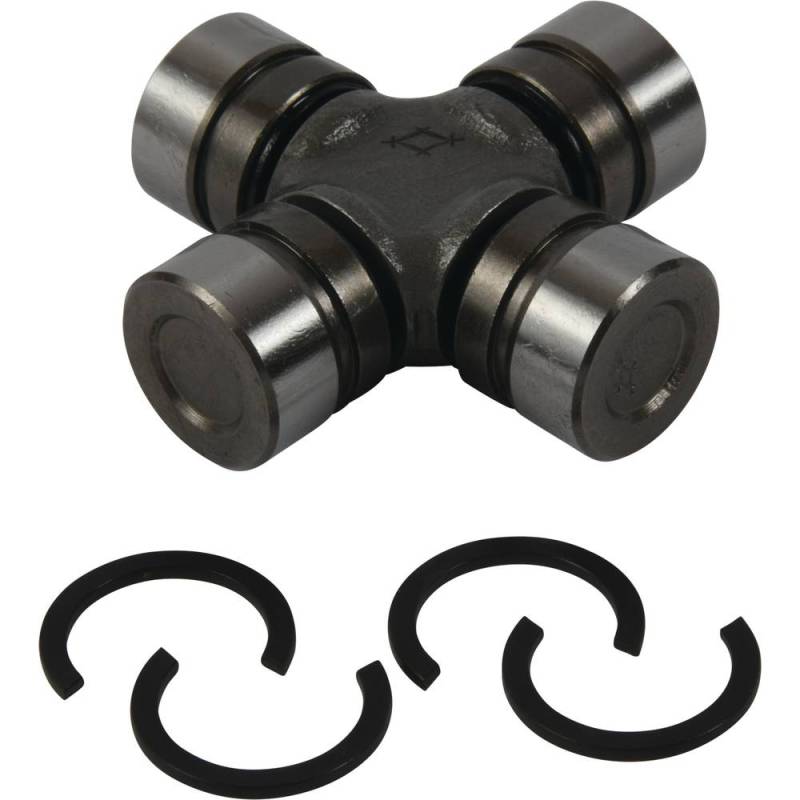

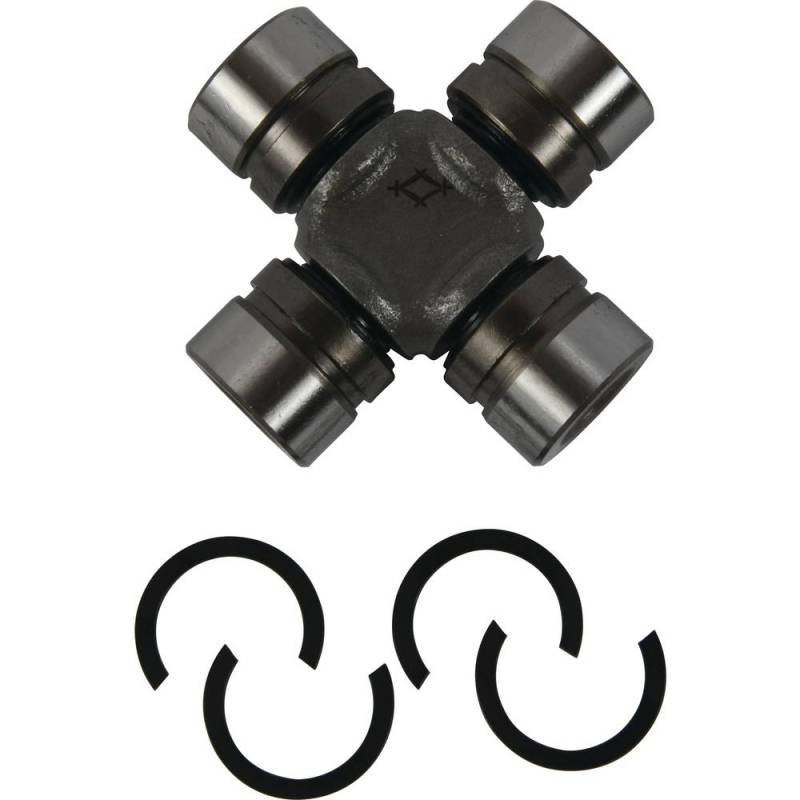

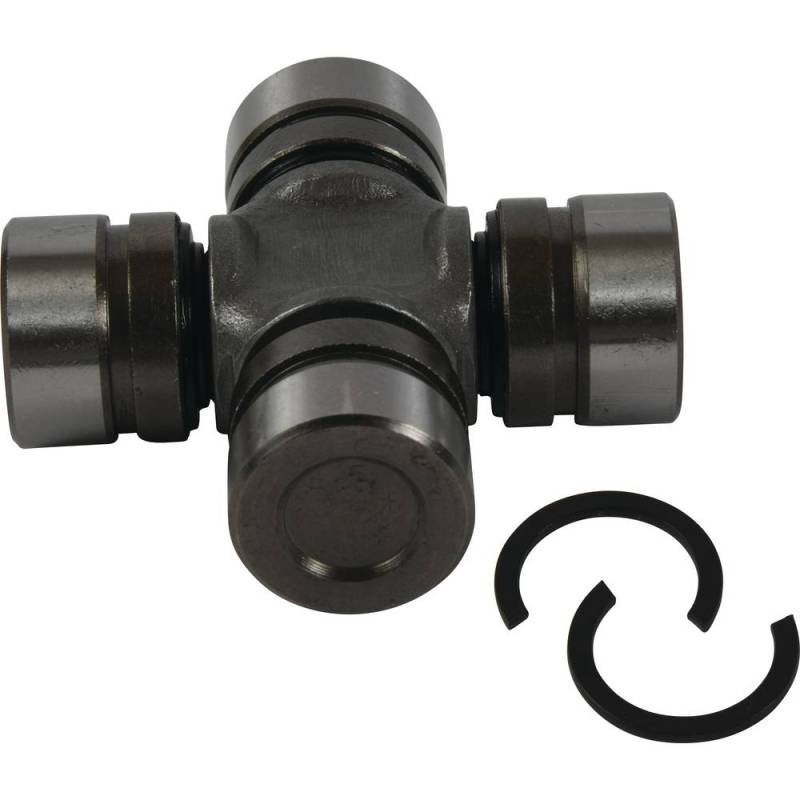

U-Joint Kit 20Mm Inside Snap Rings Steel 38.2Mm Compatible With Kubota G1800s Garden Tractor 662Cc

19-1020A1
Kubota :
• 37410-13722 (Kit Joint Cross with Clips — Front Driveshaft Differential Side)
• K37410-13722 (Alternate Format — Same Part Number)

:
• All Balls 19-1020 (U-Joint Kit 20mm Inside Snap Rings 38.2mm)
• Greater Ag Parts Spider U-Joint Assembly K37410-13722

NOT Compatible With:
• Kubota RTV 900 rear driveshaft — Different u-joint specification
• Kubota RTV 900 G, R, T, W (2004-2005 base models) — Verify fitment
• Kubota RTV 900 G9/R9/T9/W9 (2009-2013) — Different generation
• Kubota RTV-X900 / RTV-X1120 — Different model series
• Outside snap ring applications — This is inside snap ring design

Product Specifications:
• Type: U-Joint Kit (Universal Joint)
• U-Joint Diameter: 20mm (Cap Diameter)
• U-Joint Width: 38.2mm (Overall Width)
• Snap Ring Type: Inside Snap Rings
• Material: Cold-Forged SCM-415 Steel
• Hardness: HRC58-61 (Case Hardened)
• Bearings: Needle Roller Bearings in Bearing Cups
• Seal: Quad Lip Seal on Bearing Cups
• Grease: Pre-Filled with Hi-Temp Lithium Complex 3
• Feature: Dual Grease Zerks (90° and 120°) with Cap Plug
• Position: Front Driveshaft — Differential Side
• Application: Kubota RTV 900 / G1800S

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $106.98
Sale: $61.13
Save: 43%
Save: $45.85
Qty:
Free Shipping!

Description

Kubota RTV 900 Utility Vehicle:
• RTV 900 G6 — General Purpose Model (2006-2009)
• RTV 900 R6 — Recreation Model (2006-2009)
• RTV 900 T5 — Turf Utility Model (2005)
• RTV 900 T6 — Turf Utility Model (2006-2009)
• RTV 900 W6 — Worksite Model (2006-2009)
• RTV 900 W6SE — Worksite Special Edition (2007-2009)
• Engine: Kubota D902-E — 898cc 3-Cylinder Diesel
• Power: 21.6 HP at 3,200 RPM
• Bore x Stroke: 72mm x 73.6mm — Compression: 23:1
• Cooling: Liquid-Cooled — Fuel: Diesel

Kubota G1800S Garden Tractor:
• G1800S — 4-Wheel Steer Garden Tractor (1989-2000)
• Engine: Kubota D662 — 662cc 3-Cylinder Diesel
• Power: 16 HP — Natural Aspirated
• Bore x Stroke: 64mm x 68mm
• Mid-Mount Mower: 48-inch or 54-inch Deck

Driveshaft Position:
• Front Driveshaft — Differential Side
• NOT for rear driveshaft applications

Compatibility Notes:
• 20mm cap diameter with inside snap rings
• 38.2mm overall width
• Replaces Kubota 37410-13722
• Verify driveshaft position for your application
