OEM PART NUMBERS:
• Valley Industries: VI-020 / VI020
• Bulldog / Reese / Draw-Tite: 151401
• Reese / Draw-Tite: 158451
• Torin: ATR39003R
• Complete Tractor: 3013-0502 / 30130502
SPECIFICATIONS:

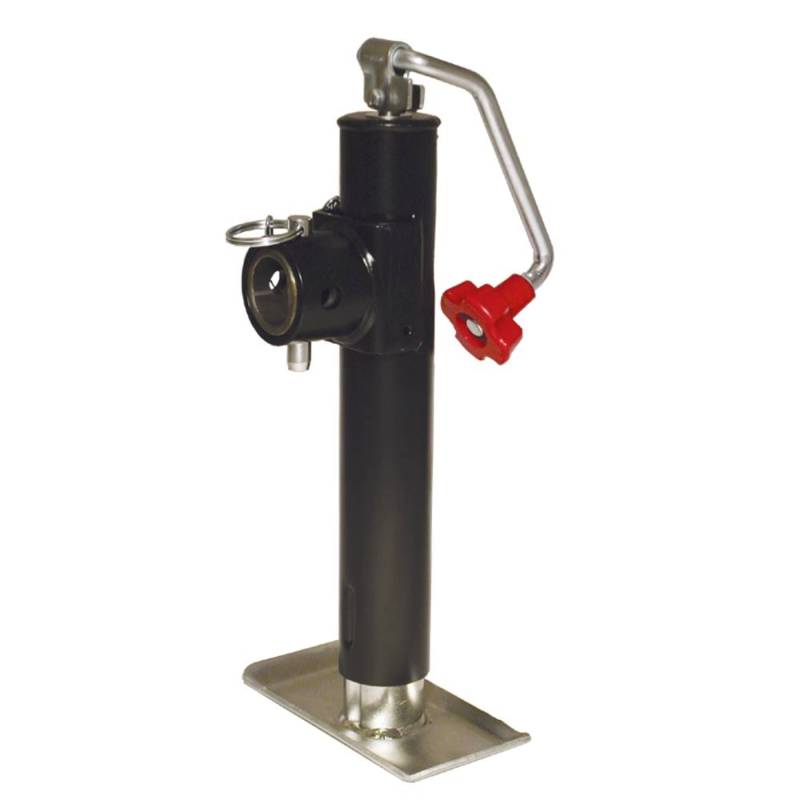

• Type: Implement Jack — Topwind Handle
• Lift Capacity: 2,000 lbs / Support: 3,000 lbs
• Lift Height: 10 Inches
• Mount Type: Weld-On Collar (Pipe Mount)
• Construction: Round Steel Tube — 2.25" OD / 2.0" ID
• Retracted Height: 11.0-14.8"
• Swivel Bracket: L-Bend with 1/2" x 2.3" Plunger Pin
• Foot Plate: 7.6" x 3.8" Included
• Threads: ACME Rolled — Anti-Friction Thrust Bearing
• Finish: Painted Outer / Zinc-Plated Inner
• Grease Fitting: Yes
• Weight: 6.6-11.2 lbs
• ASABE S485 Compliant
• Condition: New
APPLICATIONS:
• Agricultural Implement Trailers — Weld-On Pipe Mount
• Utility, Boat, Landscape, Cargo, Livestock Trailers
• ATV, Snowmobile, PWC Trailers — Pipe Mount
• Universal Fit — Any Round Pipe Tongue with Weld Collar
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
