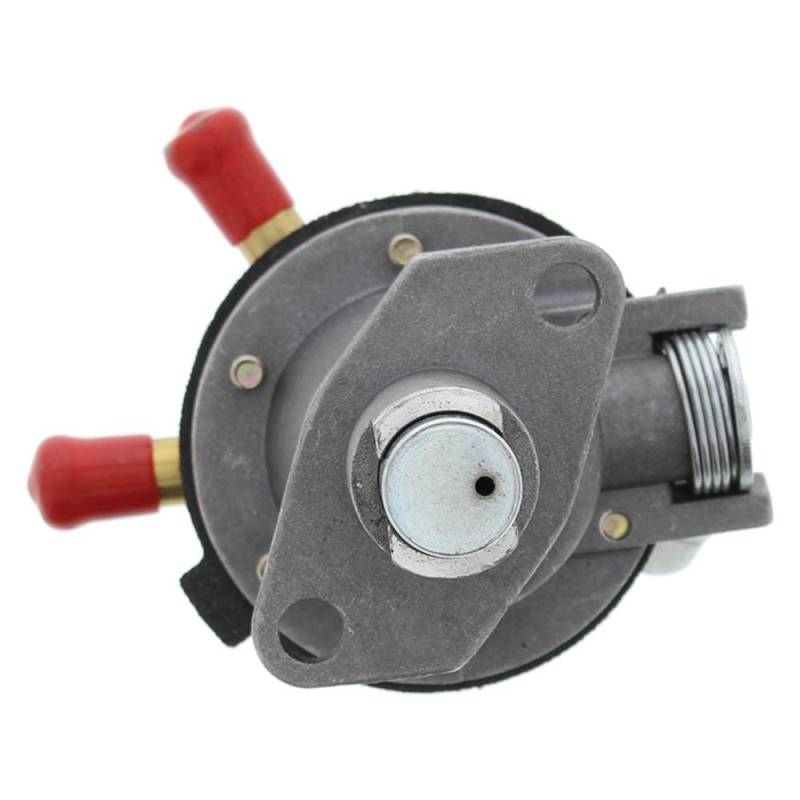

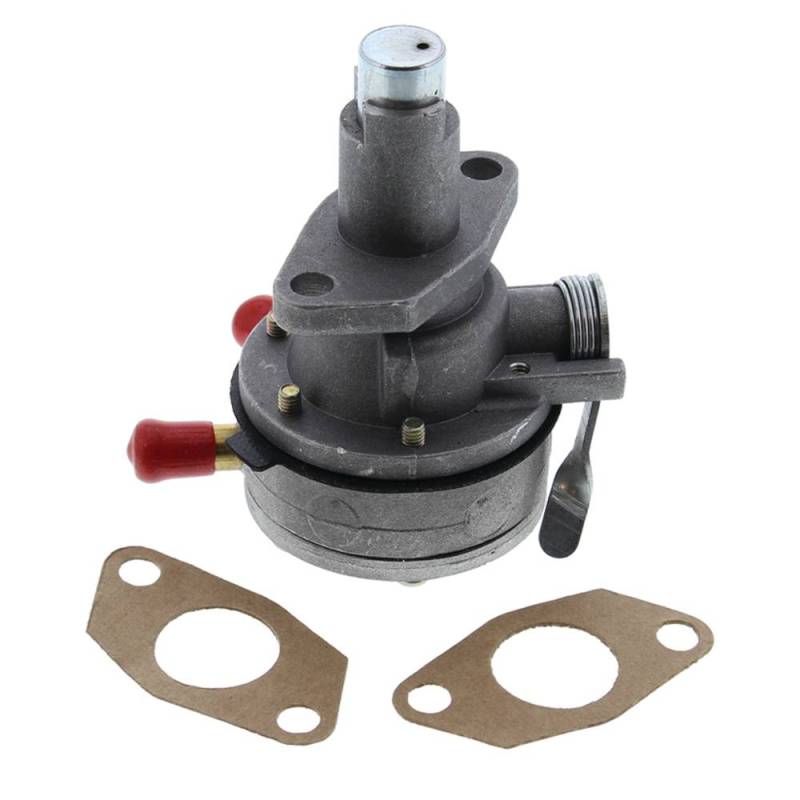

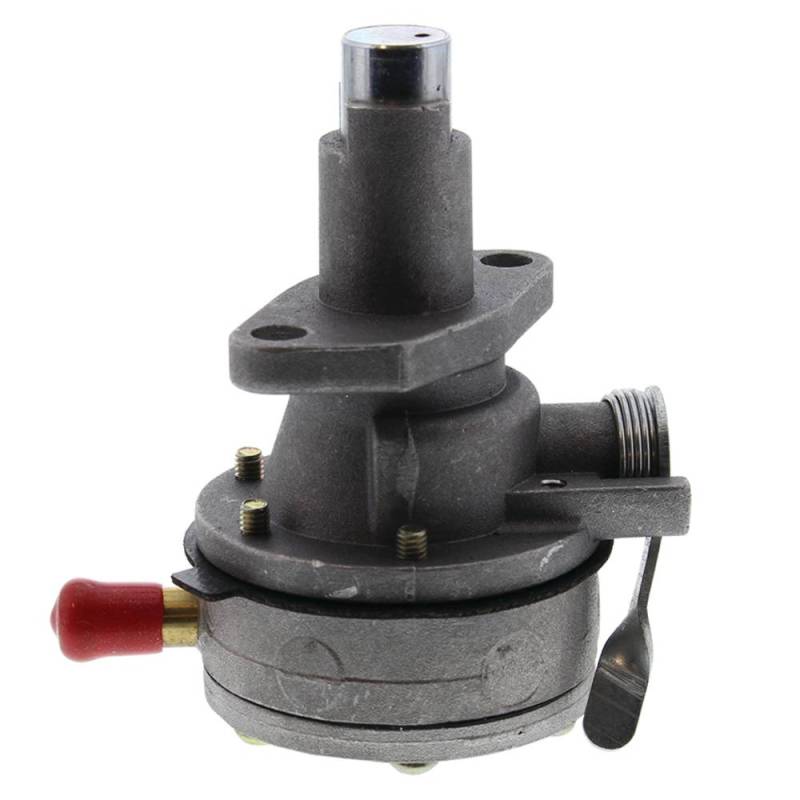

Fuel Lift Pump 2 Mounting Holes Gasket Included Compatible With Kubota V1903 V2203 V2403 Diesel

1903-3035A1
Kubota :
• 16604-52032 (Fuel Pump Assembly — Current Part Number)
• 16604-52030 (Fuel Pump Assembly — Original Part Number)
• 16605-52032 (Fuel Pump Assembly — Cross Reference)
• 19844-52031 (Fuel Pump Assembly — Alternate)
• 1G961-52030 (Fuel Pump Assembly — Cross Reference)
• 1660452032 / 1660452030 / 1660552032 / 1984452031 (No-Dash Format)

:
• Stens 1903-3035 / Atlantic Quality Parts (Fuel Pump)
• Complete Tractor 1903-3035 (Fuel Pump — Kubota V1903 / V2203 / V2403)
• Total Power Parts 1903-3035 (Fuel Pump)
• ZACHAGER / Haiyazhma (Fuel Pump — Kubota V2203)
• JEENDA (Fuel Pump — Kubota 03 Series)

Product Specifications:
• Type: Fuel Lift / Transfer Pump — Mechanical
• Mounting Holes: 2
• Gasket: Included
• Engine Compatibility: Kubota V1903 (1.9L) / V2203 (2.2L) / V2403 (2.4L)
• Engine Configuration: 4-Cylinder Indirect Injection Diesel
• Bore Range: 80-87mm / Stroke Range: 92.4-102.4mm
• Mounting: Direct Bolt-On Replacement
• Function: Mechanical Fuel Transfer — Injection Pump Supply
• Application: Kubota Tractors / Excavators / Loaders / Bobcat Equipment

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $134.17
Sale: $76.67
Save: 43%
Save: $57.50
Qty:
Free Shipping!

Description

Kubota V1903 Engine (4-Cylinder 1.9L Diesel — 39 HP):
• Bore: 80.0mm / Stroke: 92.4mm / Displacement: 1.857L
• Compression Ratio: 23.0:1 / Max Speed: 3000 RPM
• Injection: Mini Pump / Throttle Type Nozzle
• Used in: Skid Steers, Excavators, Lifts, Tractors, Industrial Equipment

Kubota V2203 Engine (4-Cylinder 2.2L Diesel — 46 HP):
• Bore: 87.0mm / Stroke: 92.4mm / Displacement: 2.197L
• Compression Ratio: 23.0:1 / Max Speed: 3000 RPM
• Used in: Kubota L-Series Tractors, Bobcat 773 / S175 / S185 Skid Steers
• Also used in: Bobcat 334 / 341 Excavators, Thomas T173 / T183 Skid Steers

Kubota V2403 Engine (4-Cylinder 2.4L Diesel — 48 HP):
• Bore: 87.0mm / Stroke: 102.4mm / Displacement: 2.434L
• Compression Ratio: 23.0:1 / Max Speed: 2800 RPM
• Used in: Kubota KX161-3 Excavator, L3540 / L3940 / L4240 Tractors
• Also used in: Bobcat S205 / T180 Skid Steers, SVL75 Compact Track Loader

Common Equipment Applications:
• Kubota L-Series: L3240 / L3540 / L3940 / L4240 Utility Tractors
• Kubota KX-Series: KX121-3 / KX161-3 Mini Excavators
• Kubota R-Series: R520 / R520S Compact Wheel Loaders
• Kubota SVL-Series: SVL75 / SVL90 Compact Track Loaders
• Bobcat Skid Steers: 773 / S175 / S185 / S205 / T140 / T180
• Bobcat Excavators: 334 / 341
• Thomas Skid Steers: T173 / T183
• Generator Sets and Industrial Power Units
