OEM PART NUMBERS:
• CNH/Case IH: 4713560 / 5103175 / 5119164 / 5119165 / 5119875 / 5122028 / 5136682
• CNH/Case IH: 5167933 / 5167937 / 5197980 / 84478095 / K5167937
• CNH/New Holland: 87289219 / 87345759 / 87716690 / 87716719 / 97345759 / 9973689 / B513160
• LuK: 231-0089-10 / 331-0220-10 / 410-0025-40 / 500-0459-00 / 500-1292-40 / 631200110
SPECIFICATIONS:
• Type: Double (Dual Stage) Clutch Kit
• Disc Diameter: 12 Inches (305mm)
• Spline Count: 16 (Transmission Disc) / 10 (PTO Disc)
• Inner Diameter: 40mm
• Bolt Count: 6
• Lever Count: 6
• Material: Cast Iron

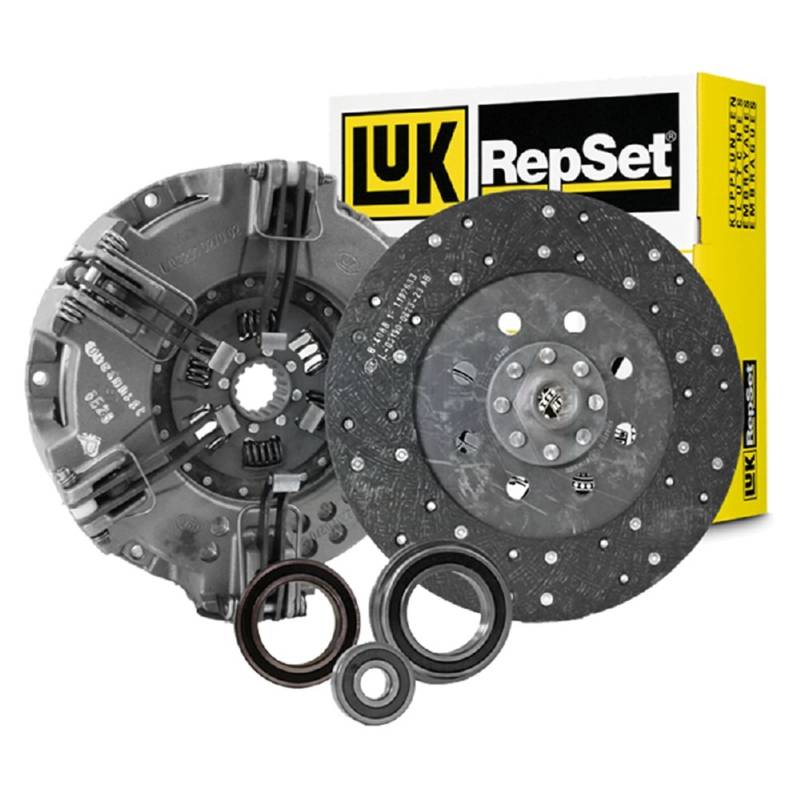

• Kit Includes: Pressure Plate Assembly, Transmission Disc, PTO Disc
• Condition: New
APPLICATION:
• JX70U / JX80U / JX90U / JX95 (2002-2007)
• JX1070U / JX1080U / JX1090U (2007-2013)
• Farmall 85U / 85C / 90 / 95 / 95C / 105C / 105U
• TL70 / TL80 / TL80A / TL90 / TL90A / TL100 / TL100A
• T5040 / T5050 / T5060 / TD95D / TD5050
• 4835 / 5635 / 6635 / 7635
12 Inch Dual Stage Clutch Kit - Case IH JX / Farmall / New Holland TL / T5 / 35-Series Tractors
Brand new 12-inch dual stage (double) clutch kit designed for Case IH JX-series utility tractors (JX70U through JX1090U), Farmall compact utility tractors (85U, 85C, 90, 95, 95C, 105C, 105U), and New Holland TL-series (TL70 through TL100A), T5-series (T5040, T5050, T5060), TD-series (TD95D, TD5050), and 35-series (4835, 5635, 6635, 7635) tractors. Features 16-spline transmission disc and 10-spline PTO disc with 6-bolt, 6-lever cast iron pressure plate assembly. Direct OEM replacement for CNH 5167937, 87345759, 84478095, and LuK 631200110, 231-0089-10.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
