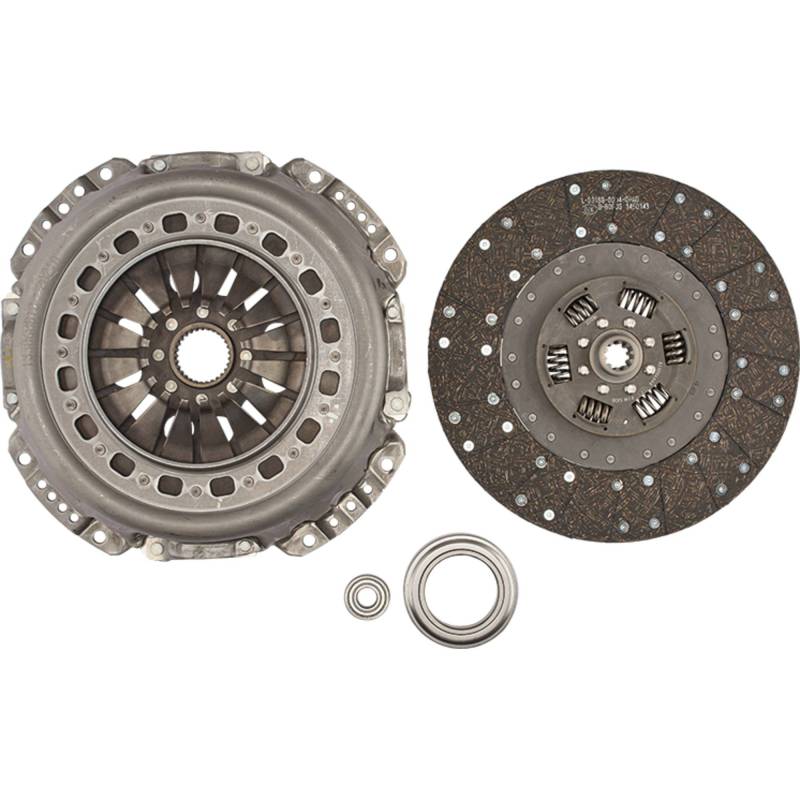

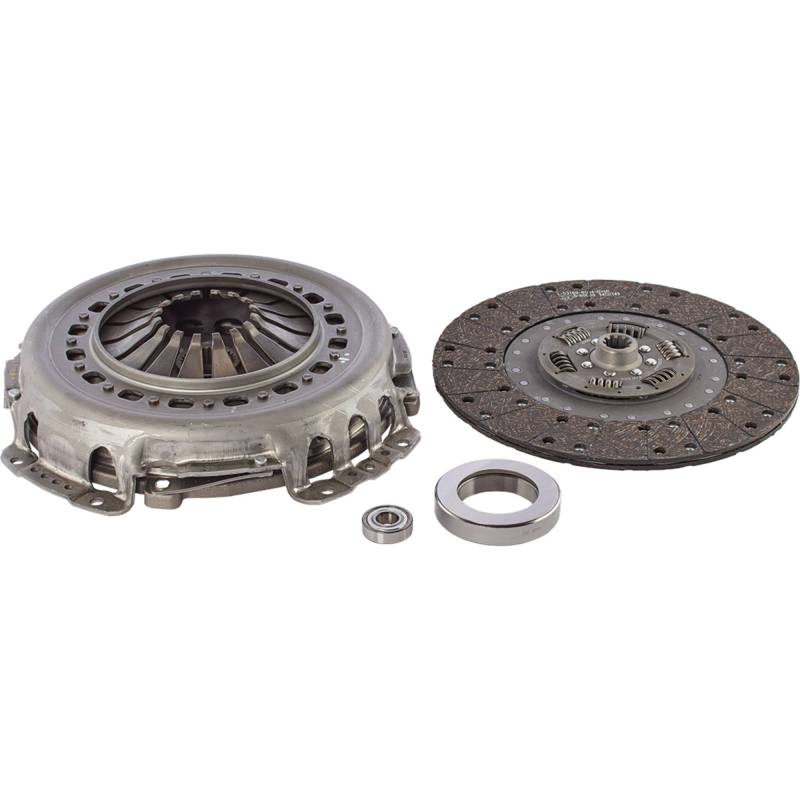

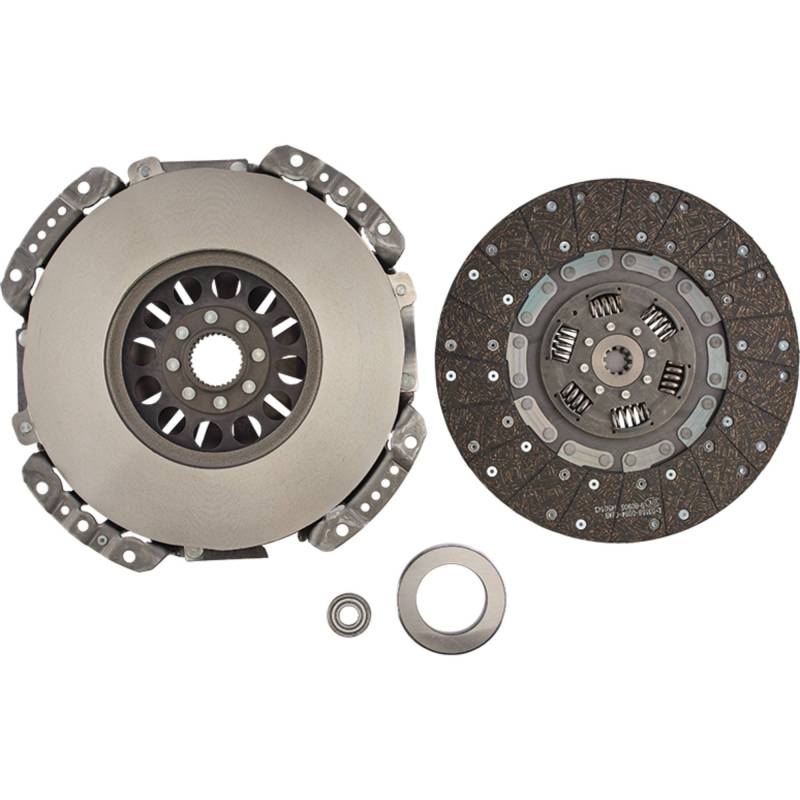

Clutch Kit Compatible With New Holland Tn70 Tn70a Tn70d Tn75 Tn75a Tn75d Tn75s Tn75sa Case Ih

OEM PART NUMBERS:
• NH/Case: 5196818 (Kit), 5197980 (Kit)
• NH/Case: 47134874, 47134874R, 47134882, 47134898, 47135670
• NH/Case: 82824592, 84317689, 84342956
• NH/Case: 87289219, 87345759, 87541561, 87541562
• NH/Case: 87732485, 87732502, 87732503
• NH/Case: 5097877, 5097880, 5097881, 5097958
• NH/Case: 5103175, 5119164, 5119165, 5119875
• NH/Case: 5122028, 5136682, 5157318, 5176450
• NH/Case: 5186555, 5196819, 9973689, 9976506
• NH/Case: B513160, K51336186, K5197980, K87345759
• LuK: 228-0136-10, 328-0332-10, 410-0025-40
• LuK: 500-0459-00, 500-1292-40, 628308710

SPECIFICATIONS:
• Disc OD: 11" (280mm) | Disc Spline: 14 (Trans) / 10 (PTO)
• Type: Double | PP: 6 Bolt, 6 Lever, Cast Iron
• Trans Disc: Captive 14-Spline, 5-Pad Dampened Cerametallic
• PTO Disc: Loose 10-Spline, 4-Pad Rigid Cerametallic
• PTO Release: 115mm OD x 75mm ID x 20mm
• Trans Release: 90mm OD x 50mm ID x 21.6mm
• Pilot Bearing: 47mm OD x 17mm ID
• Includes: PP, Trans Disc, PTO Disc, 2 Release Bearings, Pilot Bearing

NEW HOLLAND / CASE IH APPLICATIONS:
• TN70: TN70, TN70A, TN70D, TN70DA, TN70S, TN70SA, TN70VA
• TN75: TN75, TN75A, TN75D, TN75DA, TN75S, TN75SA, TN75V, TN75VA, TN75N, TN75NA
• Case IH: JX1075V

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
