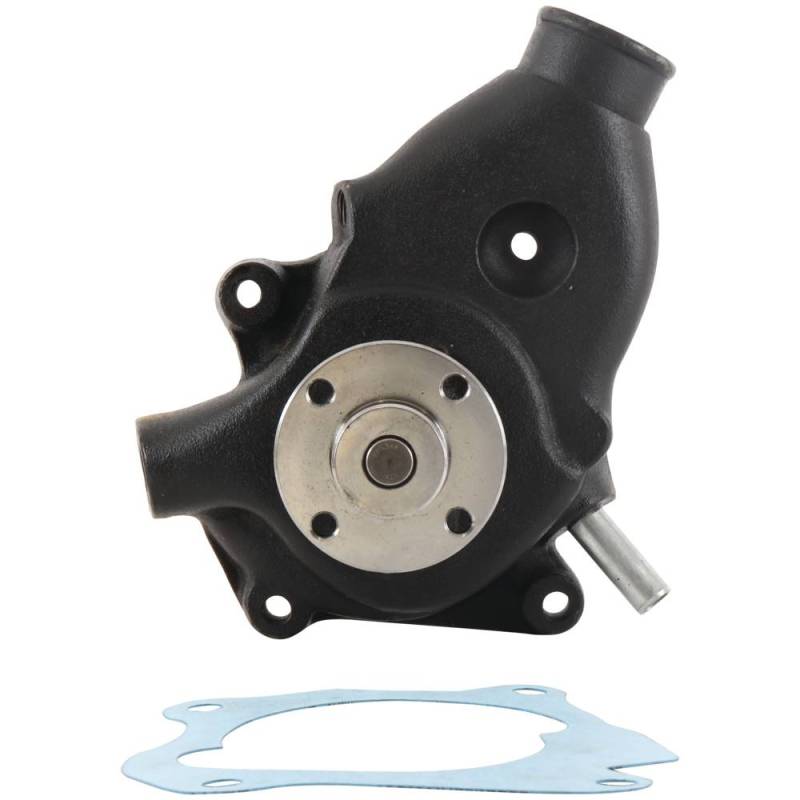

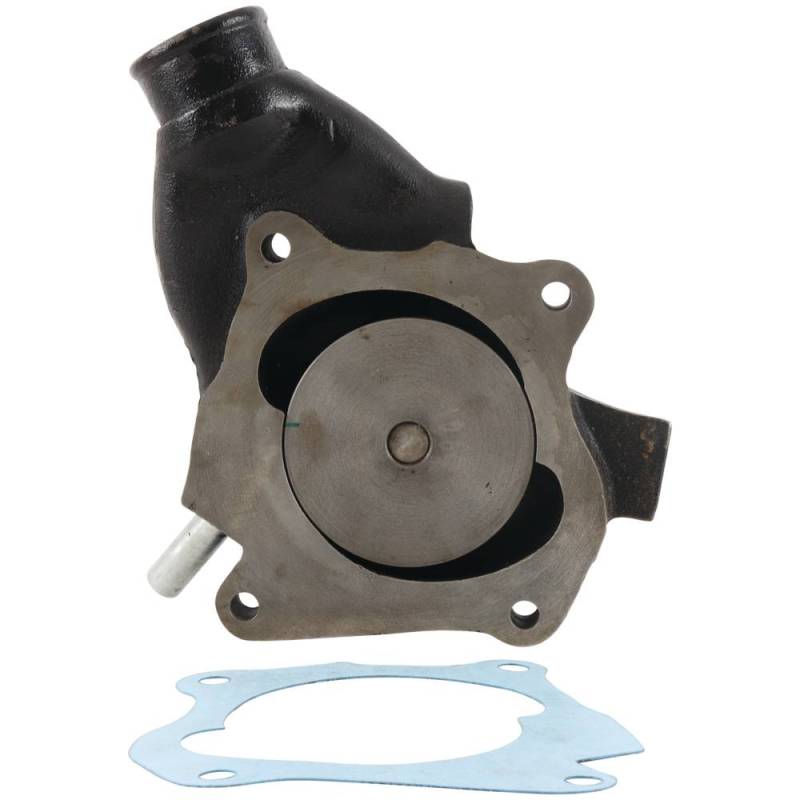

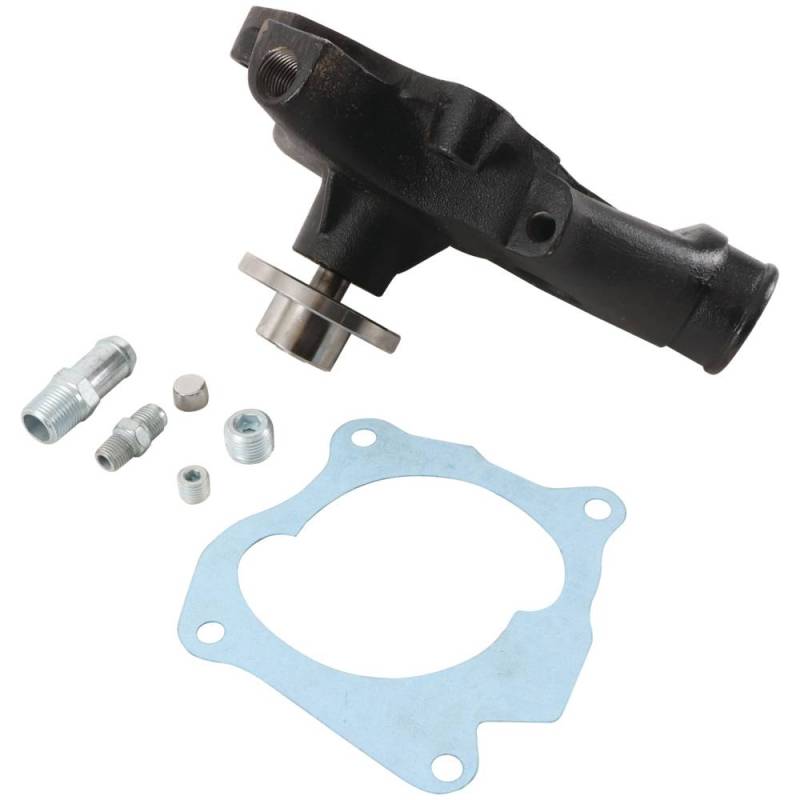

Water Pump Compatible With 1960-1977 John Deere 3010 3020 4000 4010 4020 4230 Row-Crop Tractor Gas

OEM Part Numbers:
• John Deere: AR45330 / SE500920 / AR44378 / AR34855 / AR31262 / AR26380 / AR31894 / AR40921

SPECIFICATIONS:
• Drive Type: Single Groove V-Belt Pulley
• Gasket: Included
• Hub: Included
• Pulley: NOT Included
• Weight: Approx. 11 lbs
• Note: Cast iron pulley mounts directly; stamped steel pulley requires spacer R52833

ENGINE SPECIFICATIONS:
• 4-Cyl Gas: Bore 4.00"-4.25" x Stroke 4.00" CR 7.5:1 (LP 9.0:1)
• 4-Cyl Diesel: Bore 4.13"-4.25" x Stroke 4.75"-4.76" CR 16.4:1-16.5:1
• 6-Cyl Gas: Bore 4.00"-4.25" x Stroke 4.00"-4.25" CR 7.5:1
• 6-Cyl Diesel (404ci): Bore 4.25" x Stroke 4.75" CR 16.7:1

SUPERSESSION CHAIN:
• AR26380 → AR31262 → AR34855 → AR44378 → AR45330 / SE500920 (Current)

APPLICATION SUMMARY:
• 4-Cyl: 3010, 3020 (55-77HP)
• 6-Cyl: 4000, 4010, 4020, 4230 (84-107HP)
• Gas, Diesel, and LP-Gas variants
• Production years 1960-1977
