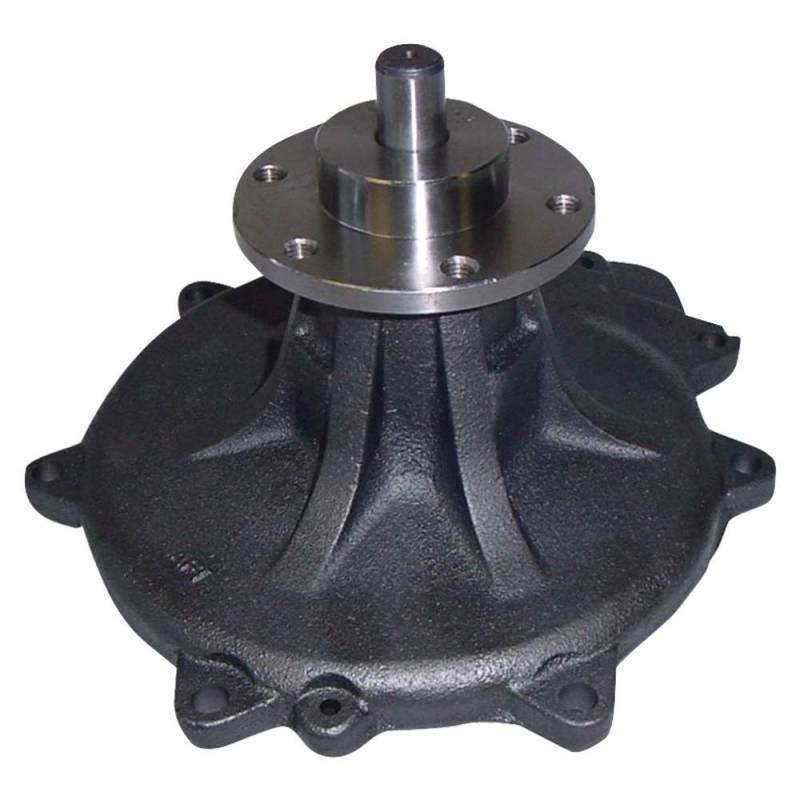

Water Pump Compatible With International Harvester Ih 5088 5288 5488 Mfwd Tractor Dt436 Dt466 6 Cyl

1706-6206A3
International Harvester :
• 332233R92 • 356223R1 • 602462C93
• 609459C93 • 609462C93 • 609469C92
• 619076C92 • 673162C93 • 673623C92
• 674795C92 • 687161C91 • 687366C91
• 687706C91 • 688870C1 • 688871C1
• 749908C91 • 749909C91

Cross-Reference Numbers:
• 672644C93 • 672644C95 • 673162C1
• 673162C91 • 673162C94 • 673623C91
• 675806C1 • 675806C2 • 675806C3
• 677415C93 • 677856C2 • 1928145C1

Related Parts (Different Application):
• 3132739R92 — D179/D206/D239/D246 Small Diesel (NOT Interchangeable)
• 735099C91 — Case IH 484-895 Utility Series (Different Platform)

Product Specifications:
• Type: Engine Water Pump with Pulley and Hub
• Pulley: Single/Double Groove V-Belt
• Impeller: 8-Vane Cast Iron
• Hub Height: 4.4 inch (112mm)
• Mounting Holes: 8-Bolt Pattern
• Hub Holes: 6-Bolt
• Material: Cast Iron Housing
• Weight: 16.5 lbs (7.5 kg)
• Gasket: NOT Included (Order Separately)
• Engine: D312/D360/D414/DT414/DT436/DT466/DTI-466C 6-Cyl Diesel

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Nickel which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $306.02
Sale: $174.87
Save: 43%
Save: $131.15
Qty:
Free Shipping!

Description

IH 66-Series Tractors (1971-1976):
• 666 — D312 6-Cyl Diesel — 70 HP
• 686 — D312/D360 6-Cyl Diesel — 70-76 HP
• 766 — D360 6-Cyl Diesel — 100 HP

IH 86-Series Tractors (1976-1981):
• 886 — D360/DT360 Turbo — 101 HP
• 966 — D414 6-Cyl Diesel — 105 HP
• 986 — DT414 Turbo — 105 HP

IH 1000-Series Row Crop (1971-1981):
• 1066 — DT414 Turbo — 125 HP — 1971-1976
• 1466 — DT436 Turbo — 145 HP — 1971-1976
• 1486 — DT436 Turbo — 162 HP — 1976-1981
• 1566 — DT436 Turbo — 170 HP — 1976-1981

IH 2+2 Articulated Tractors (1979-1985):
• 3388 — DT436 Turbo — 130 HP
• 3588 — DT436 Turbo — 150 HP
• 3688 — DT436 Turbo — 170 HP
• 3788 — DT466 Turbo — 170 HP

IH 4WD Tractors (1981-1985):
• 4366 — DT466 Turbo — 225 HP
• 4386 — DT466 Turbo — 250 HP

IH MFWD Series (1981-1985):
• 5088 — DT436 Turbo — 128 HP
• 5288 — DT466 Turbo — 162 HP
• 5488 — DT466 Turbo — 187 HP

IH 6000/7000-Series (1982-1985):
• 6388 — DT466 — 188 HP
• 6588 — DT466 — 200 HP
• 6788 — DT466 — 240 HP
• 7288 — DTI-466C Intercooled — 235 HP (19 units built)
• 7488 — DTI-466C Intercooled — 265 HP (16 units built)

IH Hydro Series:
• Hydro 70 — D312 — 1973-1976
• Hydro 186 — DT436 — 1976-1981

Engine Specifications:
• D312 — 312ci 6-Cyl Diesel — 70 HP
• D360 — 360ci (5.9L) 6-Cyl Diesel — 76-105 HP
• D414/DT414 — 414ci (6.8L) 6-Cyl Turbo — 105-125 HP
• DT436 — 436ci (7.1L) 6-Cyl Turbo — 130-170 HP
• DT466 — 466ci (7.6L) 6-Cyl Turbo — 162-250 HP
• DTI-466C — 466ci Intercooled — 235-265 HP

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 18.9 lbs.
  • W10.7000” x H10.2000” x L12.3000”
  • Free Shipping!
