Bad Boy :
• 022-8049-00 (11x6.00-5 Pneumatic Front Assembly — MZ / MZ Magnum / Walk-Behind)
• 022-8055-00 (11x6.00-5 No-Flat Front Assembly — Same Models)
• 022-8051-00 (11x4.00-5 Pneumatic — Earlier Version / Now Obsolete)
:
• Rotary 15753 (Semi-Pneumatic Flat-Free 11x6.00-5 — Orange)
NOT Compatible With:
• Bad Boy Outlaw Series — Uses different wheel (022-1050-00 / Stens 175-750)
• 3/4 inch bore equipment — Different bore specification
• 13x6.50-6 tire size — Different wheel size
• Offset hub designs — This has 5-3/4 inch centered hub
Product Specifications:

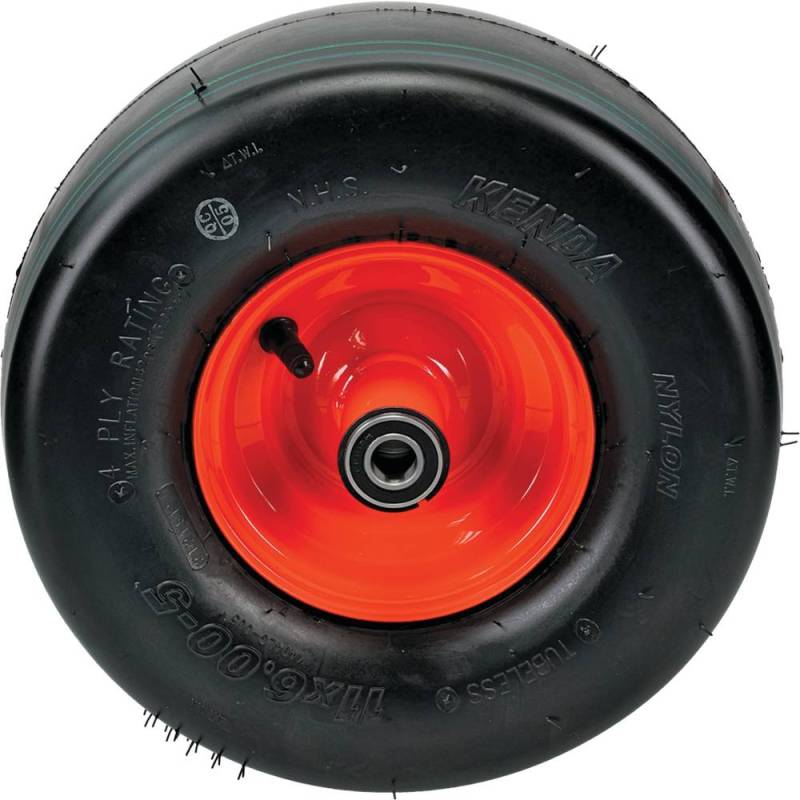

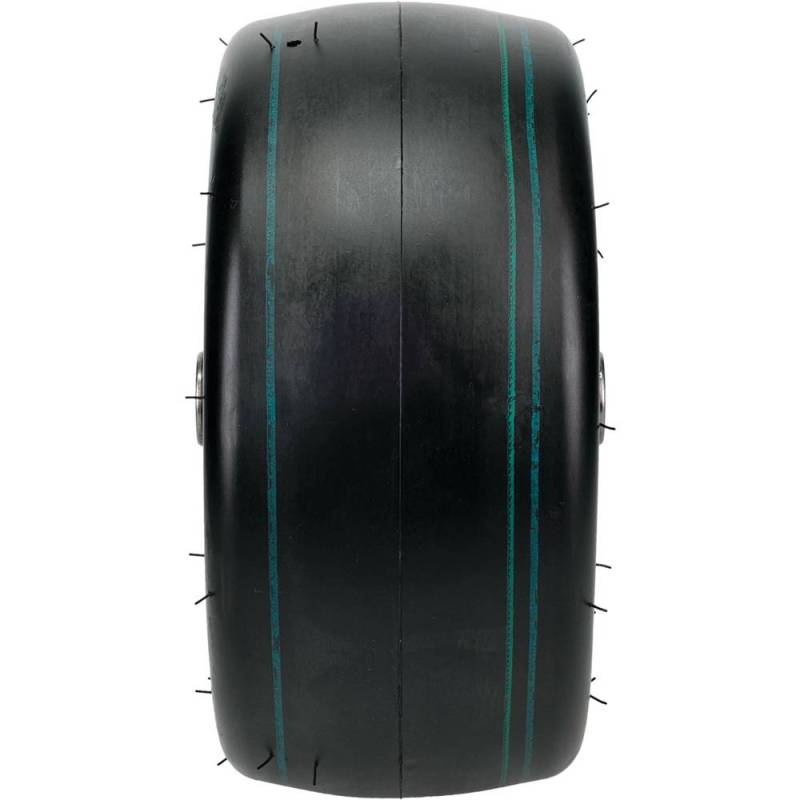

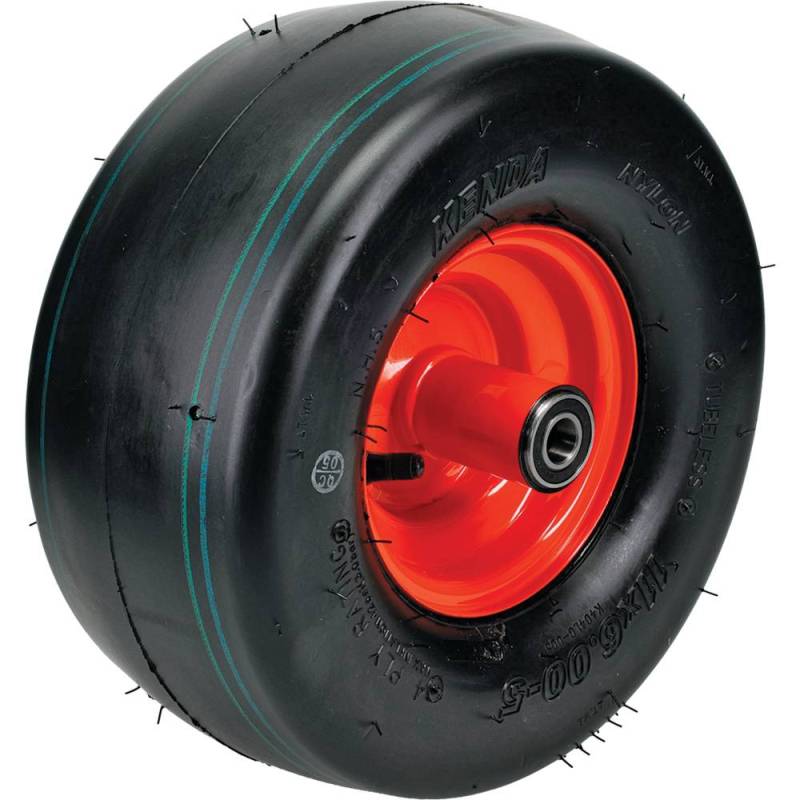

• Type: Pneumatic Wheel Assembly (Air Filled)
• Tire Size: 11x6.00-5
• Tread Pattern: Smooth
• Tire Type: Pneumatic Tubeless (4-Ply Rating)
• Overall Diameter: Approximately 11 inch
• Tire Width: Approximately 6 inch
• Rim Diameter: 5 inch
• Rim Material: Steel (Orange Hub)
• Bore Size: 5/8 inch (Axle Bore)
• Hub Length: 5-3/4 inch (Centered)
• Bearings: Included — Sealed Ball Bearings (99502HNR)
• Tire Pressure: 42 PSI Maximum
• Load Rating: Approximately 450 lbs Per Wheel
• Weight: Approximately 17 lbs Per Wheel
• Application: Bad Boy MZ / MZ Magnum / Walk-Behind — Front Caster Wheels
