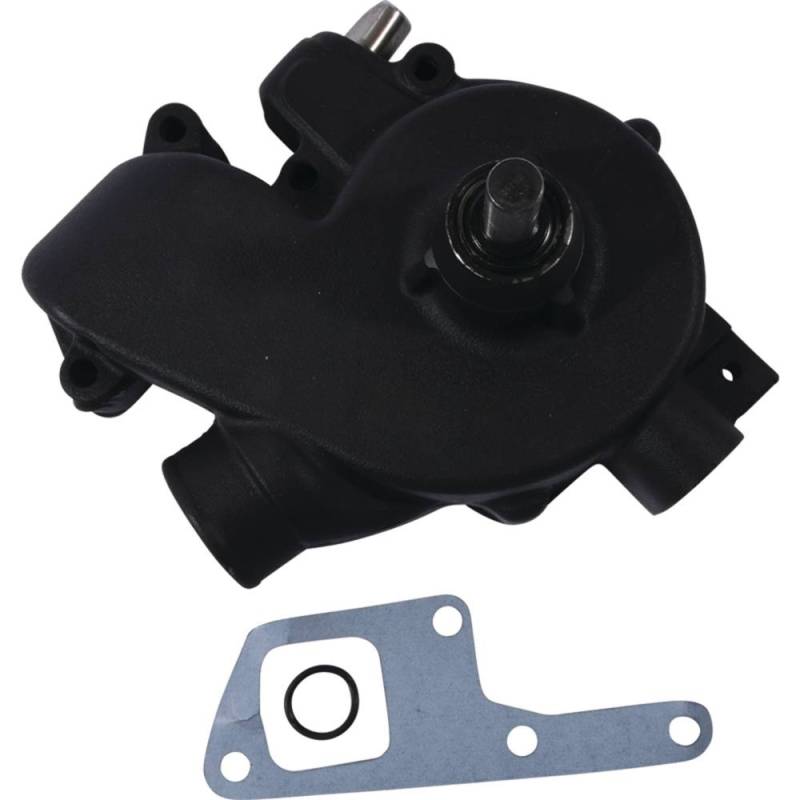

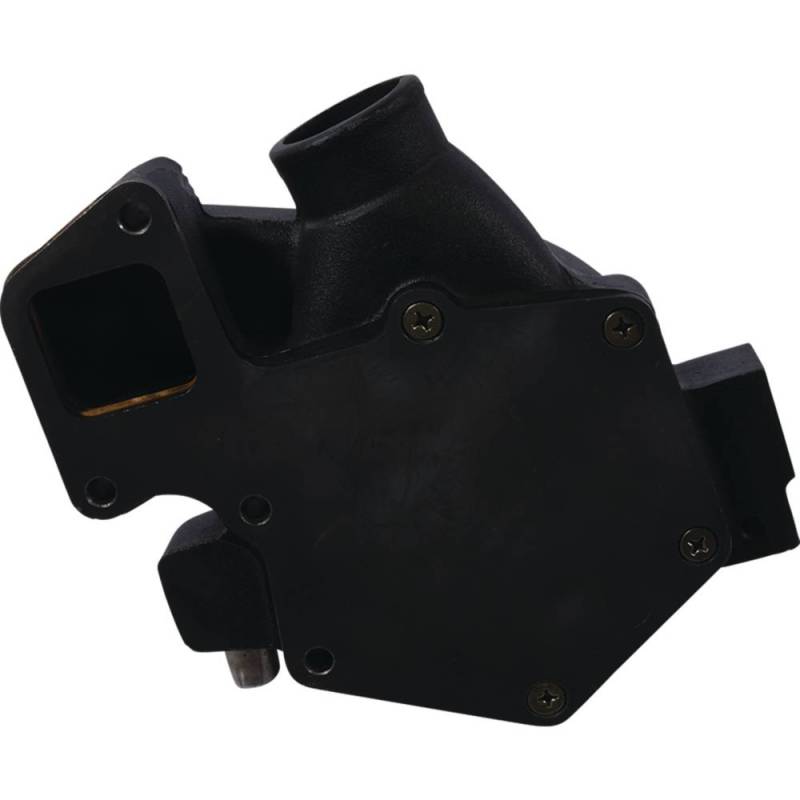

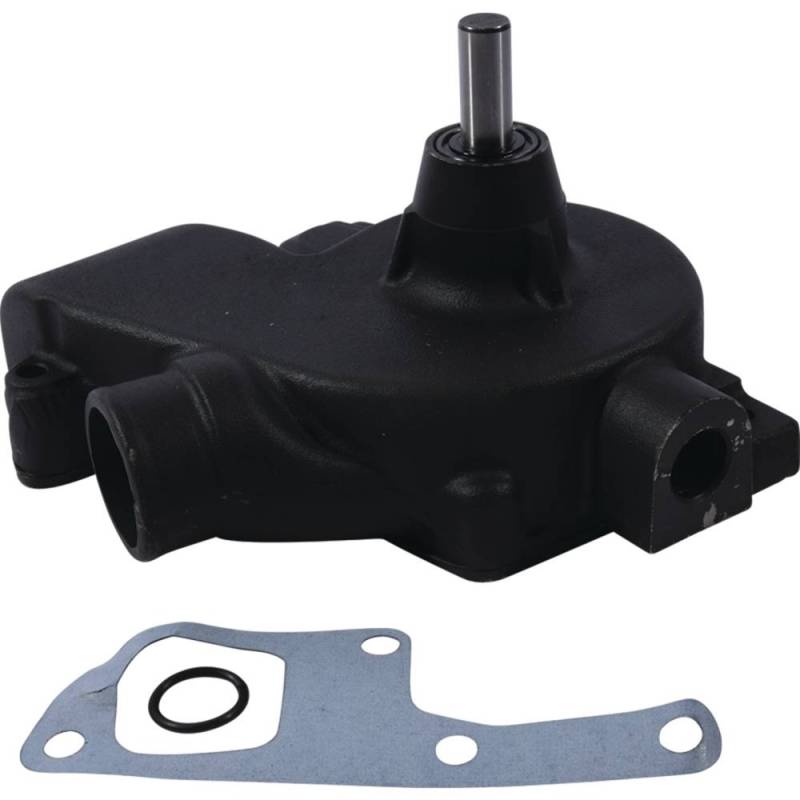

Water Pump Compatible With 1969-1997 John Deere 4320 4520 4620 7020 5090Eh 5090El 5400 5425N 5725N

OEM Part Numbers:
• John Deere: RE20024 / AR49655 / AR51063 / AR49649 / SE500914 / TY6758

SPECIFICATIONS:
• Drive Type: Belt-Driven
• Gasket: Included
• Pulley: NOT Included
• Weight: 23.36 lbs

ENGINE SPECIFICATIONS:
• 6-404D/T: Bore 4.25" x Stroke 4.75" 6.6L (404ci) 6-Cyl CR 16.4:1
• 6-404TI (7020): Bore 4.25" x Stroke 4.75" CR 15.7:1 (Intercooled)

SUPERSESSION CHAIN:
• AR49655 → AR51063 → RE20024 (Current) / SE500914 / TY6758

SERIAL NUMBER RESTRICTIONS:
• 4520: Engine SN 303579+
• 7020: Engine SN 335845 and below

APPLICATION SUMMARY:
• Classic: 4320, 4520, 4620, 7020 (115-146HP)
• Modern: 5090EH/EL, 5400, 5425N, 5725N, 6403

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Nickel which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
