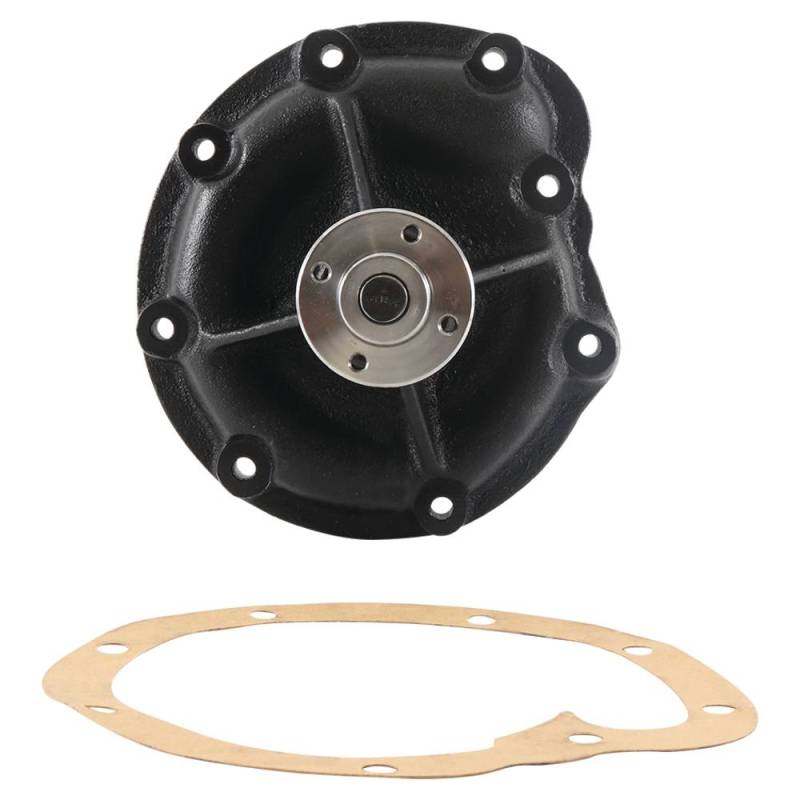

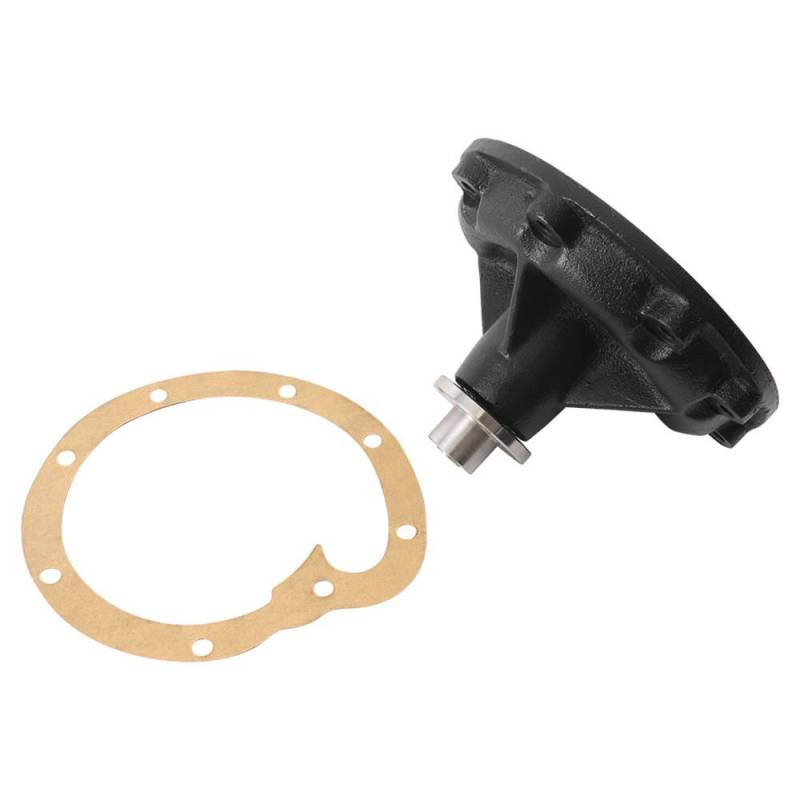

Water Pump Single V-Belt Pulley Compatible With Case Ih 385 395 380B D179 3 Cyl Diesel 484 885 895

1706-6204A7
Case IH :
• 3132739R92 • 3132739R93 • 3132739R94
• 3136053R91 • 3136053R92 • 3136053R93
• 735099C91 • 735102C91

Related Water Pump Parts (Different Application):
• 84624C1 — Double Groove Pulley Variant (NOT Interchangeable)

Product Specifications:
• Type: Engine Water Pump with Pulley
• Pulley: Single Groove V-Belt

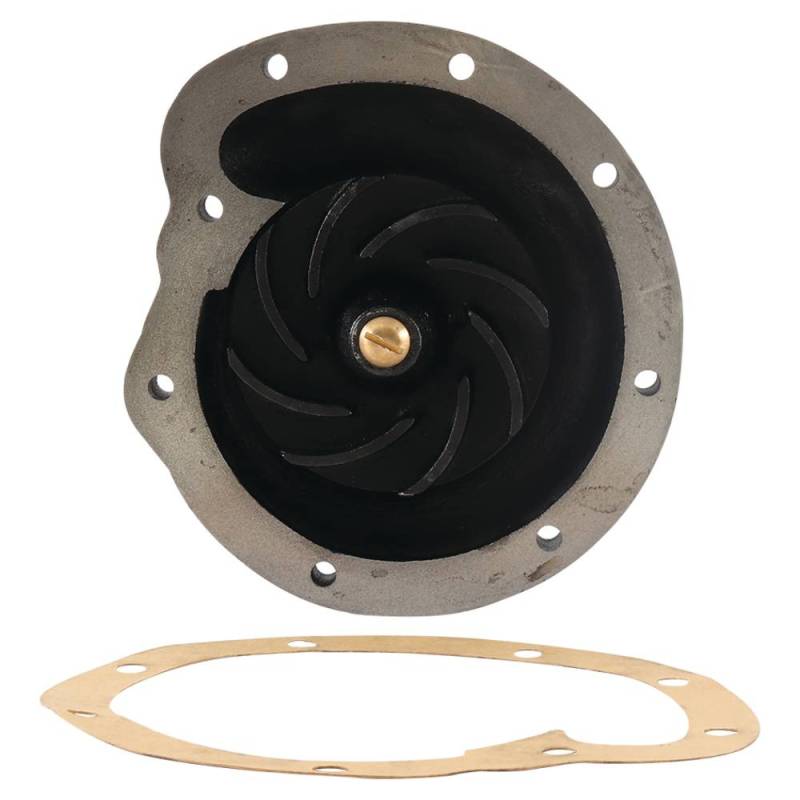

• Impeller: 8-Vane Heavy Duty Cast
• Impeller Diameter: 4.4 inch (112mm)
• Bearing: Sealed Ball Bearing Assembly (100Cr6 Steel)
• Gasket: Included (High Temperature Rated)
• Material: Cast Iron Housing
• Weight: 8-12 lbs Approximate
• Shaft Seal: Mechanical Face Seal
• Engine Compatibility: D179/D206/D239/D246/DT239 Diesel
• Application: Case IH 380B-895, 3220-4240 Utility Tractors with Single V-Belt Pulley

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Nickel which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $215.29
Sale: $123.02
Save: 43%
Save: $92.27
Qty:
Free Shipping!

Description

Case IH 3-Cylinder Models (D179 Engine):
• 380B — 50 HP — 1985-1991
• 385 — 56 HP
• 395 — 65 HP

Case IH 84-Series (Pre-1985 IH Design):
• 484 — D206 4-Cyl Diesel — 1982-1985
• 584 — D246 4-Cyl Diesel — 1982-1990
• 684 — D246 4-Cyl Diesel — 1982-1990
• 784 — D246 4-Cyl Diesel — 1982-1990
• 884 — DT239 Turbo — 130 HP — 1985+

Case IH 85/95-Series (Post-1985):
• 485 — D239 4-Cyl Diesel — 70 HP — 1985-1991
• 495 — D239 4-Cyl Diesel — 85 HP
• 585 — D246 4-Cyl Diesel — 90 HP
• 595 — D246 4-Cyl Diesel — 105 HP
• 685 — D246 4-Cyl Diesel — 115 HP
• 695 — D246 4-Cyl Diesel — 130 HP
• 885 — DT239 Turbo Diesel — 145 HP
• 895 — DT239 Turbo Diesel — 160 HP

Case IH Compact Utility (UK Doncaster):
• 3220 — D206 — 56 HP — 1992-2000
• 3230 — D206 — 59 HP — 1992-2000
• 4210 — D206 — 72 HP — 1991-1994
• 4230 — D239 — 84 HP — 1991-1997
• 4240 — D269 — 104 HP — 1991-1994

Engine Specifications:
• D179 — 179ci 3-Cyl Diesel — 50-65 HP
• D206 — 206ci (3.4L) 4-Cyl Diesel — 56-72 HP
• D239 — 239ci (3.9L) 4-Cyl Diesel — 70-85 HP
• D246 — 246ci (4.0L) 4-Cyl Diesel — 90-130 HP
• DT239 — 239ci Turbocharged — 130-160 HP
