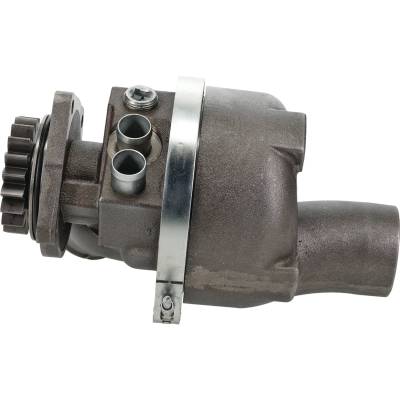

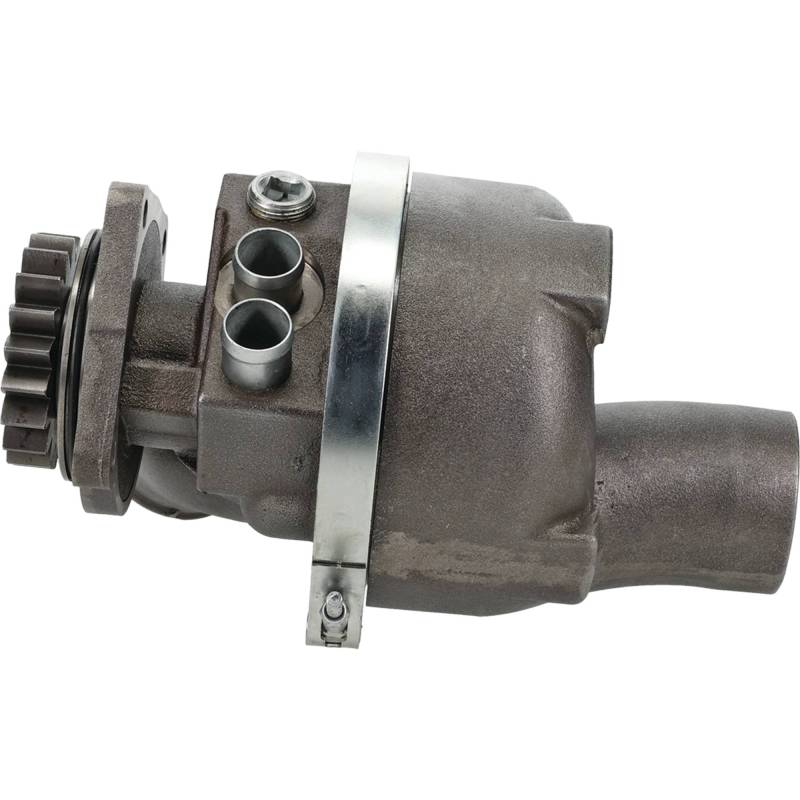

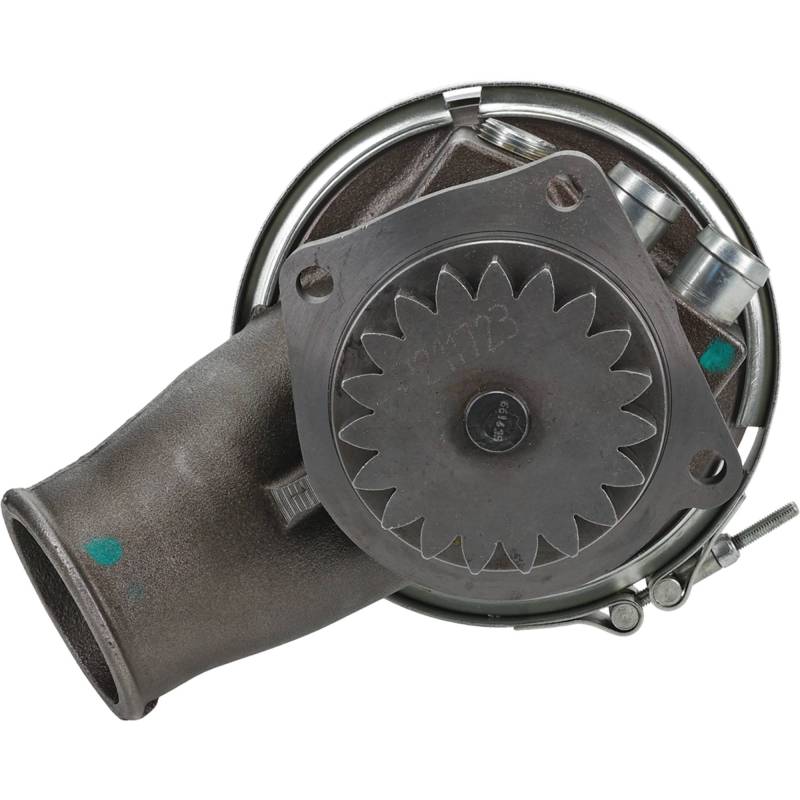

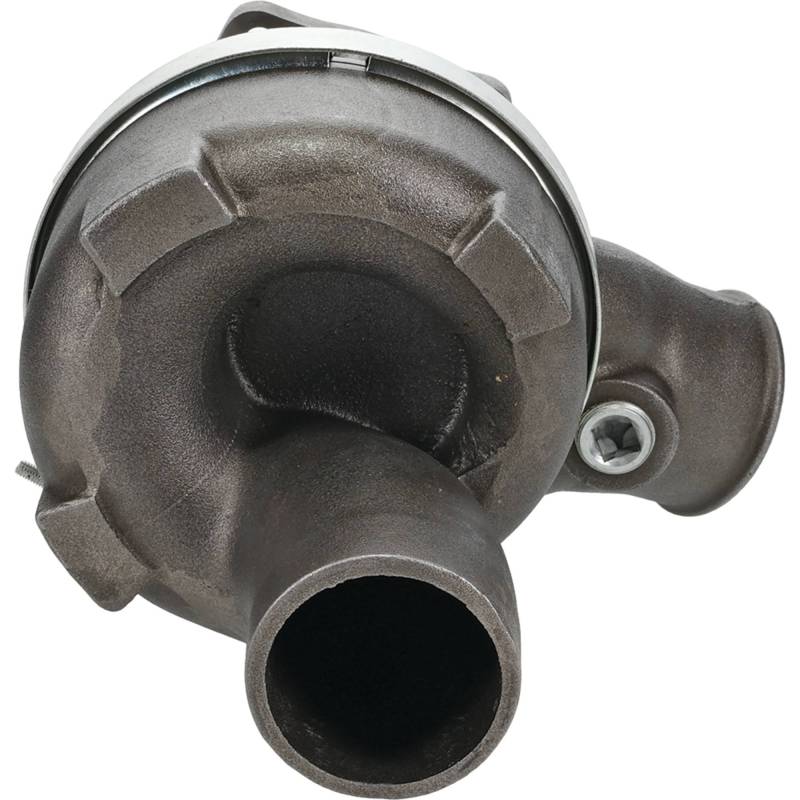

Water Pump Compatible With 2012-2025 John Deere 13.5L 19-Tooth 9330 9430 9530 9630 9410R 9460R 9510R

OEM Part Numbers:
• John Deere: RE545358 / RE549117 / SE501593 (Reman) / RE540306

PART SPECIFICATIONS:
• Weight: 31.2 lbs
• Dimensions: 12.5" L x 10.5" W x 7" H
• Drive Type: 19-Tooth Gear-Driven
• Gasket: Included
• Housing: Cast Iron
• Ports: 2 Tube + 2 Threaded

SUPERSESSION CHAIN:
• RE540306 → RE545358 → RE549117 (Current)
• SE501593 (Remanufactured Option)

APPLICATION SUMMARY:
• 4WD Tractors: 9330-9630T (325-630HP)
• R-Series: 9410R-9570RX (375-570HP)
• Combines: S680-S790
• Forage Harvesters: 7350-7480
• Cotton Pickers: 7760, CP690
• Engine: 6135H/6135HH 13.5L (Tier 3/4)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
