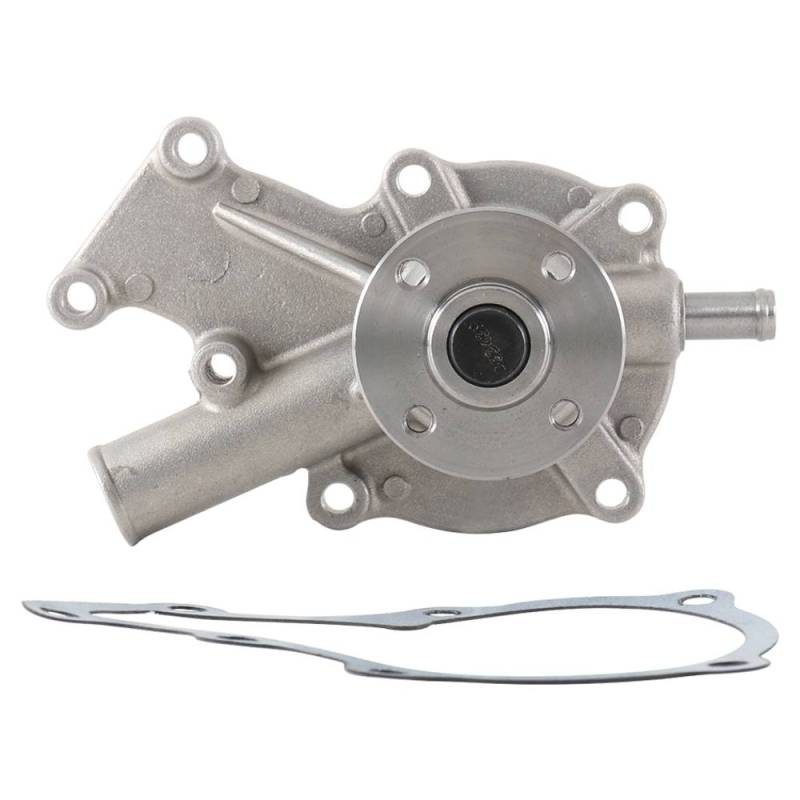

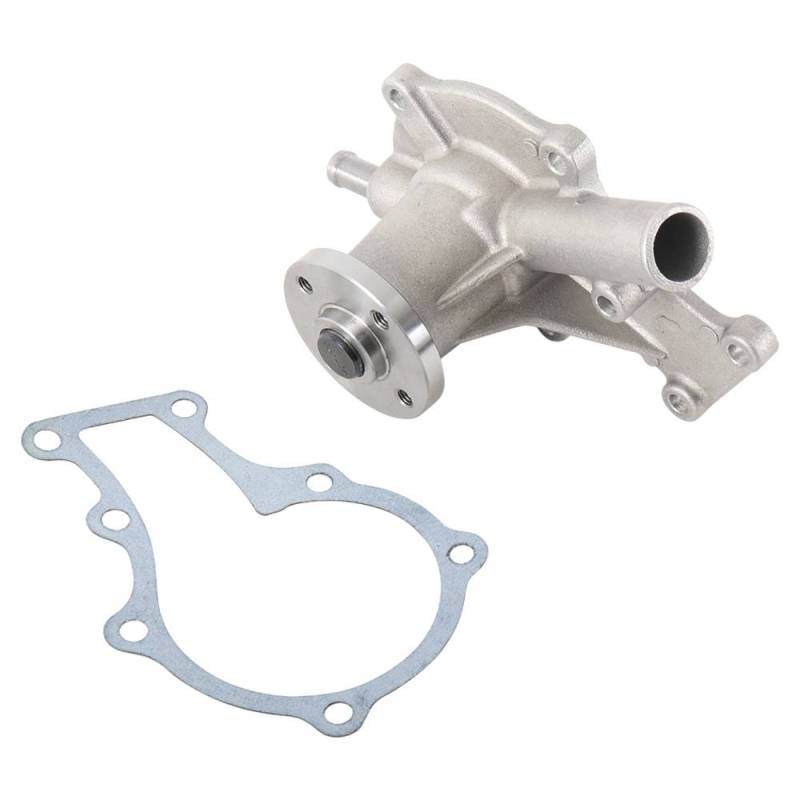

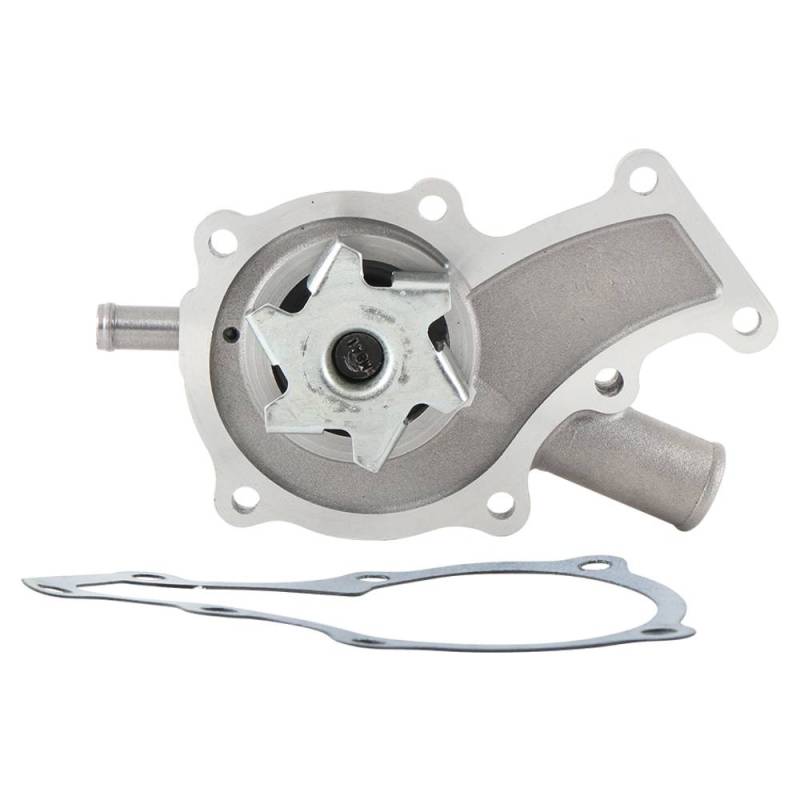

Water Pump Compatible With Kubota Bx2230d Bx2350d Bx2360 Bx2370 Bx2370-1 Bx2380 Bx23s Bx24d Bx25

1906-6237A1
Kubota :
• 1G470-73030 (Water Pump — Original Part Number)
• 1G470-73034 (Water Pump — Superseded Part Number)
• 1G470-73036 (Water Pump — Current Part Number)
• 1E051-73036 (Water Pump — Cross Reference)
• 1E051-73034 (Water Pump — Cross Reference)
• 19883-73030 (Water Pump — Cross Reference)
• 1G47073030 / 1G47073034 / 1G47073036 / 1E05173036 / 1E05173034 (No-Dash)

:
• Stens 1906-6237 / Atlantic Quality Parts (Water Pump)
• Complete Tractor 1906-6237 (Water Pump — Kubota BX Sub-Compact)
• DB Electrical (Water Pump — Kubota 1G470-73036)
• RAParts (Water Pump — Kubota BX-Series)

Product Specifications:
• Type: Water Pump — Engine Cooling System
• Drive Type: Pulley — Single Groove V-Belt
• Impeller Diameter: 56mm (2.2 Inches)
• Impeller Height: 16.5mm
• Hub: Included
• Gasket: Included
• Fits Engines: D722 (3-Cylinder 0.7L) / D902 (3-Cylinder 0.9L)
• Mounting: Direct Replacement
• Application: Kubota BX Sub-Compact Diesel Tractors (BX2230 / BX2350 / BX2360 / BX2370 / BX2380 / BX23S / BX24 / BX25)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Nickel which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $233.71
Sale: $133.55
Save: 43%
Save: $100.16
Qty:
Free Shipping!

Description

Kubota BX Sub-Compact Tractors (D722 Engine — 3-Cylinder 0.7L Diesel):
• BX2230D — 22 HP D722 3-Cylinder 0.7L Diesel 4WD (2004-2006)
• Engine: Bore 67.0mm / Stroke 68.0mm / Displacement 0.719L
• Compression Ratio: 24.0:1 / Max Speed: 3600 RPM

Kubota BX Sub-Compact Tractors (D902 Engine — 3-Cylinder 0.9L Diesel):
• BX2350D — 23 HP D902 3-Cylinder 0.9L Diesel 4WD (2006-2008)
• BX2360 — 23 HP D902 3-Cylinder 0.9L Diesel 4WD (2009-2013)
• BX2370 / BX2370-1 — 23 HP D902 3-Cylinder 0.9L Diesel 4WD (2013-2017)
• BX2380 — 23 HP D902 3-Cylinder 0.9L Diesel 4WD (2018-Present)
• BX23S — 21.6 HP D902 3-Cylinder 0.9L Diesel 4WD (2017-Present)
• BX24D — 23 HP D902 3-Cylinder 0.9L Diesel 4WD (2006-2009)
• BX25 — 23 HP D902 3-Cylinder 0.9L Diesel 4WD (2009-2013)
• BX25DLB / BX25DLB-1 — 23 HP D902 3-Cylinder 0.9L Diesel 4WD (2009-2013)
• Engine: Bore 72.0mm / Stroke 73.6mm / Displacement 0.898L
• Compression Ratio: 24.0:1 / Max Speed: 3600 RPM

Details

Shipping Information

  • Item Requires Shipping
  • 2.0 lbs.
  • W3.7500” x H2.5000” x L6.7500”
  • Free Shipping!
