Hustler :
• 605113 (Pneumatic Caster Wheel Assembly — Raptor X / XL / XD / XDX)
Toro :
• 130-0736 (Pneumatic Caster Wheel Assembly — TimeCutter SS / MX Series)
:
• Rotary 16170 / ROT-16170 (Wheel Assembly 11x4.00-5 — Hustler / Toro)
• Oregon 72-725 (Wheel Assembly 11x4.00-5 — Hustler / Toro)
NOT Compatible With:
• 5/8 inch bore equipment — Different bore specification
• 1/2 inch bore equipment — Different bore specification
• 5-3/4 inch or 7 inch hub equipment — Different hub length
• Solid flat-free tire applications — This is pneumatic air-filled
• Sawtooth or ribbed tread — This has smooth tread
Product Specifications:

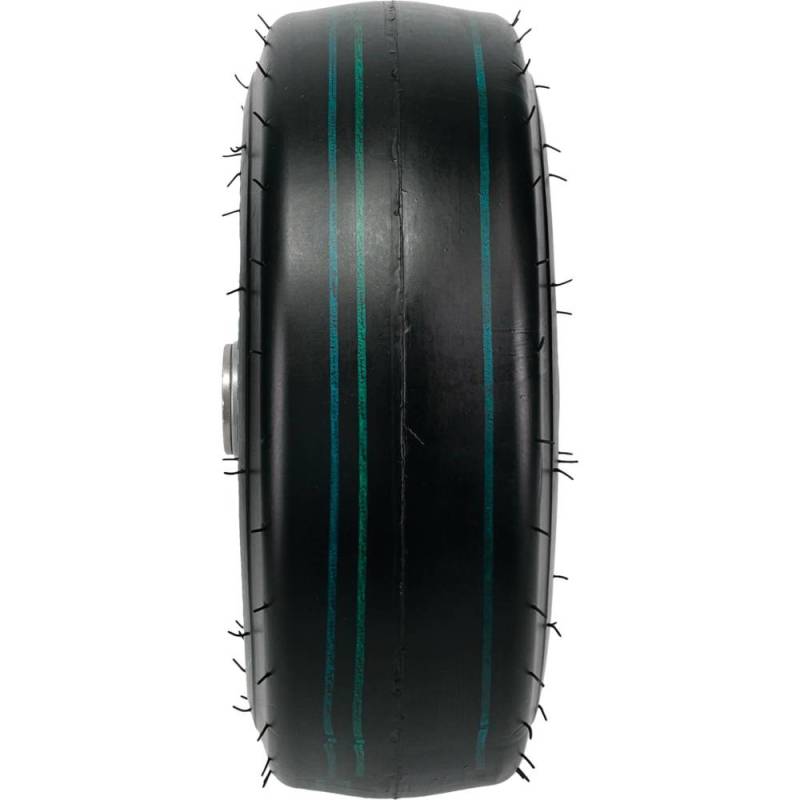

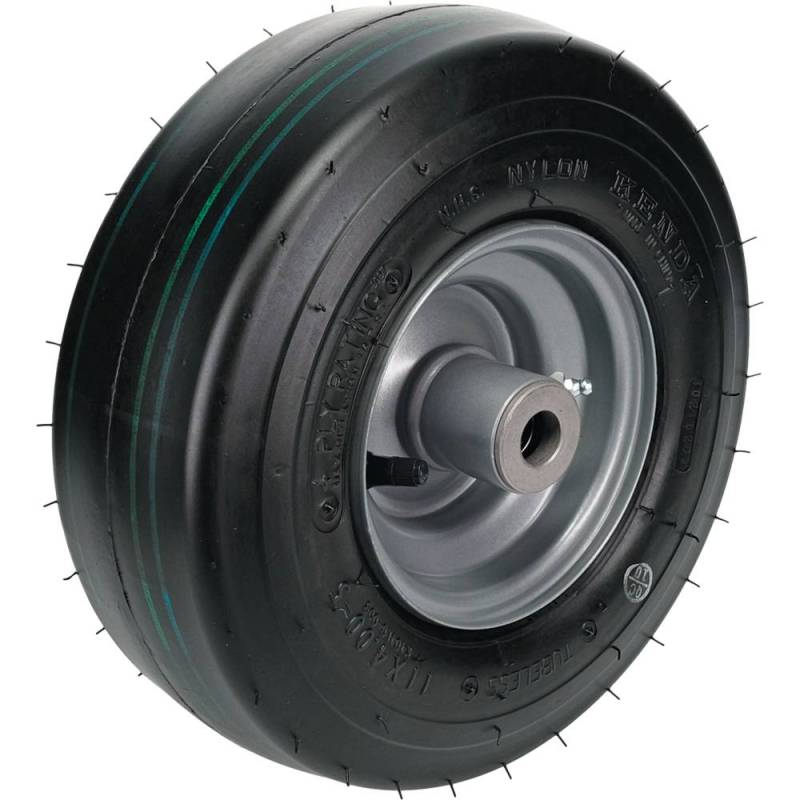

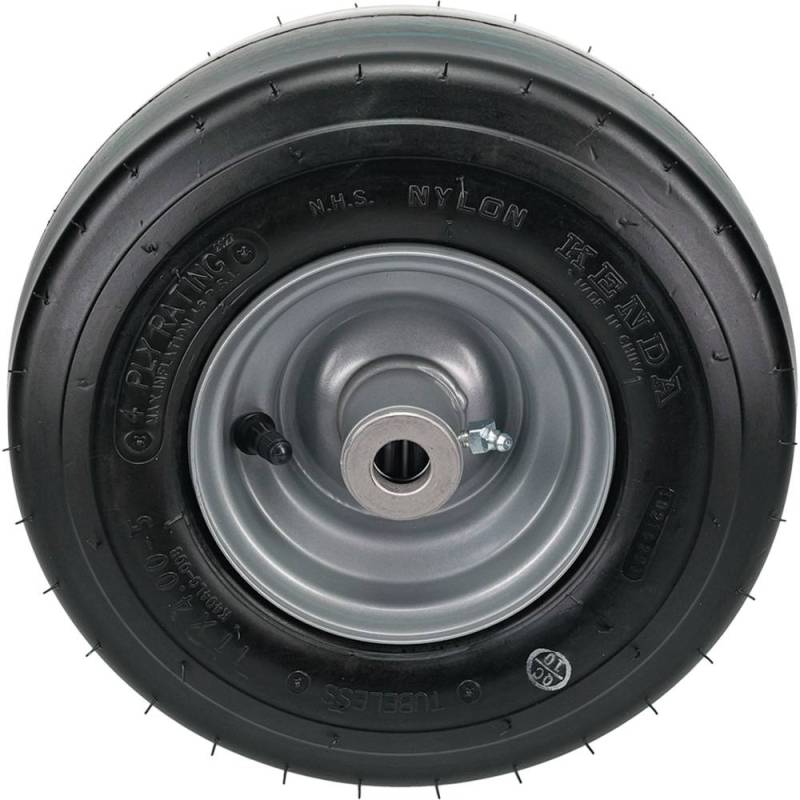

• Type: Pneumatic Wheel Assembly (Air Filled)
• Tire Size: 11x4.00-5
• Tread Pattern: Smooth
• Tire Type: Pneumatic Tubeless (4-Ply Rating)
• Overall Tire Diameter: 10.7 inch
• Tire Width: 4 inch
• Rim Diameter: 5 inch
• Rim Material: White Powder-Coated Steel
• Hub Color: Silver
• Bore Size: 3/4 inch (Axle Bore)
• Hub Length: 4-5/8 inch (Centered)
• Bearings: Roller Bearing with 2 Sintered Iron Bushings
• Tire Pressure: 46 PSI Maximum
• Load Rating: Approximately 325 lbs Per Wheel
• Weight: Approximately 8 lbs Per Wheel
• Application: Hustler Raptor / Toro TimeCutter — Front Caster Wheels
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
