Toro / Exmark :
• 130-0736 (Pneumatic Caster Wheel Assembly — TimeCutter SS / MX / ZS Series)
• 130-0736 (Pneumatic Caster Wheel Assembly — Exmark Quest E / S Series)
:
• Rotary 16358 (Caster Wheel Assembly 11x4.00-5 — Toro TimeCutter)
NOT Compatible With:
• 4-5/8 inch hub equipment — Different hub length (Stens 175-782)
• 5/8 inch bore equipment — Different bore specification
• 1/2 inch bore equipment — Different bore specification
• Solid flat-free tire applications — This is pneumatic air-filled
• Smooth tread applications — This has rib tread
• 4-ply rated applications — This is 2-ply rated
Product Specifications:

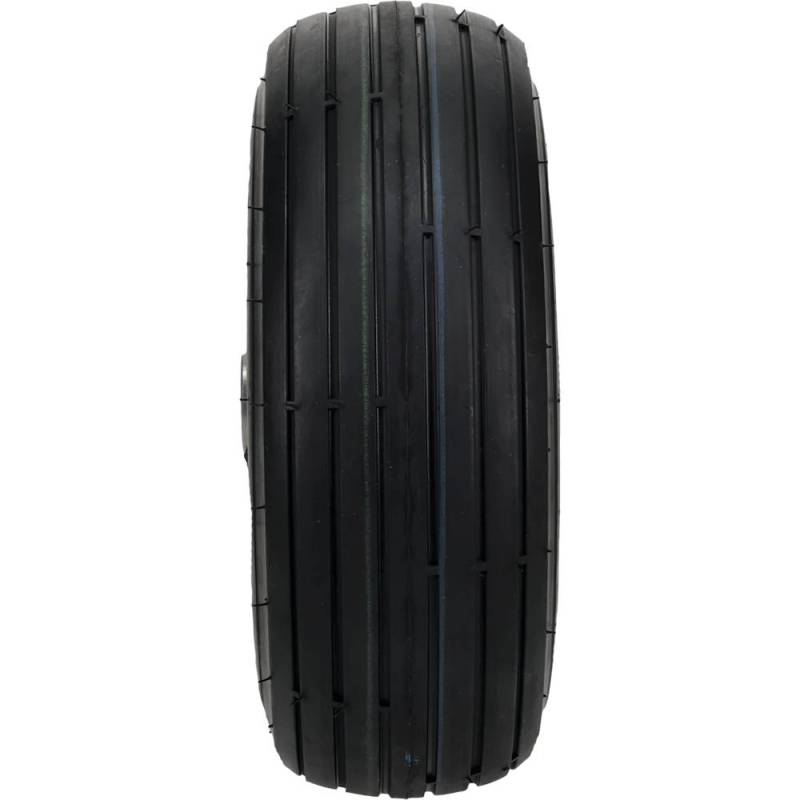

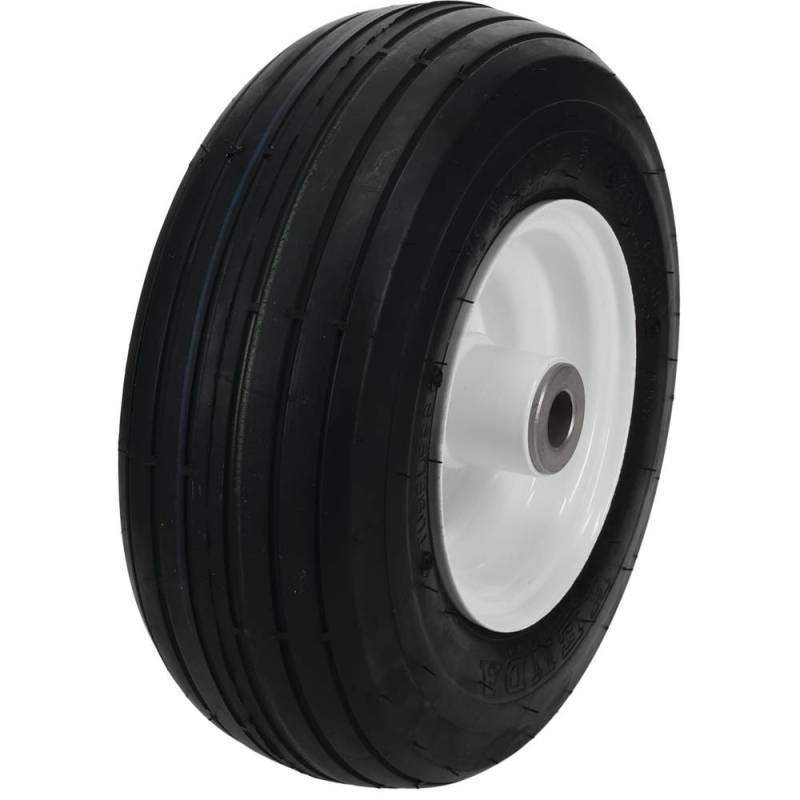

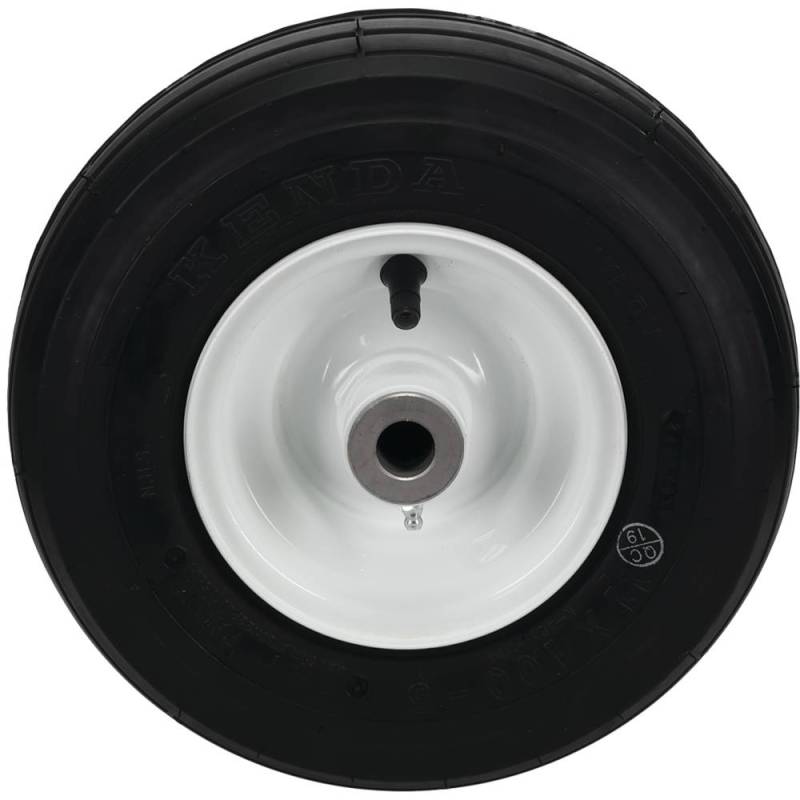

• Type: Pneumatic Wheel Assembly (Air Filled)
• Tire Size: 11x4.00-5
• Tread Pattern: Rib
• Tire Type: Pneumatic Tubeless (2-Ply Rating)
• Overall Diameter: Approximately 11 inch
• Tire Width: Approximately 4 inch
• Rim Diameter: 5 inch
• Rim Material: Steel (White Hub)
• Bore Size: 3/4 inch (Axle Bore)
• Hub Length: 4-1/4 inch (Centered)
• Bearings: 2 Bushings Installed
• Feature: Grease Zerk for Lubrication
• Tire Pressure: 35-46 PSI
• Load Rating: Approximately 325 lbs Per Wheel
• Weight: Approximately 4 lbs Per Wheel
• Application: Toro TimeCutter / Exmark Quest — Front Caster Wheels
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
