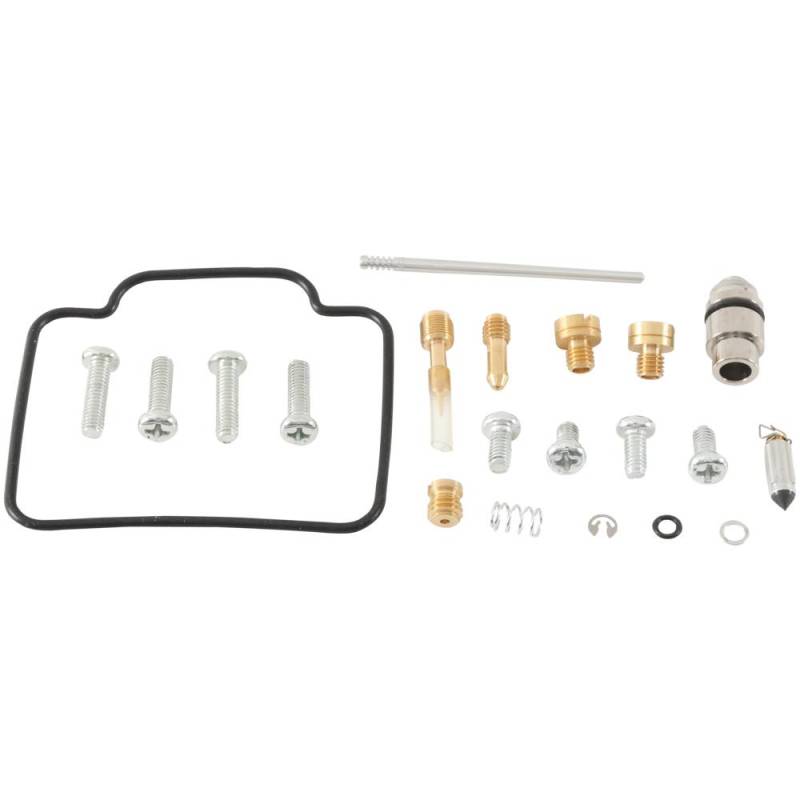

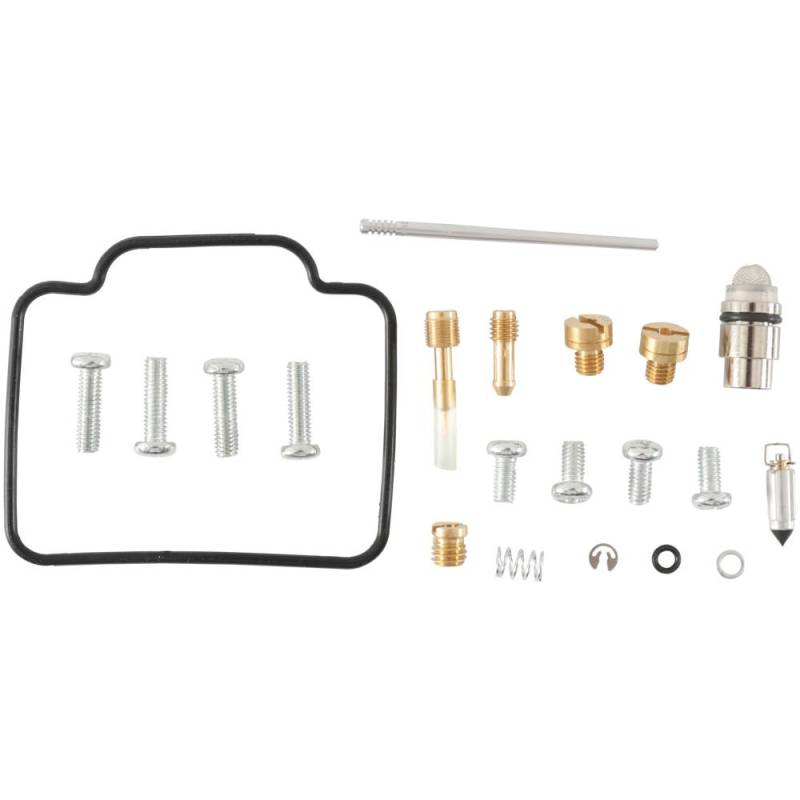

Carb Rebuild Kit Compatible With Polaris Sportsman 400 4X4 2001-2005 425Cc Sohc Liquid Cooled Fuji

OEM PART NUMBERS:
• Polaris: 3131360 (Carburetor Repair Kit)
• Polaris: 3130904, 3130898 (Carburetor Assembly)

SPECIFICATIONS:
• Engine Model: Fuji EH42PLE05
• Displacement: 425cc
• Configuration: Liquid-Cooled SOHC 4-Valve 4-Stroke Single Cylinder
• Bore x Stroke: 87.9mm x 70.0mm
• Compression Ratio: 9.2:1
• Cooling: Liquid-Cooled
• Lubrication: Pressurized Dry Sump
• Carburetor: Mikuni BST 34mm CV (Constant Velocity)
• Main Jets: #172.5 and #167.5 (both included)
• Pilot Jet: #40
• Pilot Air Jet: #160
• Jet Needle: 4GAC33-3 (clip position 3)
• Needle Jet: Q-0 (829)
• Pilot Screw: 2.75 Turns Out (Initial Setting)
• Float Height: 13mm
• Fuel Delivery: Impulse Fuel Pump
• Idle Speed: 1100 ± 200 RPM
• Transmission: Automatic PVT (Polaris Variable Transmission)
• Drivetrain: On-Demand AWD 4x4 / Shaft Drive
• Fuel Capacity: 4.25 Gallons

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
