Carburetor Rebuild Kit Compatible With Kawasaki Kfx50 2007-2009 49.5Cc Sohc Youth Atv Keihin Pte

26-1238A1
OEM PART NUMBERS:
• Kawasaki: 15004-Y006 (Carburetor Assembly)
• Kawasaki: 15003-Y001 (Carburetor Assembly, Superseded)
• Kawasaki: 15004-Y001 (Carburetor Assembly)

SPECIFICATIONS:
• Product Type: Carburetor Rebuild Kit
• Carburetor: Keihin PTE 16mm with Auto Choke

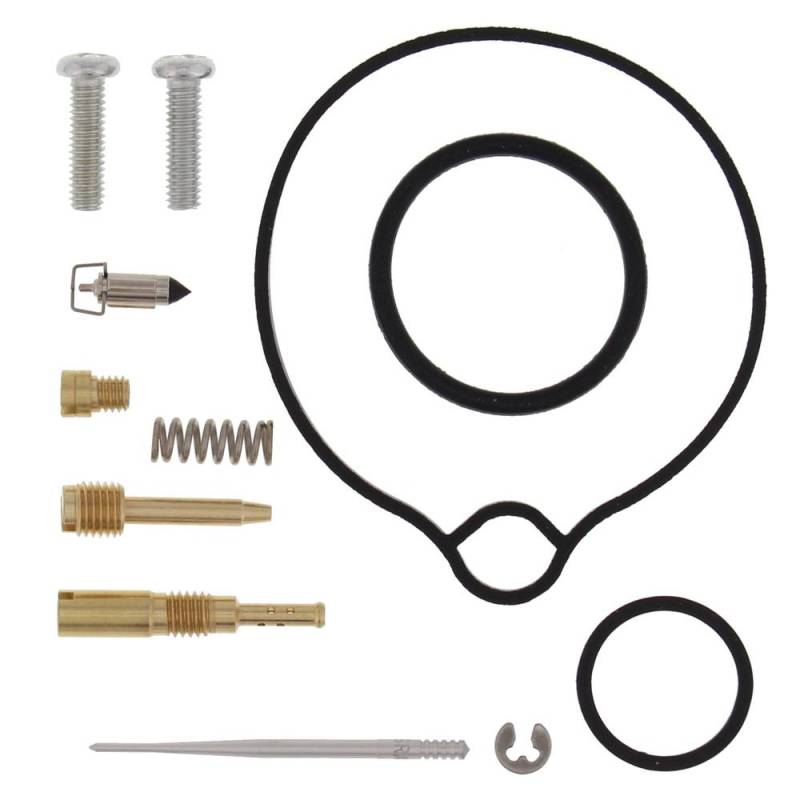

• Kit Contents: O-Rings, Gaskets, Jets, Needle, Mixture Screw, Float Bowl Screws, Float Valve Needle and Seat
• O-Ring Material: NBR Rubber (Ethanol Resistant)
• OEM Jet Sizes Included
• Paper Float Bowl Gaskets Upgraded to High Performance Interface Gasket Material
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $120.17
Sale: $68.67
Save: 43%
Save: $51.50
Qty:
Free Shipping!

Description

KAWASAKI KFX50 (KSF50):
• Kawasaki KFX50 (2007-2009)

ENGINE SPECIFICATIONS:
• 49.5cc Air-Cooled SOHC Single-Cylinder Four-Stroke
• Bore x Stroke: 39mm x 41.4mm
• Compression Ratio: 10.8:1
• Carburetor: Keihin PTE 16mm with Auto Choke
• Ignition: DC-Fired 12V CDI
• Ignition Timing: 13° BTDC @ 2,000 RPM
• Spark Plug: NGK CR7HSA
• Starting: Electric Start with Kick Start Backup

DRIVETRAIN:
• Transmission: Automatic CVT (Continuously Variable)
• Single Speed Forward, No Reverse
• Drive: Chain Drive (428 O-Ring)
• Front Sprocket: 16T, Rear Sprocket: 32T

CHASSIS:
• Frame: Steel
• Front Suspension: Single A-Arm, 2.8" Travel
• Rear Suspension: Swingarm, 2.9" Travel
• Front Brakes: Dual Drum
• Rear Brakes: Disc
• Ground Clearance: 3.3"
• Top Speed: ~15 mph
• Youth ATV for Ages 6+
• Parental Controls: Keyed Ignition, Throttle Limiter, Engine Stop Tether Lanyard

Details

Shipping Information

  • Item Requires Shipping
  • 0.1 lbs.
  • W3.6500” x H0.8000” x L5.6000”
