OEM PART NUMBERS:
• Polaris: 0452533 (Carburetor Repair Kit)
SPECIFICATIONS:
• Engine: 196cc Air-Cooled 4-Stroke OHV Single Cylinder
• Bore x Stroke: 65.0mm x 59.0mm
• Compression Ratio: 9.2:1
• Valves: 2 Per Cylinder (OHV Configuration)
• Carburetor: Keihin VM22 (22mm)
• Main Jet: #98
• Pilot Jet: #40
• Fuel System: Gravity Feed with Snorkel Air Intake
• Starting: Electric with Kick-Start Backup
• Transmission: Polaris Variable Transmission (PVT) CVT
• Drive: Belt Primary, Shaft Final Drive
• Gearing: Forward, Neutral, Reverse

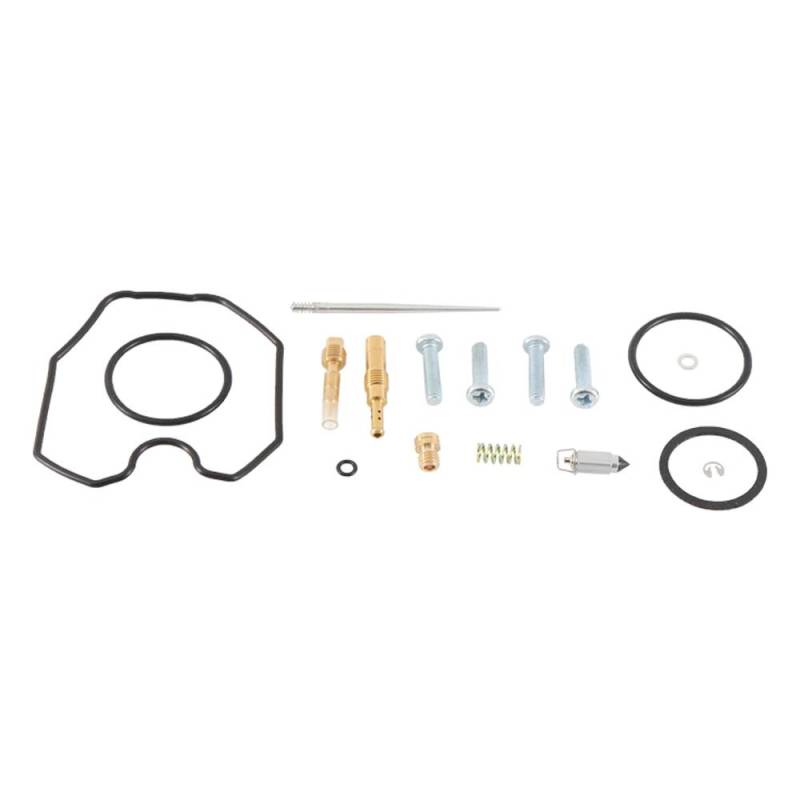

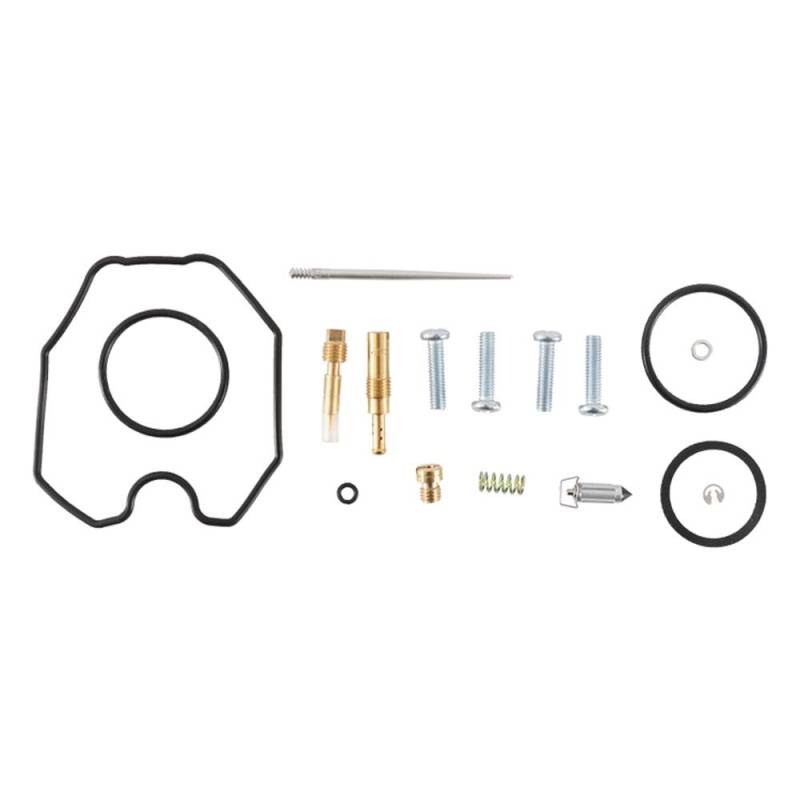

KIT INCLUDES:
• (1) Jet needle, (1) pilot screw, (1) spring
• (1) Float valve, (1) flat washer, (1) E-clip
• (4) O-rings (assorted sizes), (1) float chamber O-ring
• (4) 4mm-0.70 x 16mm pan head bolts
• (1) Main jet #98, (1) pilot jet #40
• NBR rubber O-rings resist ethanol in modern fuels
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
