Carburetor Rebuild Kit Compatible With Polaris Scrambler 90 Sportsman 90 2002-2003 Predator 90 2003

OEM PART NUMBERS:
• Polaris: 0450895 (Carburetor Repair Kit)

SPECIFICATIONS:
• Engine: 89.2cc Air-Cooled 2-Stroke Horizontal Single Cylinder
• Bore x Stroke: 52.0mm x 42.0mm
• Max Torque: 6.5 ft-lbs (8.82 Nm) at 6000 RPM
• Carburetor: Sunworld H68K
• Main Jet: #85
• Pilot Jet: #20
• Fuel System: Gravity Feed
• Spark Plug: NGK BPR7HS
• Alternator: 70 Watts at 4000 RPM
• Ignition Timing: 16 Degrees at 1500 RPM
• Starting: Electric with Kick-Start Backup
• Transmission: Automatic CVT
• Final Drive: Chain (428)

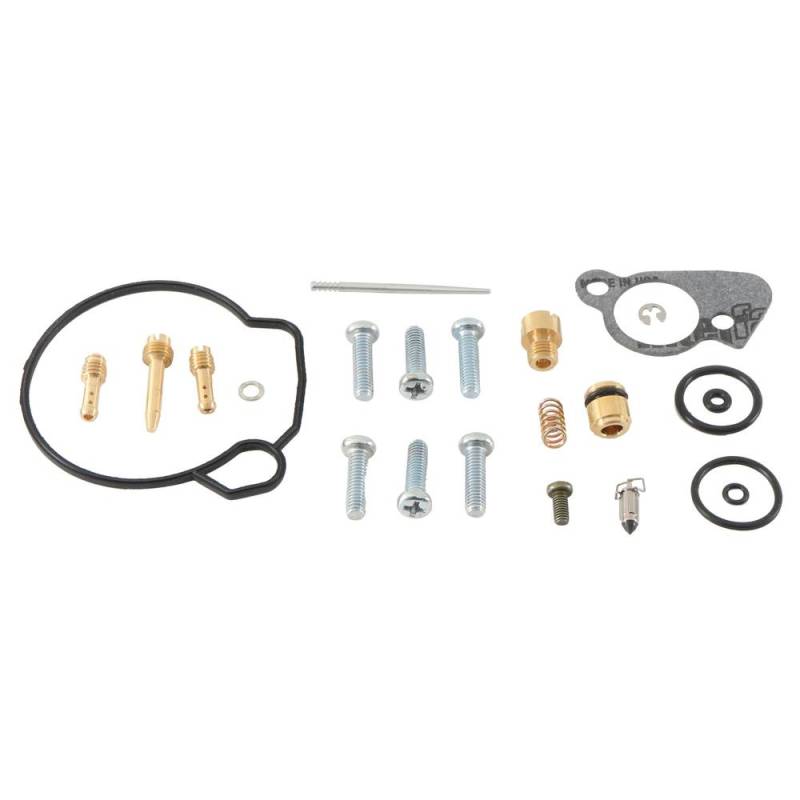

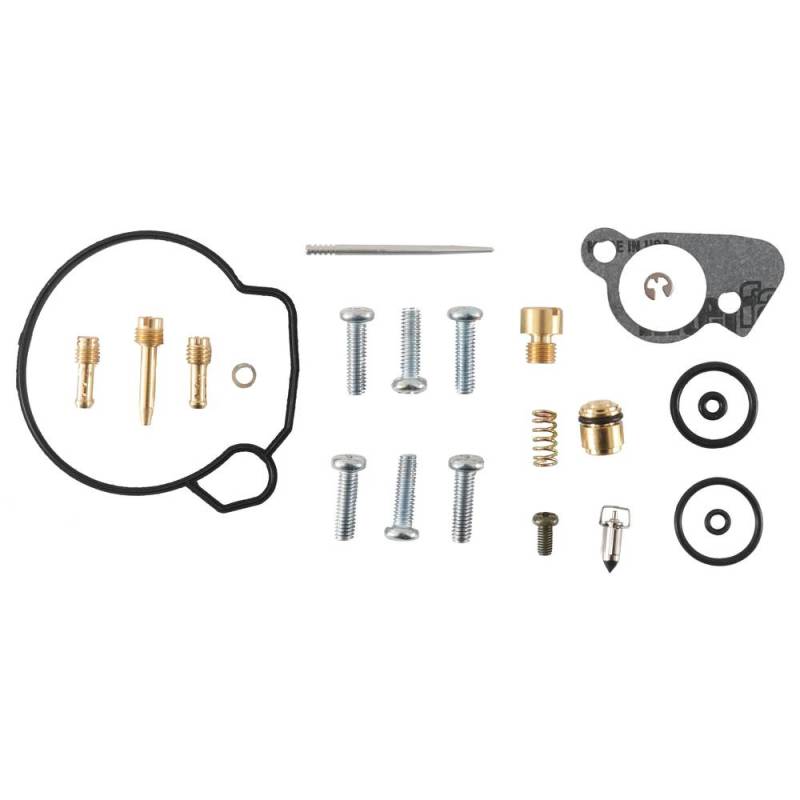

KIT INCLUDES:
• Float chamber gasket, top carburetor cover gasket
• Needle jet, spring, valve needle set, needle nozzle
• Main jet #85, pilot jet #20, throttle set screw
• E-clip, flat washer, O-rings (NBR ethanol-resistant rubber)
• Pan head bolts, float bowl hardware
• Paper float bowl gaskets upgraded to high-performance interface material
