OEM PART NUMBERS:
• Polaris: 0451669 (Carburetor Repair Kit)
• Polaris: 0451668 (Carburetor Assembly)
• Polaris: 0451022 (Carburetor Assembly)
• Polaris: 0450924 (Carburetor Assembly)
SPECIFICATIONS:
• Engine: 89.2cc Air-Cooled 2-Stroke Horizontal Single Cylinder
• Bore x Stroke: 52.0mm x 42.0mm
• Max Torque: 6.5 ft-lbs (8.82 Nm) at 6000 RPM
• Carburetor: Sunworld H68K
• Main Jet: #82.5
• Pilot Jet: #25
• Fuel System: Gravity Feed
• Spark Plug: NGK BPR7HS
• Alternator: 70 Watts at 4000 RPM
• Starting: Electric with Kick-Start Backup
• Transmission: Automatic CVT
• Final Drive: Chain (428)

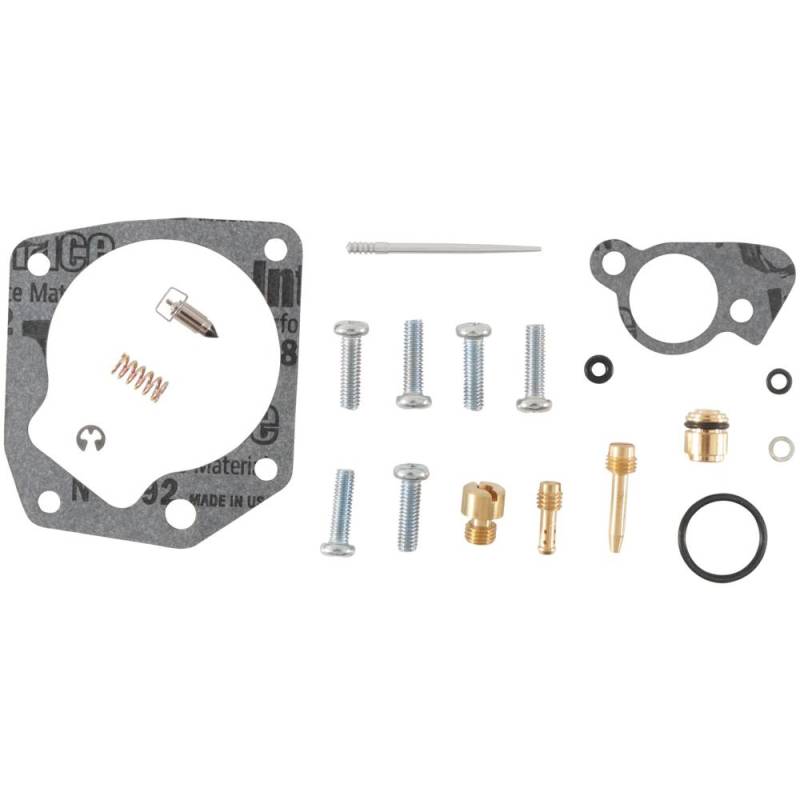

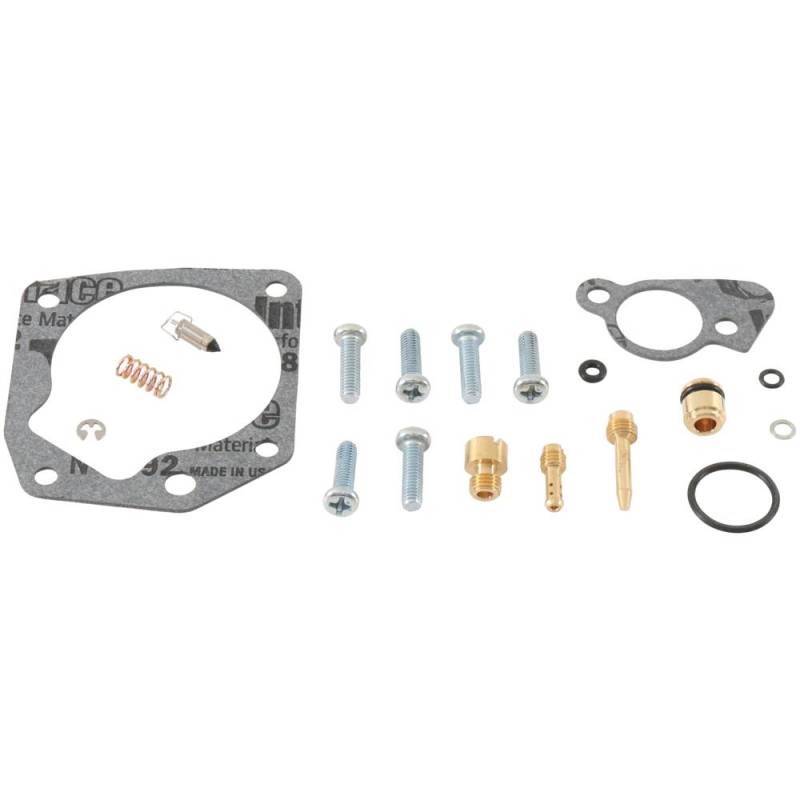

KIT INCLUDES:
• (1) Float chamber gasket, (1) top carb cover gasket
• (1) Needle jet, (1) spring, (1) needle valve assembly
• (1) Main jet #82.5, (1) pilot jet #25
• (1) Adjuster screw, (1) E-clip, (1) flat washer
• (3) O-rings (NBR ethanol-resistant rubber)
• (4) 8-32 x 1/2 inch pan head bolts
• Paper float bowl gaskets upgraded to high-performance interface material
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
