OEM PART NUMBERS:

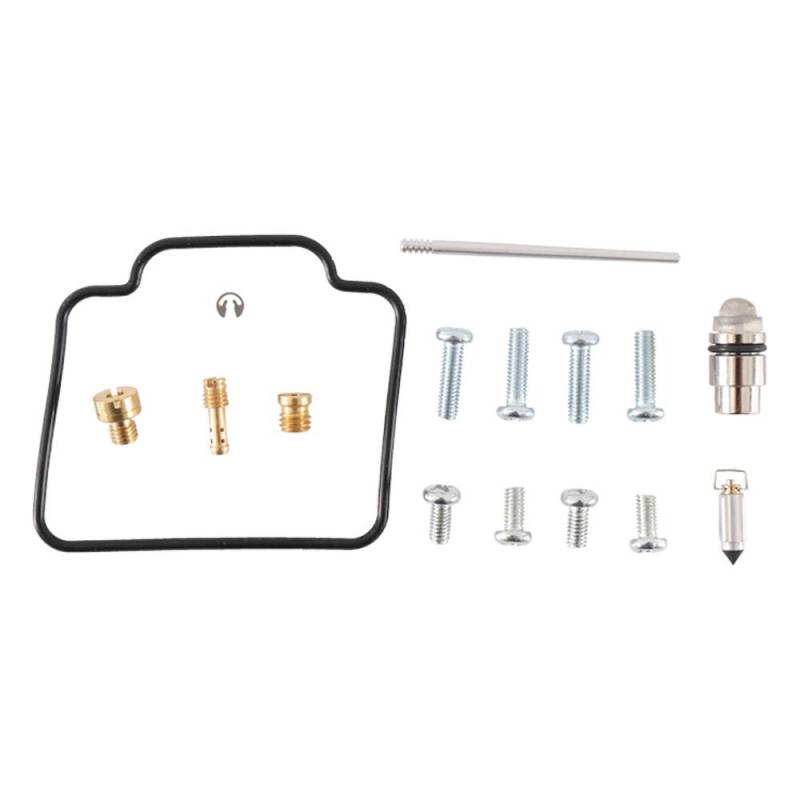

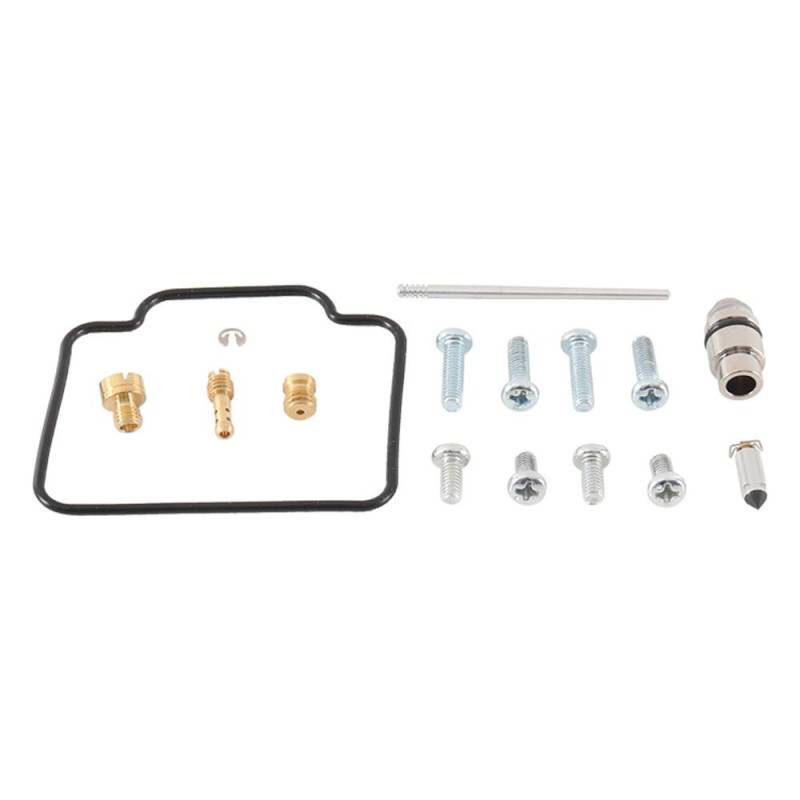

• Polaris: 3131360 (Carburetor Repair Kit)
SPECIFICATIONS:
• Engine Platform: Fuji 4-Stroke Single Cylinder
• Displacement: 299cc
• Bore x Stroke: 78.5mm x 68.0mm
• Compression Ratio: 9.2:1
• Valve Configuration: SOHC 2-Valve
• Cooling: Air/Oil Cooled
• Carburetor: Mikuni BST 34mm
• Main Jet: 147.5
• Pilot Jet: 42.5
• Jet Needle: 4HB42-5
• Needle Jet: 0-4m
• Pilot/Air Screw: 2.5 Turns Out (Initial Setting)
• Float Height: 13mm from Carburetor Body
• Fuel Delivery: Fuel Pump
• Fuel Capacity: 4.5 Gallons (87 Octane Minimum)
• Idle Speed: 1300 RPM
• Alternator: 250 Watts / 18.6 Amps at 6000 RPM
• Lubrication: Wet Sump (Polaris 0W-50, 2 Quarts)
• Starting: Electric with Recoil Backup
• Transmission: Automatic CVT
• Final Drive: Shaft
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
