Carburetor Rebuild Kit Compatible With Suzuki Lt-F500f Lt-A500f Vinson 500 4X4 Auto Manual 2003-2007

26-1085A1
OEM PART NUMBERS:
• Suzuki: 13200-03GG0 (Carburetor Assembly — Latest)
• Suzuki: 13200-03G02 (Carburetor Assembly)
• Suzuki: 13200-03G01 (Carburetor Assembly — Original)

SPECIFICATIONS:
• Product Type: Carburetor Rebuild Kit
• Carburetor: Keihin CVK36 (36mm CV)
• Jetting: Main Jet #148, Pilot Jet #40, Air Jet 60mm
• Engine Platform: 493cc Liquid-Cooled SOHC 4-Valve

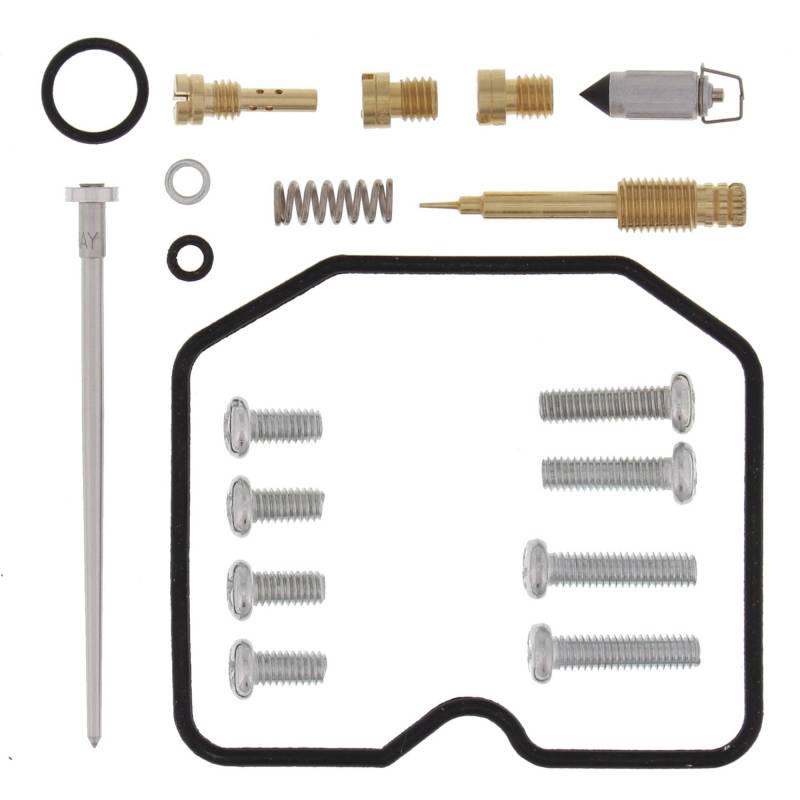

• Kit Contents: O-Rings, Gaskets, Jets, Needle, Mixture Screw, Float Bowl Screws, Float Valve Needle and Seat
• O-Ring Material: NBR Rubber (Ethanol Resistant)
• Float Bowl Gaskets: Upgraded High Performance Interface Material
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $134.80
Sale: $77.03
Save: 43%
Save: $57.77
Qty:
Free Shipping!

Description

SUZUKI LT-A500F VINSON 500 4x4 AUTO:
• Suzuki LT-A500F Vinson 500 4x4 Auto (2006)
• Suzuki LT-A500F Vinson 500 4x4 Auto (2007)

SUZUKI LT-A500FC VINSON 500 4x4 AUTO ADVANTAGE:
• Suzuki LT-A500FC Vinson 500 4x4 Auto Advantage (2006)
• Suzuki LT-A500FC Vinson 500 4x4 Auto Advantage (2007)

SUZUKI LT-F500F VINSON 500 4x4 MANUAL:
• Suzuki LT-F500F Vinson 500 4x4 Manual (2003)
• Suzuki LT-F500F Vinson 500 4x4 Manual (2004)
• Suzuki LT-F500F Vinson 500 4x4 Manual (2005)
• Suzuki LT-F500F Vinson 500 4x4 Manual (2006)
• Suzuki LT-F500F Vinson 500 4x4 Manual (2007)

SUZUKI LT-F500FC VINSON 500 4x4 MANUAL ADVANTAGE:
• Suzuki LT-F500FC Vinson 500 4x4 Manual Advantage (2005)
• Suzuki LT-F500FC Vinson 500 4x4 Manual Advantage (2006)
• Suzuki LT-F500FC Vinson 500 4x4 Manual Advantage (2007)

ENGINE SPECIFICATIONS:
• 493cc Liquid-Cooled SOHC 4-Valve Single Cylinder Four-Stroke
• Bore x Stroke: 87.5mm x 82.0mm (3.45" x 3.23")
• Compression Ratio: 10.2:1
• SCEM-Plated Cylinder (Nickel-Silicon Coating)
• Piston Cooling Oil Jet
• Gear-Driven Counterbalancer
• Carburetor: Keihin CVK36 (36mm CV)
• Ignition: Digital CDI
• Starting: Electric with Recoil Backup

TRANSMISSION VARIANTS:
• Auto (LT-A): QuadMatic CVT Automatic with Hi/Lo Range + Reverse
• Manual (LT-F): 5-Speed Foot Shift with Automatic Clutch + Reverse

CHASSIS:
• Drive: Selectable 2WD/4WD with Limited-Slip Front Differential
• Front Suspension: Independent Double A-Arm
• Rear Suspension: Swingarm with Single Shock
• Front Brakes: Dual Hydraulic Disc (190mm)
• Rear Brake: Hydraulic Disc (216mm)
