OEM PART NUMBERS:
• Honda: 16100-HC4-033 (Carburetor Assembly)
• Honda: 16100-HC4-013 (Carburetor Assembly)
• Honda: 16100-HC4-023 (Carburetor Assembly)
• Honda: 16155-397-971 (Float Valve Set)
• Honda: 16010-HM5-730 (Gasket Set)
• Honda: 16010-HM7-700 (Gasket Set)
• Honda: 16016-HA0-682 (Float Set)
• Honda: 16016-HC4-003 (Float Set)
• Honda: 16016-HM3-L00 (Float Set)
• Honda: 93500-04008-0H (Screw)
JET SPECIFICATIONS:
• Honda: 99101-GHB-1200 (Main Jet #120)
• Honda: 99101-MBZ-1200 (Main Jet #120)
• Honda: 99101-393-1200 (Main Jet #120)
• Honda: 99103-MA1-0420 (Slow Jet #40)
• Honda: 99103-MAZ-0400 (Slow Jet #40)
• Honda: 99112-HC4-0850 (Jet #85)
• Honda: 99112-HN2-0850 (Jet #85)
SPECIFICATIONS:
• Product Type: Carburetor Rebuild Kit
• Carburetor: 32mm Piston-Valve
• Main Jet: #120 | Slow Jet: #40 | Jet: #85

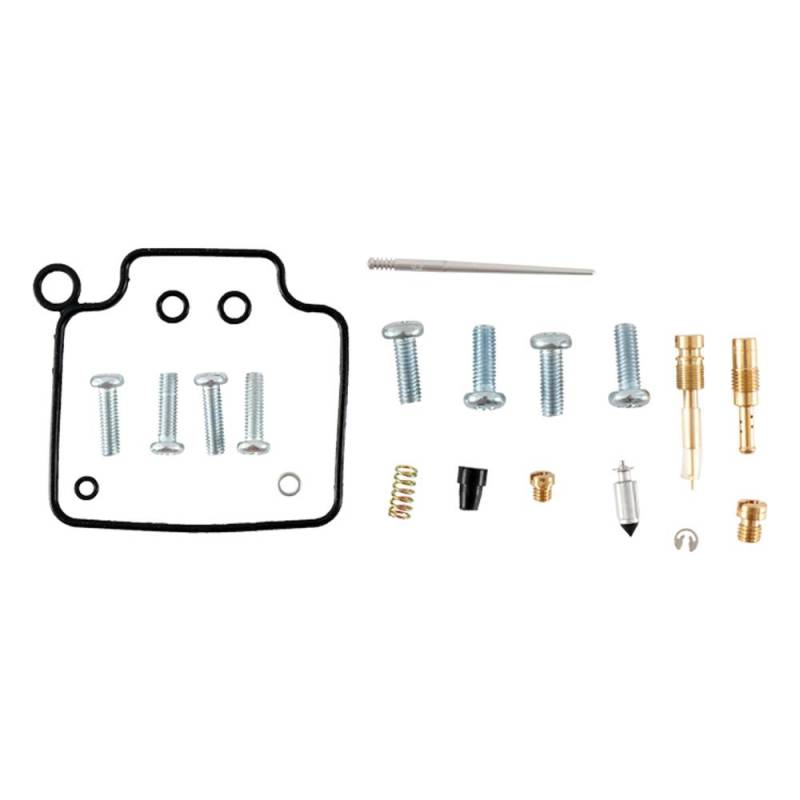

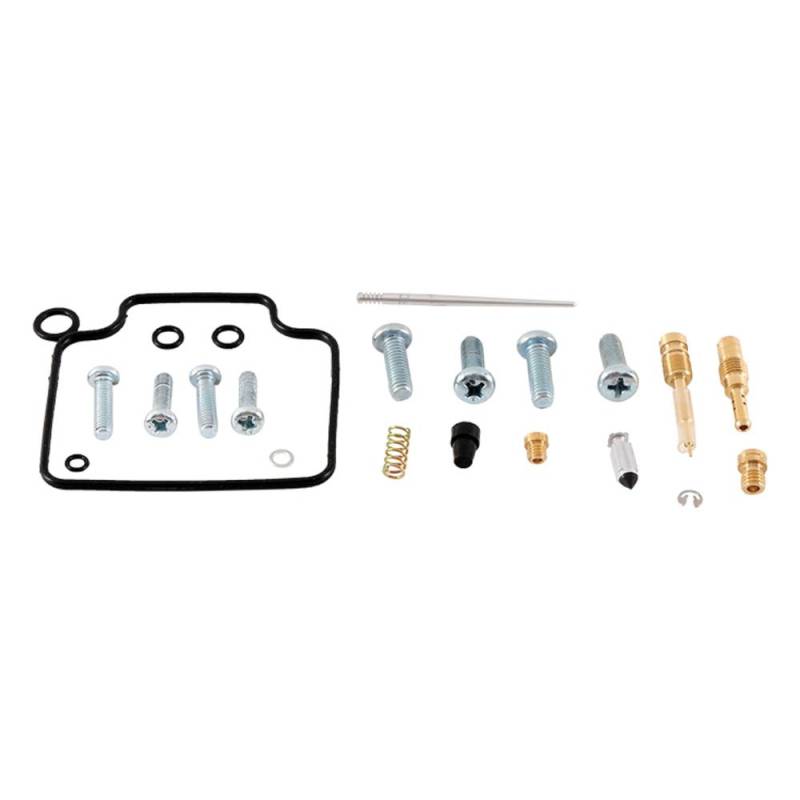

• Kit Contents: Jet Needle, Pilot Screw, Spring, Float Valve, E-Clip, Flat Washer, 3 O-Rings, Rubber Plug, Float Chamber O-Ring, 4x 4mm-0.70x14mm + 4x 5mm-0.80x14mm Pan Head Bolts
• O-Ring Material: NBR Rubber (Ethanol Resistant)
• Condition: New
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
