OEM PART NUMBERS:
• John Deere: AR21737
• John Deere: AR21739
• John Deere: AR77324
• John Deere: ELJ50-0015
• TL3005
SPECIFICATIONS:
• Product Type: LED Sealed Round Light
• Lumens: 2,200
• Wattage: 24W
• Amperage: 2A
• Voltage: 12-24V DC
• Light Pattern: Spot/Flood Combo
• Light Shape: Round (Sealed)
• Dimensions: 5 1/16" L x 4 3/16" W x 5 7/8" D
• Installation: Plug and Play
• Mounting: Uses Original Mount and Wiring
• Housing: Die-Cast Aluminum
• Lens: Polycarbonate
• Waterproof Rating: IP68
• Condition: New
FITS:
JOHN DEERE GENERATION II TRACTORS:
• 1120/1130/1140 (12-24V Negative Ground)
• 1520/1530 (12-24V Negative Ground)
• 1630/1640 (12-24V Negative Ground)
• 1750 (12-24V Negative Ground)
• 1830/1840/1850 (12-24V Negative Ground)
• 1950/1950N (12-24V Negative Ground)
JOHN DEERE 10/20 SERIES TRACTORS:
• 2010/2020/2030 (12-24V Negative Ground)
• 2040S (12-24V Negative Ground)
• 2120/2130/2140 (12-24V Negative Ground)
• 2150/2155 (12-24V Negative Ground)
• 2240/2250/2255 (12-24V Negative Ground)
• 2350/2355/2355N (12-24V Negative Ground)
• 2440/2450 (12-24V Negative Ground)
• 2510/2520 (12-24V Negative Ground)
• 2550/2555 (12-24V Negative Ground)
• 2630/2640/2650 (12-24V Negative Ground)
• 2750/2755 (12-24V Negative Ground)
• 2840/2850/2855N (12-24V Negative Ground)
• 2940/2950/2955 (12-24V Negative Ground)
JOHN DEERE 30/40/50 SERIES TRACTORS:
• 3010/3020/3030 (12-24V Negative Ground)
• 3050/3130/3140/3350 (12-24V Negative Ground)
• 4000/4010/4020 (12-24V Negative Ground)
• 4320/4520/4620 (12-24V Negative Ground)
• 6030 (12-24V Negative Ground)
• 920/930 (12-24V Negative Ground)
INSTALLATION: Plug and Play. Uses original mount and wiring. White work light and red tail light built in together. Sealed round design for rear work light position on tractors with red tail light option.
IMPORTANT: Will NOT work on positive ground tractors.

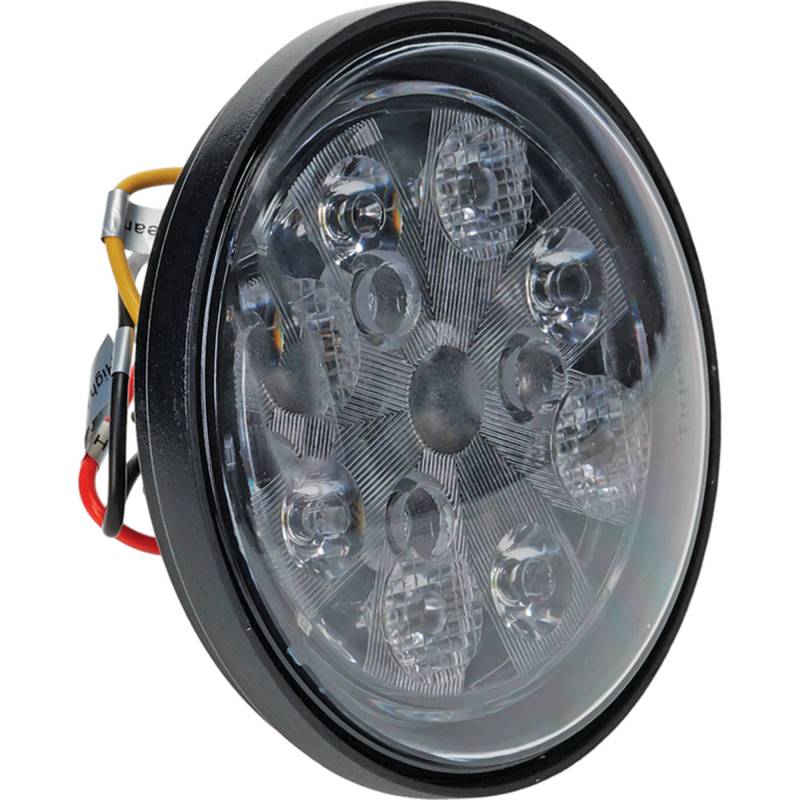

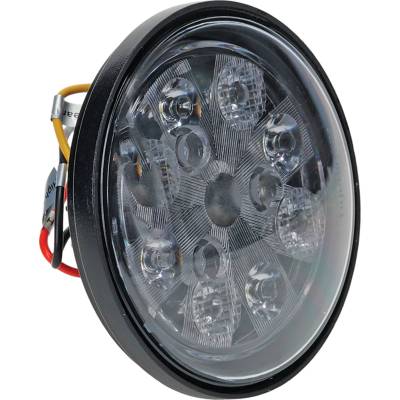

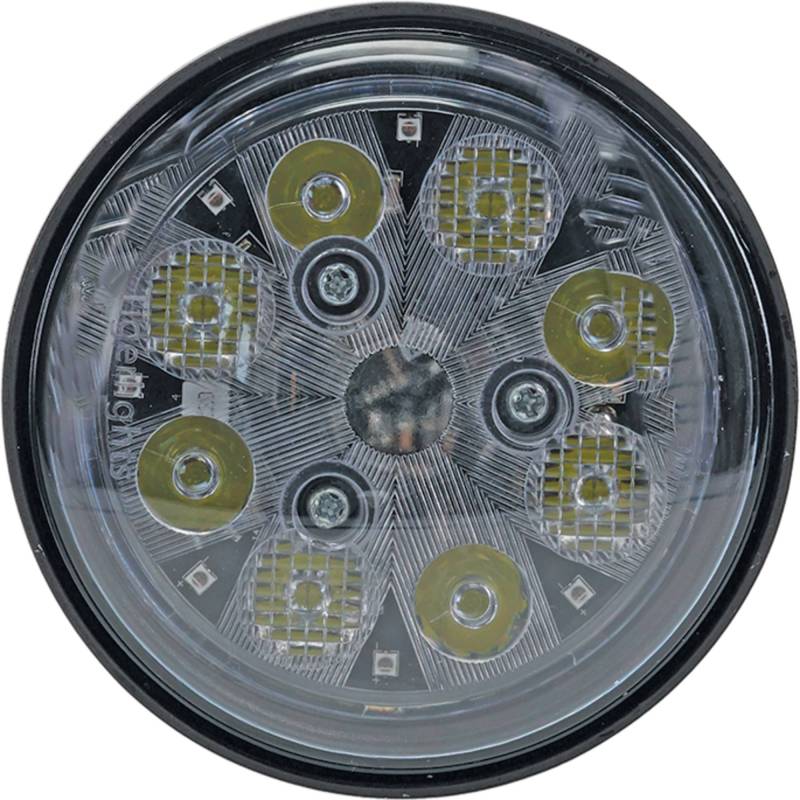

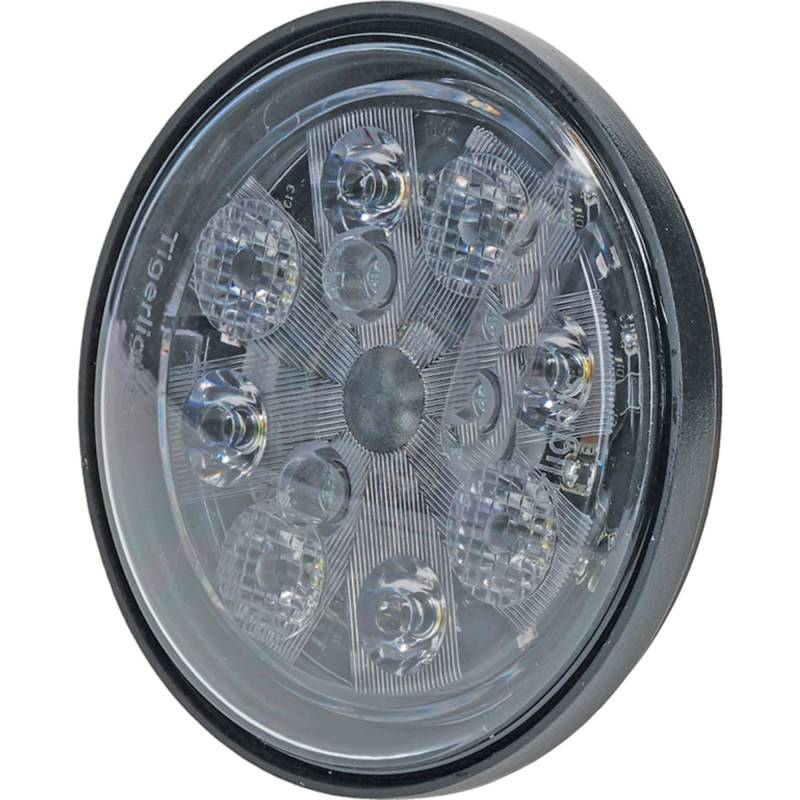

24W LED Sealed Round Work Light with Red Tail Light - 2200 Lumens - John Deere Tractors
LED sealed round light for the rear work light position on John Deere tractors featuring white work light and red tail light built in together as a single sealed unit. Direct OEM replacement for John Deere AR21737, AR21739, AR77324, and ELJ50-0015. 2,200 lumens from 24 watts with spot/flood combo beam provides excellent rear illumination for nighttime field work. Plug and play installation uses original mount and wiring for quick conversion from halogen to LED. Compatible with 12-24V DC negative ground systems.
⚠️ Verify OEM part number from your original unit before ordering to ensure proper fitment.
