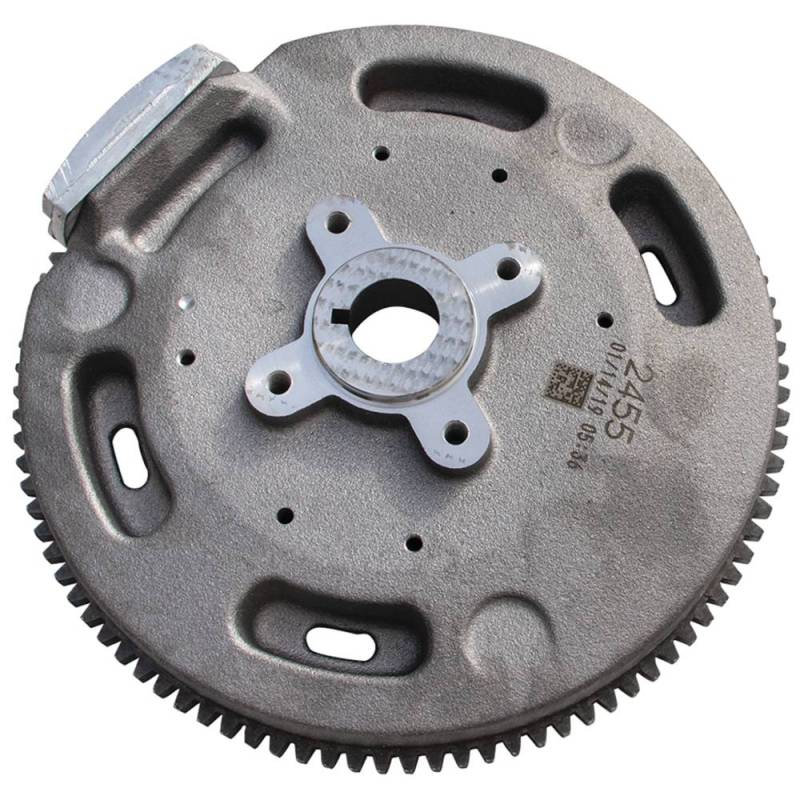

Flywheel Assembly Compatible With Kohler Command Ch20 Ch20s Ch20qs Ch18 Ch18s 624Cc V-Twin Ohv

OEM PART NUMBERS (Supersession Chain):
• Kohler: 24 025 121-S / 24025121-S / 24025121S (Current — Supersedes All Below)
• Kohler: 24 025 55-S / 2402555-S / 2402555S
• Kohler: 24 025 29-S / 2402529-S / 2402529S
• Kohler: 24 025 11-S / 2402511-S / 2402511S
• Kohler: 24 025 04-S / 2402504-S / 2402504S
• Kohler: 24 025 01-S / 2402501-S / 2402501S

SPECIFICATIONS:
• Type: Flywheel Assembly (Complete)
• Material: Metal / Cast Construction
• Function: Ignition Timing, Engine Balance, Electrical System
• Flywheel Retaining Screw Torque: 66.4 Nm (49 ft. lb.)
• Fan Fastener Torque: 9.9 Nm (88 in. lb.)
• Engine Series: Kohler Command CH18, CH20 (Horizontal Shaft)
• Bore: 77mm (3.03 in.)
• Stroke: 67mm (2.64 in.)
• Displacement: 624cc (38 cu. in.)
• Configuration: V-Twin OHV Air-Cooled 4-Stroke Horizontal Shaft
• HP Range: 18HP to 20HP
• Compression Ratio: 8.5:1
• Condition: New

KOHLER COMMAND CH18 APPLICATIONS (624cc V-Twin OHV 18HP):
• CH18, CH18S, CH18GS, CH18GST, CH18PS, CH18QS

KOHLER COMMAND CH20 APPLICATIONS (624cc V-Twin OHV 20HP):
• CH20, CH20S, CH20QS

EQUIPMENT APPLICATIONS:
• Toro Dingo TX420, Dingo 220 Compact Utility Loaders
• Toro Z Master Zero-Turn Riding Mower
• Cub Cadet 13AQ11CP709, 13AQ11CP710 Riding Mowers

PRODUCT NOTICE:
