OEM PART NUMBERS:
• Kohler: 32 025 25-S / 3202525-S / 3202525S
• Kohler: 32-025-25-S / 32-025-25 / 32 025 25
SPECIFICATIONS:

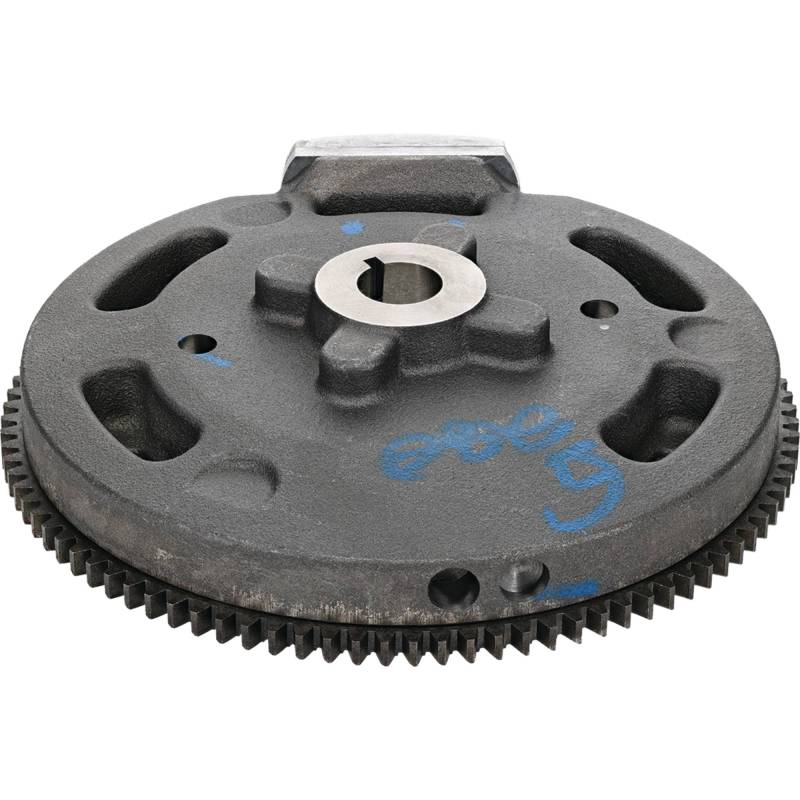

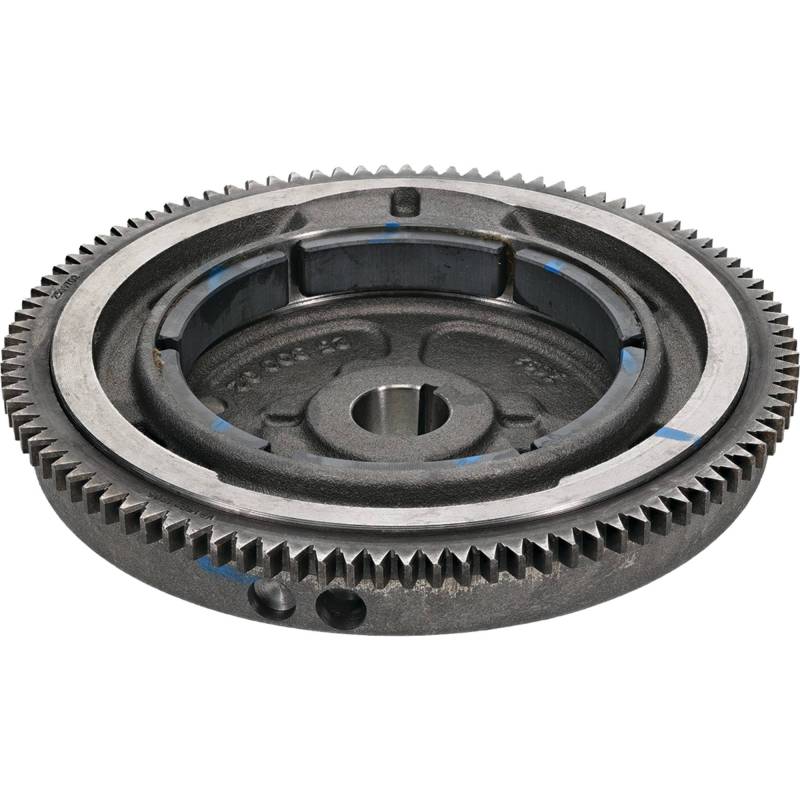

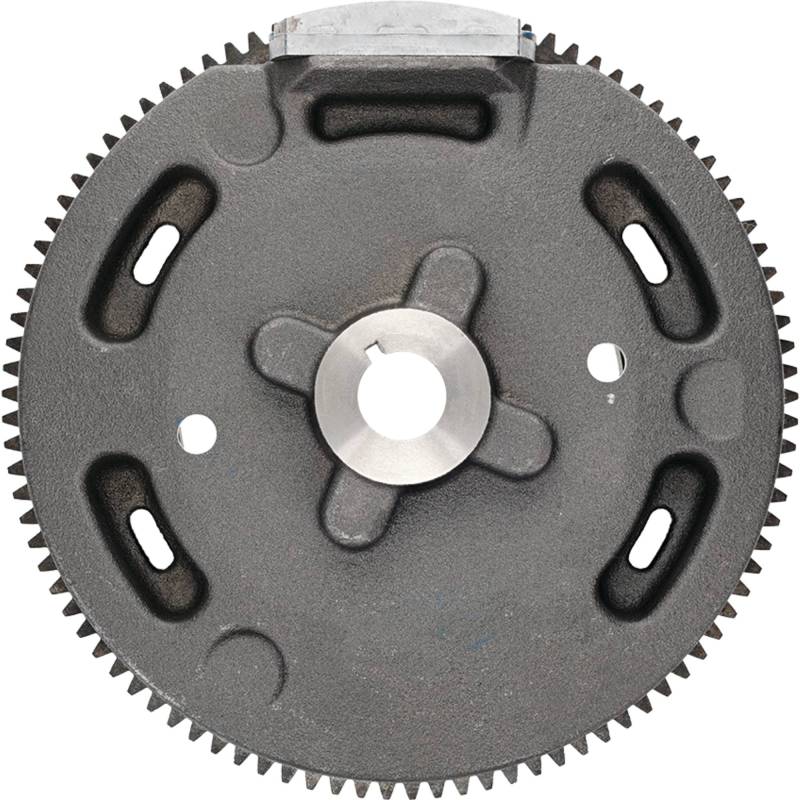

• Type: Flywheel Assembly (Complete)
• Material: Metal / Cast Construction
• Function: Ignition Timing, Engine Balance, Electrical System
• Flywheel Retaining Screw Torque: 74.5 Nm (55 ft. lb.)
• Engine Series: Kohler 7000 (KT715-KT740), Confidant (ZT710-ZT730), 6600 (KT600)
• Bore: 83mm (3.27 in.)
• Stroke: 67mm (KT715-KT730, ZT710-ZT720) / 69mm (KT735-KT740, ZT730)
• Displacement: 725cc (44 cu. in.) / 747cc (46 cu. in.) / 660cc (KT600)
• HP Range: 17HP to 25HP
• Configuration: V-Twin OHV Air-Cooled 4-Stroke
• Compression Ratio: 9.1:1
• Condition: New
KOHLER 7000 SERIES APPLICATIONS (725-747cc V-Twin OHV 20-25HP):
• KT715 725cc 20HP, KT725 725cc 22HP, KT730 725cc 23HP
• KT735 747cc 24HP, KT740 747cc 25HP
KOHLER CONFIDANT ZT SERIES APPLICATIONS (725-747cc V-Twin OHV 19-23HP):
• ZT710 725cc 19HP, ZT720 725cc 21HP, ZT730 747cc 23HP
KOHLER 6600 SERIES APPLICATION:
• KT600 660cc 17HP
EQUIPMENT APPLICATIONS:
• Craftsman Riding Mowers with Kohler 7000 Series V-Twin Engines
• Cub Cadet 17ASDGHB010 Zero-Turn Mower
• Poulan Pro P46ZX 46" Zero-Turn Mower
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
