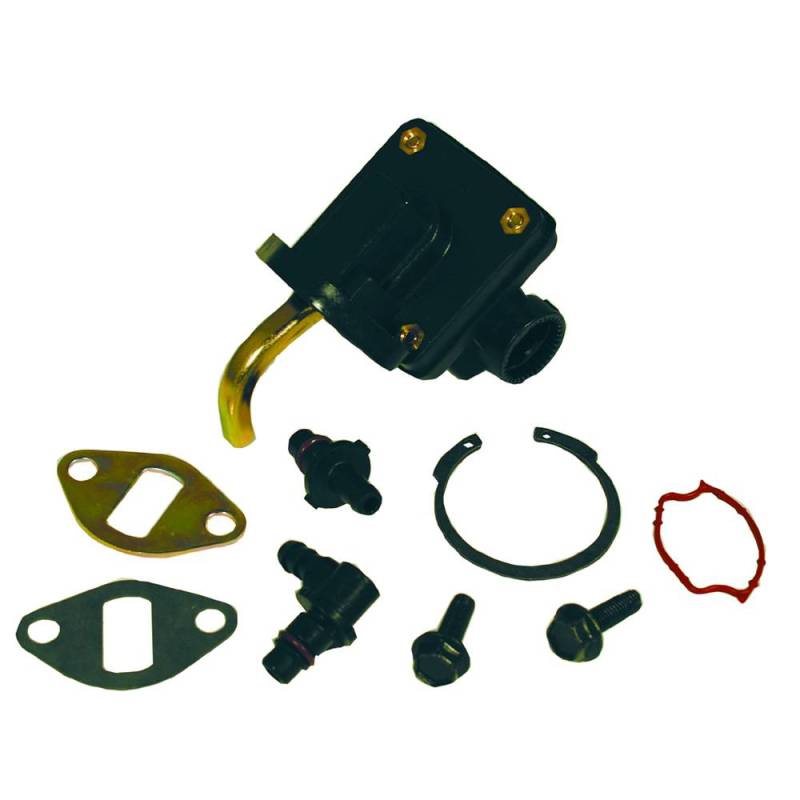

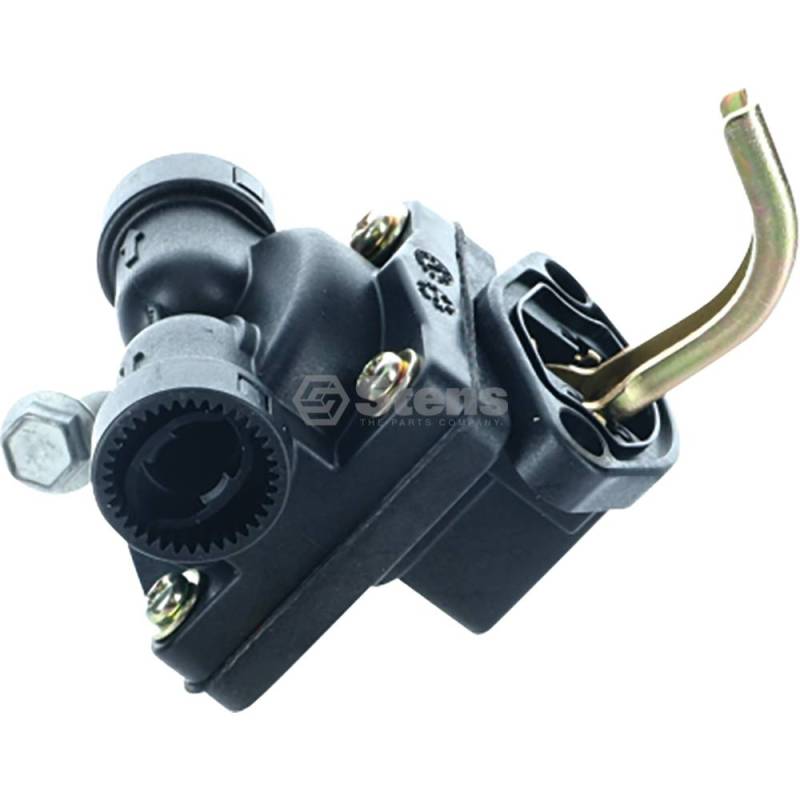

Mechanical Fuel Pump Compatible With Craftsman Cub Cadet Ariens Kohler Command Replaces 1255902-S 12

OEM PART NUMBERS:
• Kohler: 12 393 03 / 12-393-03 / 12 393 03-S / 12-393-03-S / 1239303 / 1239303-S
• Kohler: 12 559 01 / 12-559-01 / 12 559 01-S / 12-559-01-S / 1255901 / 1255901-S
• Kohler: 12 559 02 / 12-559-02 / 12 559 02-S / 12-559-02-S / 1255902 / 1255902-S
• John Deere: AM133627

SPECIFICATIONS:
• Product Type: Mechanical Fuel Pump
• Arm Length: 1-5/8 inches (1.625")
• Fuel Line Size: Fits 1/4" ID Fuel Line
• Material: Plastic
• Ethanol Compatibility: NOT compatible with greater than 10% ethanol fuel
• Engine Types: Kohler Command CH & CV Series
• Horsepower Range: 11HP-17HP
• Engine Displacement: 398cc-624cc
• Shaft Type: Horizontal (CH-Series) and Vertical (CV-Series)
• Condition: New Aftermarket Replacement

ENGINE APPLICATIONS:
• Kohler Command CH-Series: CH11-CH15 Horizontal Shaft (398cc-426cc, 11-15HP)
• Kohler Command CV-Series: CV11-CV16 Vertical Shaft (398cc-426cc, 11-16HP)
• Kohler Command CV-Series: CV430-CV493 Vertical Shaft (452cc-490cc, 14-17HP)

EQUIPMENT BRANDS:
• John Deere: 30+ lawn tractor models (STX, LX, LT, L, GT series)
• Craftsman: 80+ lawn tractors (247-series, 917-series)
• Cub Cadet: LT & LTX series garden tractors, Z42, 4815F
• Ariens: 3 zero-turn mower models
• Toro: 8+ lawn tractor models
• Bobcat, Dixie Chopper, Dixon, Ferris, Gravely, Husqvarna, Poulan, Scag, AYP equipment with Kohler

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
