OEM PART NUMBERS REPLACED BY THIS KIT:
• TL6020 Center Headlight (×3) replaces:
Case IH: 87539115 / 87328621 / 47376469 / 84530388
Bolts into housing: 87455676 / 87455677 / 87308895
John Deere: AL209455 | Challenger: 519438D1 / 526701D1
• TL6120L Left Front Cab Corner (×1) replaces:
Case IH: 279219A1
• TL6120R Right Front Cab Corner (×1) replaces:
Case IH: 279220A1
• TL3030 Rear Cab Work Lights (×2) replaces:
Case IH: R54411 / R54412 / 92269C1 / 178345A1 / 87435762

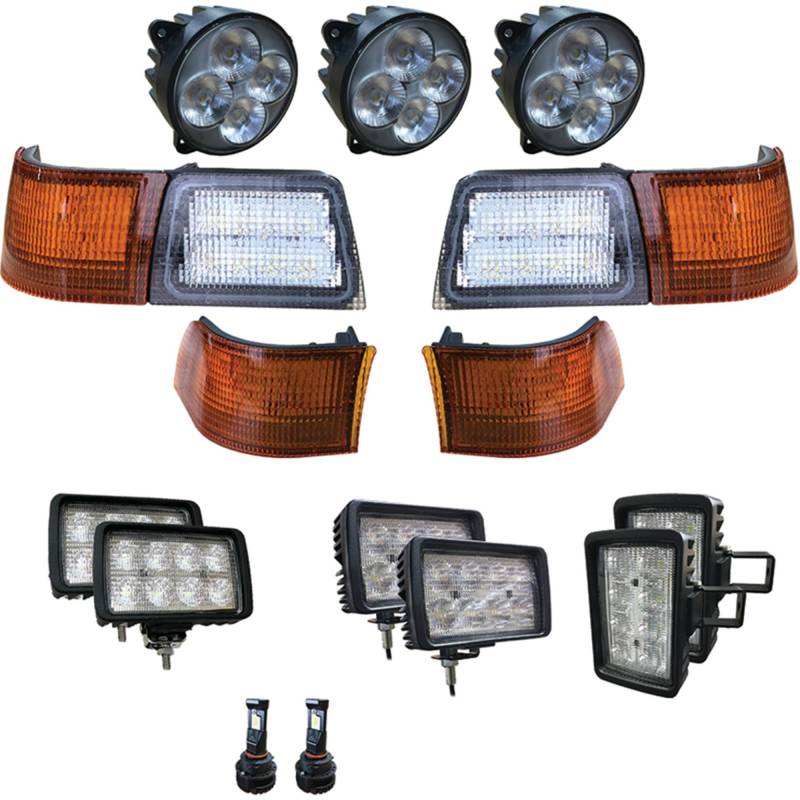

KIT CONTENTS & INDIVIDUAL SPECS:
• TL6020 (×3) — Center Hood Headlight:
3.37" Dia × 2" D | Round | Flood | 32W | 2.6A | 3,200 Lm each
Bolts directly into OEM housing — no modification required
• TLHL-9007 (×1) — 9007 LED Headlight Bulb:
Hi/Lo beam | Drop-in LED replacement for sealed-beam housing
• TL6120L (×1) — Left Front Upper Cab Corner w/Amber:
Flood/Amber Flashing | 30W | 3.3A | 3,000 Lm | Plug and Play

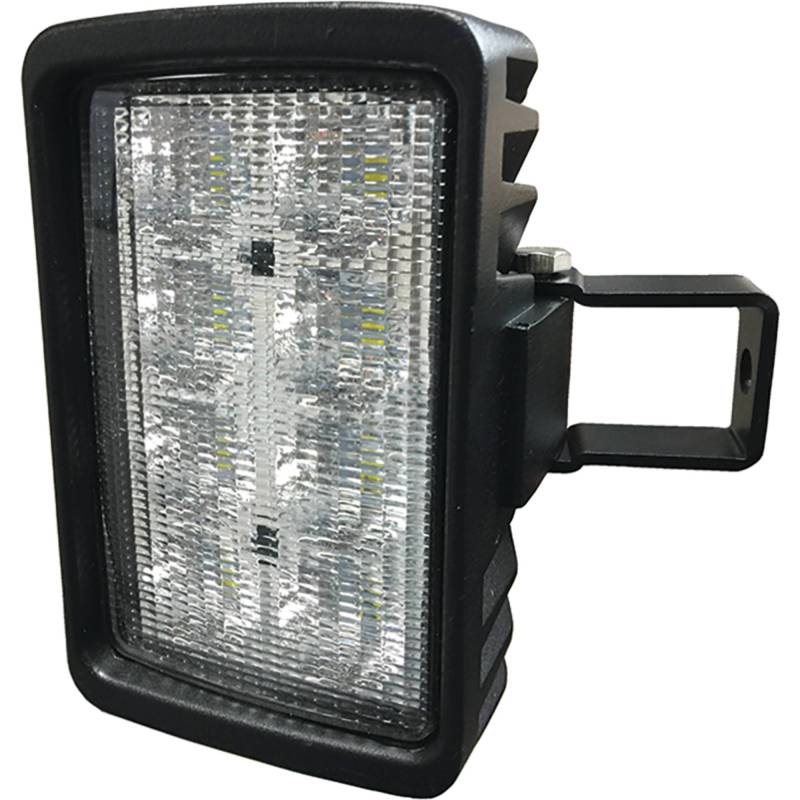

• TL6120R (×1) — Right Front Upper Cab Corner w/Amber:
Flood/Amber Flashing | 30W | 3.3A | 3,000 Lm | Plug and Play
• TL6130L (×1) — Left Rear Upper Cab Corner Amber:
Amber Flashing | 17W + 12W Resistor | 2.4A | Plug and Play
• TL6130R (×1) — Right Rear Upper Cab Corner Amber:
Amber Flashing | 17W + 12W Resistor | 2.4A | Plug and Play

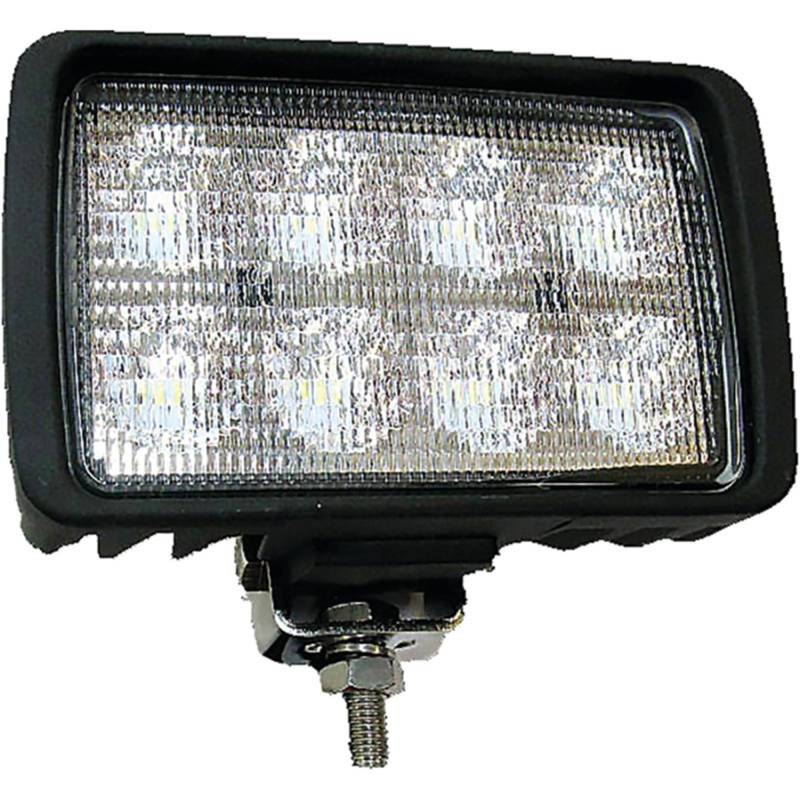

• TL3030 (×2) — Upper Rear Cab Work Lights:
6" W × 3.5" H × 3" D | Flood | 40W | 3.33A | 3,600 Lm each
• TL3085 (×2) — Rear Fender Work Lights:
6" W × 3.5" H × 3" D | Flood | 40W | 3.33A | 3,600 Lm each
Includes hollow bolt for hidden wire routing under fender
• TL3075 (×2) — Mid Mount Windshield Lights:
Flood | *Requires splicing into original wiring harness
TOTAL KIT SPECIFICATIONS:
• Total Wattage: 428W | Total Amperage: 35.6A | Total Lumens: 38,500
• Voltage: 12V–24V DC | Light Pattern: Spot / Flood Combo + Amber
• Fitment: Bolts into factory light housing | OEM Direct Replacement
• Technology: Plug and Play | Condition: New | Warranty: Limited Lifetime
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
