Cylinder Head Gasket Kit Compatible With Kohler Command Ch18 Ch20 Ch22 Ch25 18-25Hp Cub Cadet 3184

OEM PART NUMBERS (Supersession Chain):
• Kohler: 24 841 01-S / 2484101-S / 2484101S (Current Part Number)
• Kohler: 24-841-01-S / 24-841-01 / 24 841 01
• Kohler: 24 041 08-S / 2404108-S / 2404108S (Superseded by 24 841 01-S)
• Kohler: 24-041-08-S / 24-041-08 / 24 041 08
• Kohler: 32 041 03-S (Head Gasket Only — Single Component)

SPECIFICATIONS:
• Type: Cylinder Head Gasket Kit
• Cylinder Service: 1 Cylinder (Order 2 Kits for Complete V-Twin Service)

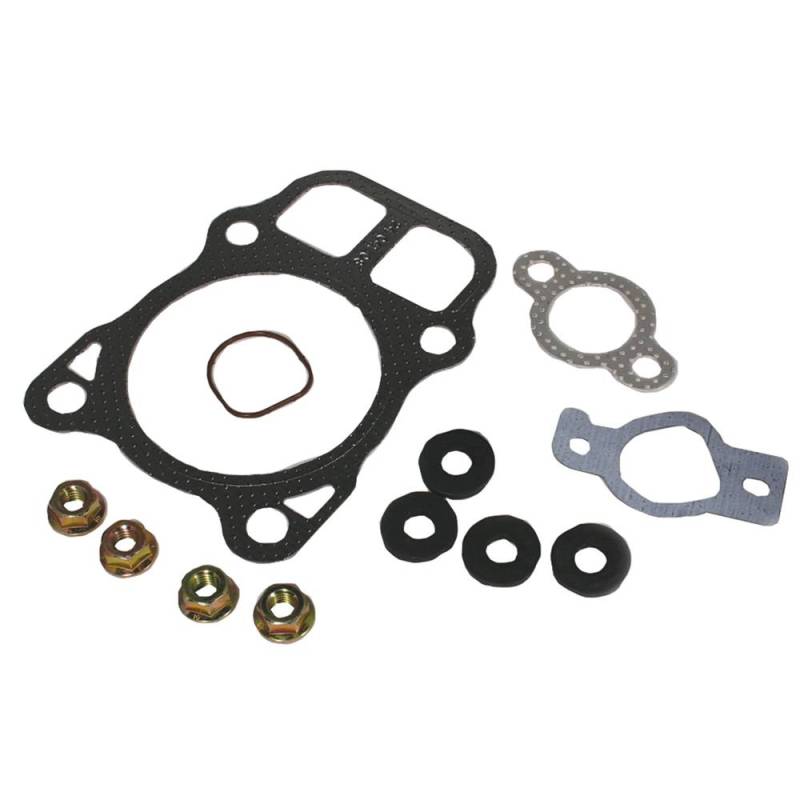

• Kit Includes: (1) Head Gasket, (2) Exhaust Gaskets, (2) Intake Gaskets, (4) Nuts, (2) O-Rings, (4) Washers
• Ethanol: Not Compatible with Greater Than 10% Ethanol Fuel
• Engine Series: Kohler Command V-Twin OHV Horizontal
• Engine Models: CH18, CH20, CH22, CH25
• HP Range: 18HP to 25HP
• Displacement: 624cc (CH18/CH20/CH22) / 725cc (CH25)
• Bore: 77mm (CH18/CH20/CH22) / 83mm (CH25)
• Stroke: 67mm (All Models)
• Compression: 8.5:1 (CH18-CH22) / 9.0:1 (CH25)
• Head Bolt Torque: 35.5 Nm (315 in. lb.) — Nut / 41.8 Nm (370 in. lb.) — Bolt
• Condition: New

CUB CADET / SCAG / SNAPPER / TORO / BOBCAT / EXMARK:
• Cub Cadet (10 models) / Scag Turf Tiger (6) / Snapper (10)
• Toro (7) / Bobcat 942105 / Exmark LZ25KC523

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
