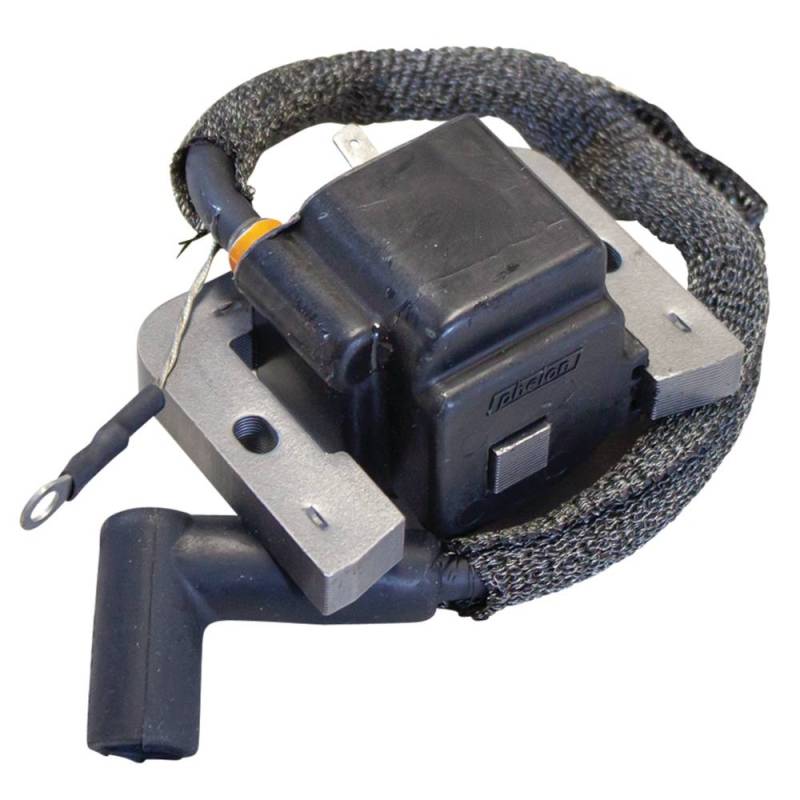

Digital Ignition Coil Module Compatible With Kohler Kt740 Kt745 7000 Series Zt740 Confidant 747Cc

OEM PART NUMBERS (Supersession Chain):
• Kohler: 24 584 176-S / 24584176-S / 24584176S (Current Part Number)
• Kohler: 24-584-176-S / 24-584-176
• Kohler: 24 584 109-S / 24584109-S / 24584109S (Superseded by 176-S)
• Kohler: 24 584 93-S / 2458493-S / 2458493S (Superseded by 176-S)

SPECIFICATIONS:
• Type: Digital Ignition Coil Module (Magneto Digital Ignition)
• Also Known As: Ignition Coil, Armature, Magneto, Ignition Module
• Module Air Gap: 0.203-0.305mm (0.008-0.012 in.)
• Spark Plug Gap: 0.76mm (0.030 in.) — V-Twin models
• Replace In Pairs: Both modules should be replaced simultaneously
• Sold: Individually (2 required per V-Twin engine, 1 per single-cyl)
• Condition: New

KOHLER COMMAND PRO APPLICATIONS (747cc V-Twin OHV 25HP):
• CH742 747cc V-Twin OHV Horizontal Shaft 25HP
• CV742 747cc V-Twin OHV Vertical Shaft 25HP

KOHLER 7000 / CONFIDANT SERIES (747cc V-Twin OHV):
• KT740 747cc 25HP, KT745 747cc 26HP (7000 Series)
• ZT740 747cc 25HP (Confidant Series)

KOHLER XT SERIES — Single-Cylinder OHV:
• XT675 149cc Single-Cyl OHV 4.3HP
• XT775 173cc Single-Cyl OHV

EQUIPMENT APPLICATIONS:
• John Deere, Exmark, Toro, Gravely, Ariens, Scag, Grasshopper Mowers
• Hustler, Bobcat, Wright Commercial Mowers
• Residential Walk-Behind Mowers with Kohler XT Engines

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
