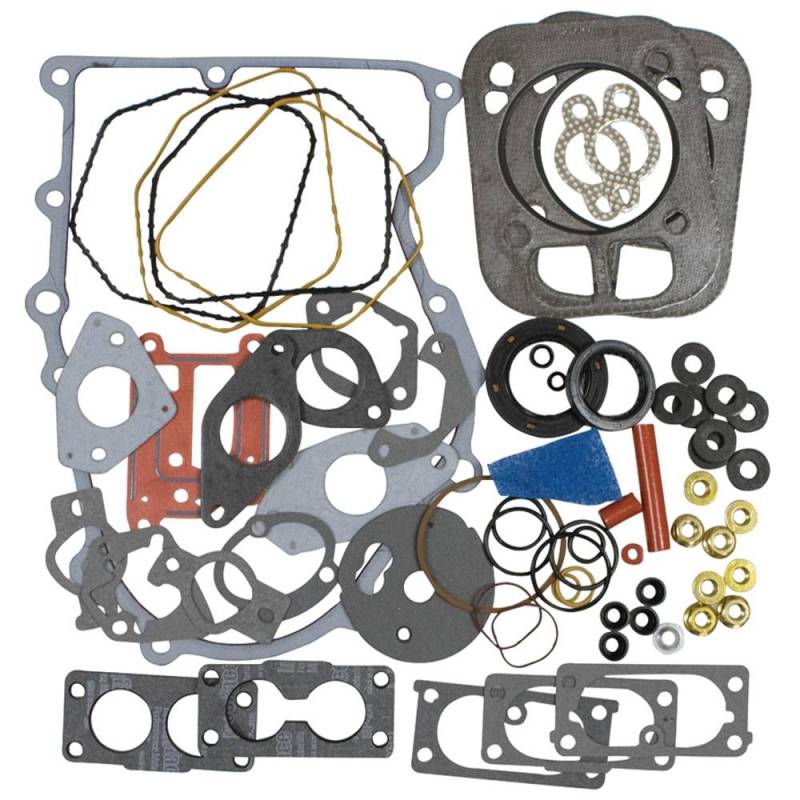

Complete Gasket Set Compatible With Kohler Ch25 Ch730 Cv25 Cv730 725Cc 83Mm Bore 24755207 24755208

(0) Reviews: Write first review
055-648A2
OEM PART NUMBERS:
• Kohler: 24755113 / 24 755 113
• Kohler: 24755113-S / 24 755 113-S
• Kohler: 24755158 / 24 755 158
• Kohler: 24755158-S / 24 755 158-S
• Kohler: 24755207 / 24 755 207
• Kohler: 24755207-S / 24 755 207-S
• Kohler: 24755208 / 24 755 208
• Kohler: 24755208-S / 24 755 208-S
• Kohler: 24755394-S / 24 755 394-S
• Kohler: 5475523 / 54 755 23
• Kohler: 5475523-S / 54 755 23-S
• MTD: KH-24-755-113-S
• MTD: KH-24-755-158-S
• MTD: KH-54-755-23-S

SUPERSESSION INFORMATION:
• 24755113-S superseded by 24755207-S
• 24755158-S superseded by 24755207-S
• 24755208-S superseded by 24755207-S
• Current replacement part: 24755207-S or 24755394-S

SPECIFICATIONS:
• Product Type: Complete Overhaul Gasket Set with Seals
• Engine Displacement: 725cc (44 cu.in.) / 747cc (46 cu.in.)
• Bore Size: 83mm (3.27 in.)
• Stroke: 67mm (2.64 in.) for 725cc / 69mm (2.72 in.) for 747cc
• Engine Type: 4-Cycle OHV (Overhead Valve) Gasoline
• Cylinder Configuration: V-Twin
• Block Material: Aluminum Block with Cast Iron Cylinder Liners
• Lubrication: Full Pressure Lubrication with Full-Flow Filter
• Ethanol Compatibility: Not compatible with greater than 10% ethanol fuel
• Condition: New

KOHLER ENGINE SERIES APPLICATIONS:
• Kohler Command CH Series: CH25 CH25S CH26 CH730 CH730S CH740 CH745 CH750
• Kohler Command CV Series: CV25 CV26 CV730 CV732 CV740 CV742 CV750 CV752
• Kohler Command Pro EFI Series: ECH730 ECH740 ECH749 ECV730 ECV740 ECV749
• Displacement Range: 725cc to 747cc (44 cu.in. to 46 cu.in.)
• Horsepower Range: 25HP to 30HP

EQUIPMENT TYPE APPLICATIONS:
• Cub Cadet Lawn Tractors (LT1050 series 2007 and before)
• Toro Z Master Zero-Turn Mowers (Z588E Z560 series)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $440.79
Sale: $251.88
Save: 43%
Save: $188.91
Qty:
Free Shipping!

Description

KOHLER COMMAND CH SERIES — 725cc / 747cc 4-Cycle OHV:
• CH25 Kohler Command 725cc (44 cu.in.) 83mm Bore 67mm Stroke 4-Cycle OHV 25HP
• CH25S Kohler Command 725cc (44 cu.in.) 83mm Bore 67mm Stroke 4-Cycle OHV 25HP
• CH26 Kohler Command 725cc (44 cu.in.) 83mm Bore 4-Cycle OHV 26HP Aluminum Block Cast Iron Liners
• CH730 Kohler Command Pro 725cc (44 cu.in.) 83mm Bore 67mm Stroke 4-Cycle OHV Commercial Grade
• CH730S Kohler Command Pro 725cc (44 cu.in.) 83mm Bore 4-Cycle OHV
• CH740 Kohler Command Pro 725cc (44 cu.in.) 83mm Bore 67mm Stroke 4-Cycle OHV
• CH745 Kohler Command Pro 725cc (44 cu.in.) 83mm Bore 4-Cycle OHV Commercial Engine
• CH750 Kohler Command Pro 747cc (46 cu.in.) 83mm Bore 69mm Stroke 4-Cycle OHV 27-30HP

KOHLER COMMAND CV SERIES — 725cc / 747cc 4-Cycle OHV:
• CV25 Kohler Command 725cc (44 cu.in.) 83mm Bore 67mm Stroke 4-Cycle OHV 25HP Full Pressure Lubrication
• CV26 Kohler Command 725cc (44 cu.in.) 83mm Bore 4-Cycle OHV 26HP Aluminum Block Cast Iron Cylinder Liners
• CV730 Kohler Command Pro 725cc (44 cu.in.) 83mm Bore 4-Cycle OHV 25HP Commercial Grade
• CV732 Kohler Command Pro 725cc (44 cu.in.) 83mm Bore 4-Cycle OHV
• CV740 Kohler Command Pro 725cc (44 cu.in.) 83mm Bore 67mm Stroke 4-Cycle OHV 27HP
• CV742 Kohler Command Pro 725cc (44 cu.in.) 83mm Bore 4-Cycle OHV Commercial Applications
• CV750 Kohler Command Pro 747cc (46 cu.in.) 83mm Bore 69mm Stroke 4-Cycle OHV 30HP
• CV752 Kohler Command Pro 747cc (46 cu.in.) 83mm Bore 69mm Stroke 4-Cycle OHV

KOHLER ECH/ECV ELECTRONIC FUEL INJECTION SERIES — 725cc:
• ECH730 Kohler Command Pro EFI 725cc (44 cu.in.) 83mm Bore Electronic Fuel Injection 4-Cycle OHV
• ECH740 Kohler Command Pro EFI 725cc (44 cu.in.) 83mm Bore 67mm Stroke Electronic Fuel Injection OHV
• ECH749 Kohler Command Pro EFI 725cc (44 cu.in.) 83mm Bore Electronic Fuel Injection 4-Cycle OHV
• ECV730 Kohler Command Pro EFI 725cc (44 cu.in.) 83mm Bore Electronic Fuel Injection 4-Cycle OHV
• ECV740 Kohler Command Pro EFI 725cc (44 cu.in.) 83mm Bore 67mm Stroke Electronic Fuel Injection OHV
• ECV749 Kohler Command Pro EFI 725cc (44 cu.in.) 83mm Bore Electronic Fuel Injection 4-Cycle OHV

CUB CADET LAWN TRACTORS — Kohler Command Engine:
• LT1050 Cub Cadet 50" Lawn Tractor Kohler Command CH25 725cc 4-Cycle OHV 25HP (2007 and Before) Model 13AQ11CP709
• LT1050 Cub Cadet 50" Lawn Tractor Kohler Command CH25 725cc 4-Cycle OHV 25HP (2007 and Before) Model 13AQ11CP710

TORO Z MASTER ZERO-TURN MOWERS — Kohler Command Pro:
• Z588E Toro Z Master 60" TURBO FORCE Side Discharge Deck Kohler CH745 725cc 4-Cycle OHV Commercial (Model 74255)
• Z588E Toro Z Master 72" TURBO FORCE Side Discharge Deck Kohler CH745 725cc 4-Cycle OHV Commercial (Model 74256)
• Z560 Toro Z Master 52" TURBO FORCE Side Discharge Deck Kohler CH750 747cc 4-Cycle OHV 27-30HP (Model 74261)
• Toro Z Master Commercial Zero-Turn Mower Kohler Command Pro 725cc-747cc (Model 74262)
• Toro Z Master Commercial Zero-Turn Mower Kohler Command Pro 725cc-747cc (Model 74262CP)
• Toro Z Master Commercial Zero-Turn Mower Kohler Command Pro 725cc-747cc (Model 74262TE)
• Toro Z Master Commercial Zero-Turn Mower Kohler Command Pro 725cc-747cc (Model 74263)
• Toro Z Master Commercial Zero-Turn Mower Kohler Command Pro 725cc-747cc (Model 74263CP)

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 1.0 lbs.
  • W8.5000” x H0.3000” x L12.0000”
  • Free Shipping!
