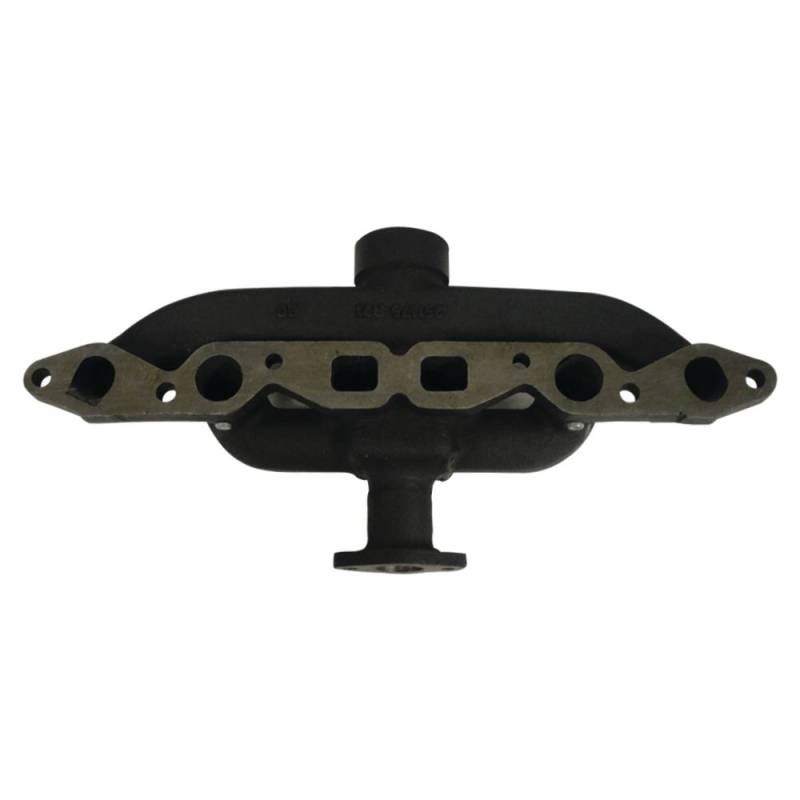

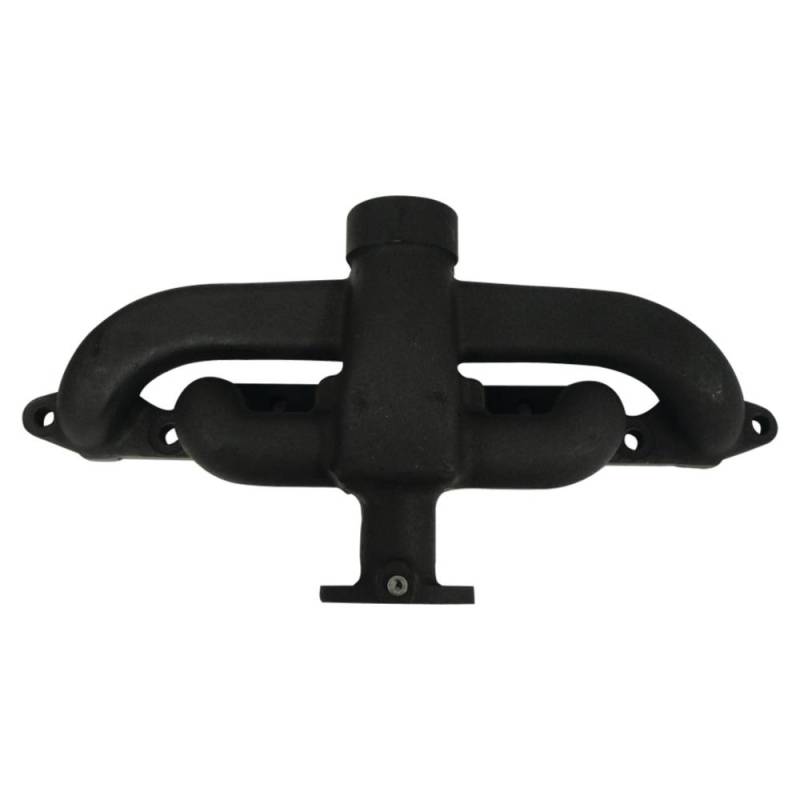

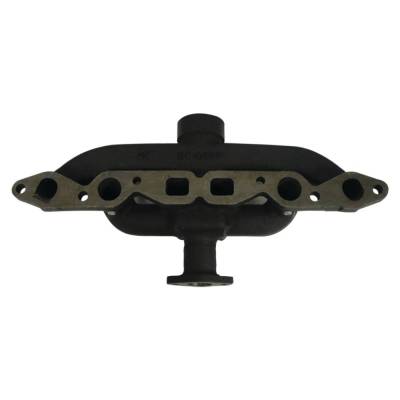

Intake Exhaust Manifold Cast Iron Compatible With Farmall 100 200 230 240 Tractor Ih C-123 122.7 Cid

1709-0989A2
International Harvester :
• 251175R11 (Current Revision)
• 251175R21 (Alternate Revision)
• 251175R1 (Original — Superseded by R11/R21)
• T11298 (Alternate Designation)

Related Gaskets (Sold Separately):
• 352014R2 — Intake/Exhaust Manifold Gasket Set
• 352014R4 — Updated Gasket Set (Substitute for R1/R2/R3)
• Stens 1709-0900 — Replacement Gasket Set

Fuel Type Compatibility:
• GASOLINE ENGINES ONLY
• Diesel, Kerosene, and LPG variants use DIFFERENT manifolds
• NOT Interchangeable between fuel types

Product Specifications:
• Type: Combined Intake and Exhaust Manifold — One-Piece
• Material: Cast Iron
• Exhaust Port OD: 1 inch
• Includes: 6 inch Short Exhaust Pipe
• Stud Size: 3/8 inch — Coarse Thread (Block) / Fine Thread (Nut)
• Compatible Engines: IH C-113 (113.1ci / 1.9L) and C-123 (122.7ci / 2.0L)
• Fuel Type: GASOLINE ONLY
• Application: Farmall A, Super A, B, BN, C, Super C, 100, 200, 230, 240

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $339.33
Sale: $193.90
Save: 43%
Save: $145.43
Qty:
Free Shipping!

Description

Farmall — IH C-113 Engine (113.1ci / 1.9L):
• Farmall A — 16 HP at 1,400 RPM — 1939-1954
• Farmall Super A — 16 HP at 1,400 RPM — 1947-1954
• Farmall B — 17.3 HP Drawbar / 19.2 HP Belt — 1,400 RPM — 1938-1947
• Farmall BN — Narrow-Tread Version of B — 1940-1947
• Farmall C — 23 HP at 1,400 RPM — 1948-1951
• Farmall Super C — Upgraded C — 1951-1954
• Bore: 3.00 inch × Stroke: 4.00 inch
• Compression Ratio: 5.33:1

Farmall — IH C-123 Engine (122.7ci / 2.0L):
• Farmall 100 — 22 HP at 1,600 RPM — 1954-1956
• Farmall 200 — 26 HP at 1,600 RPM — 1954-1956
• Farmall 230 — 1956-1958
• Farmall 240 — 34 HP at 2,000 RPM — 1958-1961
• Bore: 3.125 inch × Stroke: 4.00 inch
• Compression Ratio: 6.5:1 (100/200) to 7.3:1 (240)

Engine Notes:
• C-113: 4-Cylinder I-Head (Overhead Intake / Side Exhaust) Gasoline
• C-123: 4-Cylinder I-Head Gasoline — Larger Bore Than C-113
• Both Engines Naturally Aspirated
• C-113 and C-123 share same block architecture and manifold bolt pattern

Production Notes:
• Farmall A replaced the F-14 in 1939
• Farmall B was the narrow offset-design version
• Farmall C introduced the Touch-Control hydraulic system
• 100/200 series introduced 1954 with improved styling
• 230/240 continued the small utility line through 1961
• Total span: 23 years of production (1938-1961)
