Mdi Module Conversion Kit With Flywheel Asam Replacement Compatible With Kohler Command Ch22 Ch23

OEM PART NUMBERS:
• Kohler: 24 755 308-S / 24-755-308-S / 24755308S / 24755308-S
• Replaces ASAM Module: 24 584 09-S / 2458409S
• Replaces ASAM Module: 24 584 10-S / 2458410S
• Replaces ASAM Ignition Modules: 24 584 15-S / 2458415S

SPECIFICATIONS:
• Type: ASAM/MDI Conversion Kit — Complete Ignition System Upgrade
• Converts: ASAM (Analog Spark Advance Module) to MDI (Magneto Digital Ignition)

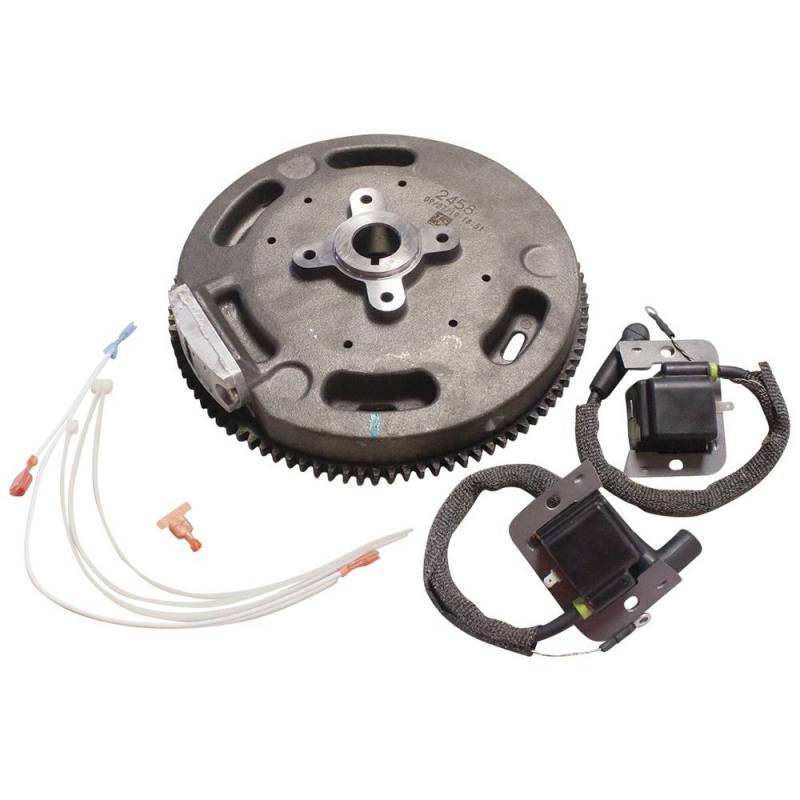

• Kit Contents: New Flywheel + New Ignition Modules + Modules Harness
• Power: Magneto-Powered — No 12V Battery Required for Spark Advance
• Engine Types: Kohler Command CH22-CH25 and CV22-CV25 Twin
• Engine Spec Numbers: 68xxx and 69xxx Series
• HP Range: 22HP to 25HP
• Reference: Kohler Service Bulletin PB 265
• Condition: New

WHY THIS KIT EXISTS:
• Kohler discontinued ASAM modules (24 584 09-S and 24 584 10-S)
• No direct replacement components available for ASAM system
• Per Kohler bulletin PB 265, MDI conversion is the approved solution
• Kit includes new flywheel because MDI requires different flywheel magnets
• MDI provides magneto-powered spark — works even with low/dead battery

ENGINE APPLICATIONS:
• CH22 / CH23 / CH25 (Horizontal, Spec #68xxx, 69xxx)
• CV22 / CV23 / CV25 (Vertical, Spec #68xxx, 69xxx)
