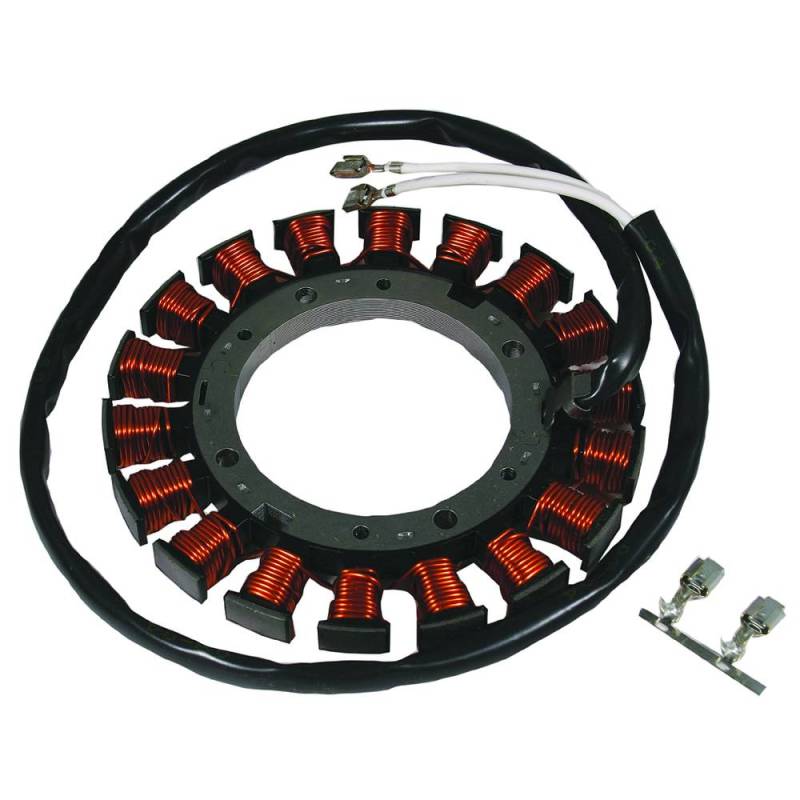

Stator Assembly Compatible With Kohler Ch11-Ch15 K181 K241 K301 Command Replaces 234859 237716-S

OEM PART NUMBERS:
• Kohler: 234859, 237329, 237330, 237331, 237399, A-237329
• Kohler: 237716 / 237716-S, 237878 / 237878-S
• Kohler: 24 085 01 / 24-085-01 / 24 085 01-S / 24-085-01-S / 2408501 / 2408501-S
• Kohler: 24 085 03 / 24-085-03 / 24 085 03-S / 24-085-03-S / 2408503 / 2408503-S
• Kohler: 41 085 05 / 41-085-05 / 41 085 05-S / 41-085-05-S / 4108505 / 4108505-S
• Kohler: 41 085 07 / 41-085-07 / 4108507
• Kohler: 47 085 01 / 47-085-01 / 4708501
• Kohler: 47 085 02 / 47-085-02 / 4708502
• Kohler: 47 085 11 / 47-085-11 / 4708511
• Kohler: 54 755 09-S / 54-755-09-S / 5475509-S / 5475509S
• Kohler: 52 755 09-S / 52-755-09-S / 5275509-S / 5275509S

SPECIFICATIONS:
• Product Type: 15 Amp Stator Kit
• Output: 15 Amp Charging System
• Inner Diameter: 70.5mm
• Outer Diameter: 138mm
• Mounting Hole Distance: 81mm (center to center)
• Condition: New Aftermarket Replacement

ENGINE APPLICATIONS:
• Kohler Command CH-Series: CH11-CH25, CH620-CH680 (398cc-674cc)
• Kohler Command CV-Series: CV11-CV22, CV620-CV640 (398cc-624cc)
• Kohler K-Series Magnum: K161, K181, K241, K301, K321, K341 (398cc-841cc)

EQUIPMENT BRANDS:
• Craftsman 917/247-series lawn tractors (100+ models with Kohler)
• Ariens zero-turn mowers (5+ models)
• Bobcat zero-turns and equipment (6+ models)
• Cub Cadet garden tractors with Kohler engines
• Simplicity, Snapper, Ferris, Gravely equipment with Kohler

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
