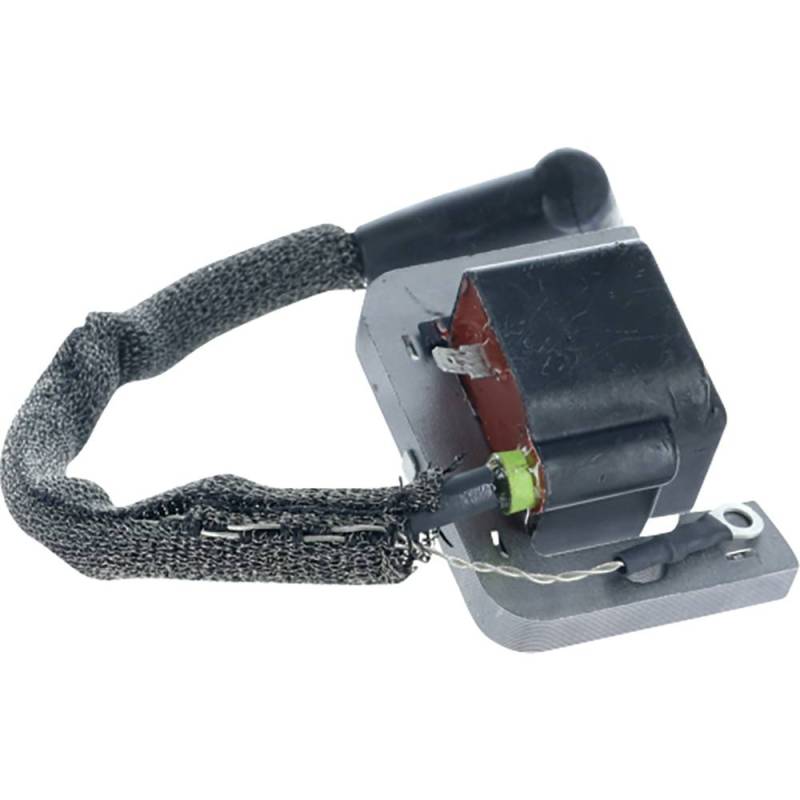

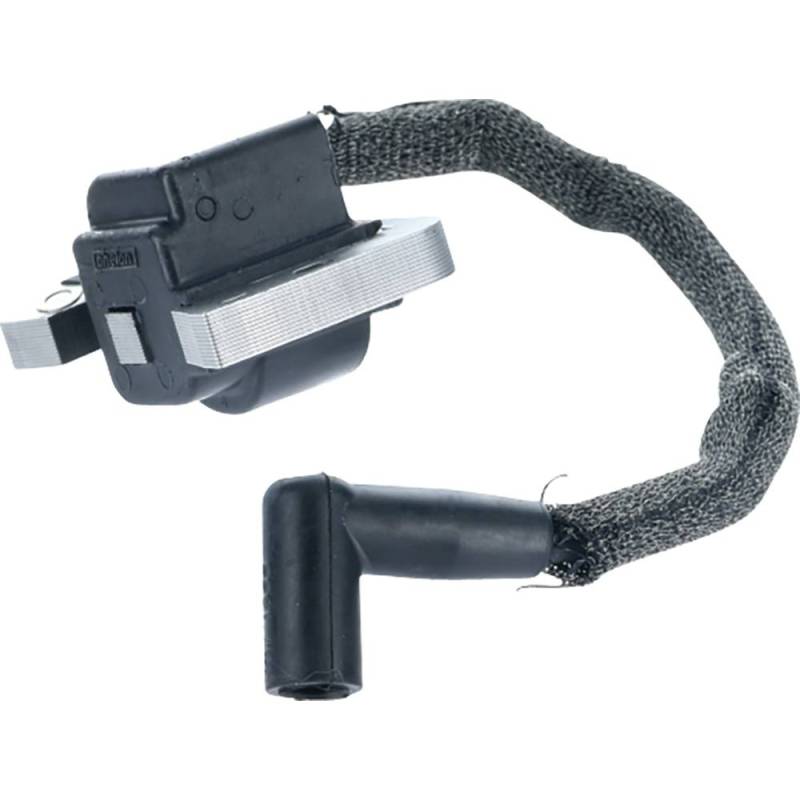

Mdi Ignition Module Conversion Kit Compatible With Kohler Command Ch740 Ch750 Cv740 Cv750 725Cc

(0) Reviews: Write first review
055-624A1
OEM PART NUMBERS:
• Kohler: 25 707 03-S / 2570703S (MDI Module Conversion Kit)
• Kohler: 24 584 52-S / 2458452S (superseded ignition module - CH/CV740)
• Kohler: 24 584 53-S / 2458453S (superseded ignition module - CH/CV750)
• Kohler: 24 584 63-S / 2458463S (superseded ignition module - CH/CV740)
• Kohler: 24 584 64-S / 2458464S (superseded ignition module - CH/CV750)
• Kohler: 24 584 89-S / 2458489S (superseded ignition module - CH/CV740)
• Kohler: 24 584 90-S / 2458490S (superseded ignition module - CH/CV750)
• Kohler: 24 584 30-S / 2458430S (superseded ignition module)
• Kohler: 24 584 31-S / 2458431S (superseded speed advance module)
• Kohler: 24 584 38-S / 2458438S (superseded ignition module)
• Kohler: 24 584 39-S / 2458439S (superseded speed advance module - CH/CV750)
• Kohler: 24 584 41-S / 2458441S (superseded ignition module)
• Kohler: 24 755 162-S / 24755162S (superseded ignition coil kit)
• Kohler: 24 755 172-S / 24755172S (superseded ignition coil kit)
• Kohler: 24 755 173-S / 24755173S (superseded ignition coil kit)
• Bad Boy: 015-2000-00

SPECIFICATIONS:
• Type: MDI Module Conversion Kit (DSAI to MDI)
• System: Magneto Digital Ignition (replaces 12V DSAI)
• Conversion: 3-Wire DSAI to 1-Wire MDI System

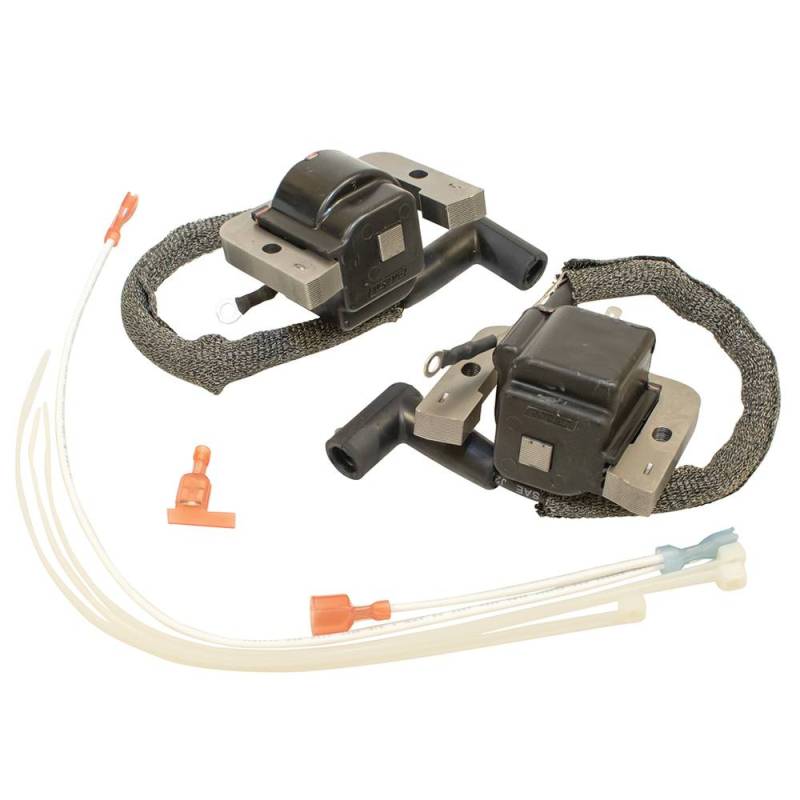

• Kit Includes: (2) MDI Ignition Modules, (1) Duplex Lead Harness, (1) Terminal, (3) Cable Ties, (1) Installation Instructions, (1) Fixed Guard Label
• Reuses: Original Engine Wire Harness
• Replaces: 2 or 3 Terminal Ignition Modules
• Engine Type: Command V-Twin OHV 4-Stroke
• Condition: New

KOHLER COMMAND ENGINE APPLICATIONS (DSAI Equipped):
• CH20 624cc 20HP / CH23 674cc 23HP / CH640 624cc Command PRO
• CH740/CV740 725cc 27HP Command PRO
• CH750/CV750 747cc Command PRO

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $492.71
Sale: $281.55
Save: 43%
Save: $211.16
Qty:
Free Shipping!

Description

KOHLER COMMAND HORIZONTAL (CH) — V-Twin OHV 4-Stroke (DSAI Equipped):
• Kohler CH20 Command 624cc V-Twin OHV 4-Stroke 20HP (select specs with DSAI ignition)
• Kohler CH23 Command 674cc V-Twin OHV 4-Stroke 23HP (select specs with DSAI ignition)
• Kohler CH640 Command PRO 624cc V-Twin OHV 4-Stroke (select specs with DSAI ignition)
• Kohler CH740 Command PRO 725cc V-Twin OHV 4-Stroke 27HP (select specs with DSAI ignition)
• Kohler CH750 Command PRO 747cc V-Twin OHV 4-Stroke (select specs with DSAI ignition)

KOHLER COMMAND VERTICAL (CV) — V-Twin OHV 4-Stroke (DSAI Equipped):
• Kohler CV740 Command PRO 725cc V-Twin OHV 4-Stroke 27HP (select specs with DSAI ignition)
• Kohler CV750 Command PRO 747cc V-Twin OHV 4-Stroke (select specs with DSAI ignition)

NOTE — DSAI TO MDI CONVERSION:
• This kit replaces the discontinued Kohler 12V DSAI (Digital Spark Advanced Ignition) system with the new magneto-powered MDI (Magneto Digital Ignition) system
• Converts from 3-wire DSAI system to 1-wire MDI system while reusing original engine wire harness
• Replaces ignition modules with 2 or 3 terminals on Command Twin engines
• For SV735/SV740/SV840 Courage engines, use Kohler 32 707 01-S MDI kit instead
• Verify engine model and spec number before ordering — not all specs within listed models use DSAI

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 1.9 lbs.
  • W5.2500” x H3.5000” x L8.2000”
  • Free Shipping!
