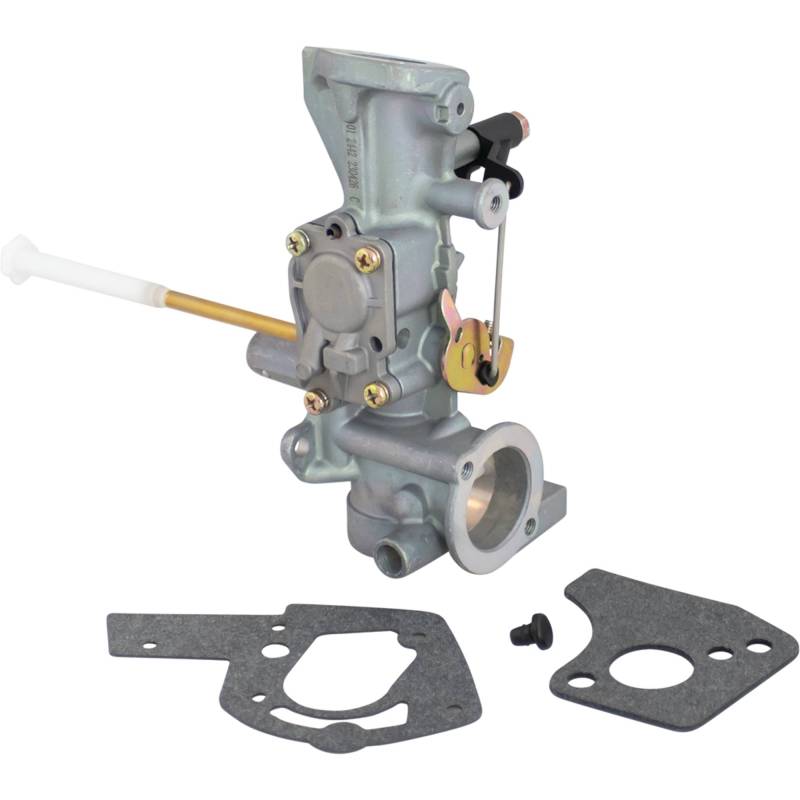

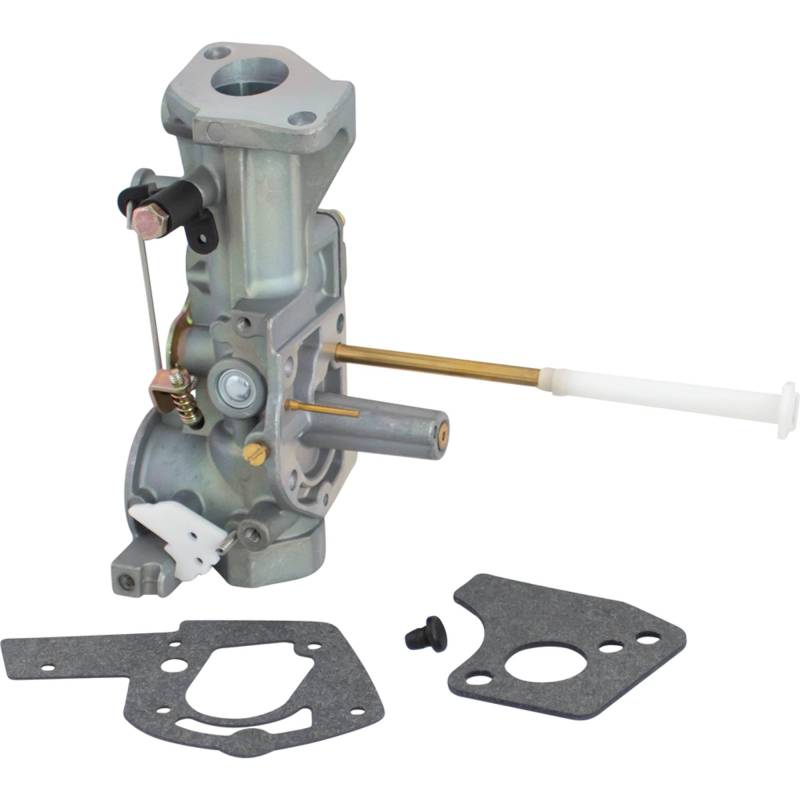

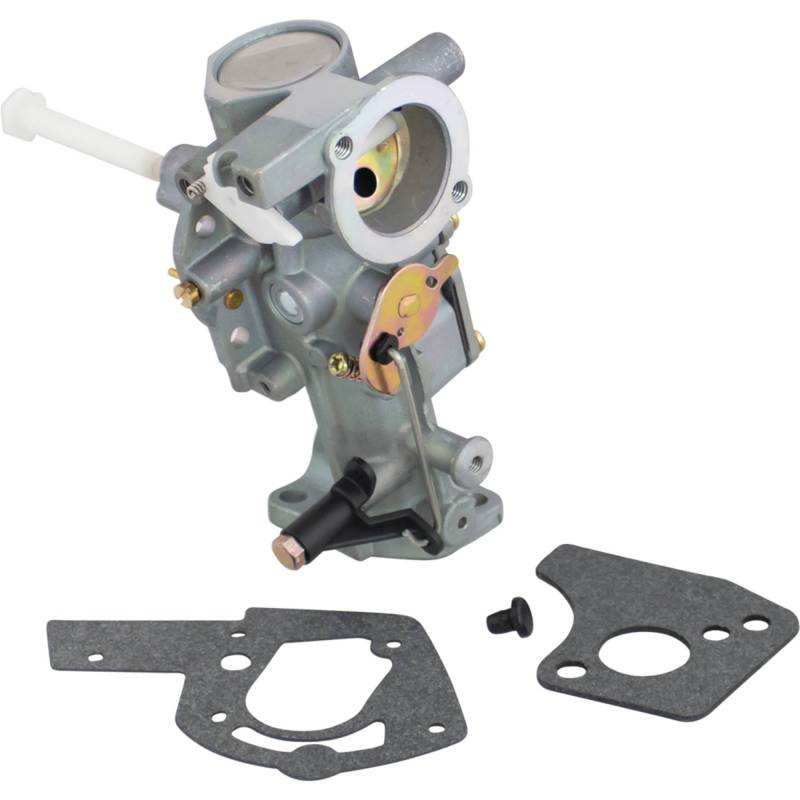

5Hp Carburetor Compatible With 112202 112212 112231 112232 130232 133202 134202 137212 206Cc L-Head

OEM PART NUMBERS:
• Briggs & Stratton: 495426 (superseded by 498298)
• Briggs & Stratton: 492611 (superseded by 498298)
• Briggs & Stratton: 498298 (current)
• Briggs & Stratton: 490533 (superseded by 498298)
• Briggs & Stratton: 692784 (superseded by 498298)
• Briggs & Stratton: 495951 (superseded by 498298)

SPECIFICATIONS:
• Type: Carburetor — L-Head (Flathead)
• Configuration: Single Cylinder Horizontal Shaft Air-Cooled 4-Stroke
• Displacement: 206cc (12.56 cu in)
• Bore: 2 9/16" (65.09mm)
• Stroke: 2 7/16" (61.91mm)
• Power: 5HP @ 3600 RPM
• Oil Capacity: 21 oz (0.6L)
• Ignition: Magnetron Electronic
• Spark Plug Gap: 0.030" (0.76mm)
• Ethanol: Not Compatible with Greater Than 10% Ethanol Fuel
• Condition: New

APPLICATION:
• 112202 / 112212 / 112231 / 112232 L-Head Horizontal Shaft
• 130232 / 133202 / 133212 / 133232 / 133237 / 134202 / 137212 L-Head 5HP
• 135202 / 135212 / 135232 / 135237 / 135252 / 135292 / 135297 L-Head 5HP
• Ariens 901021 / Craftsman 917292403 / 917295550 / 917298560 / Yard Machines 24A-462B118
• Does not fit all applications — verify part number by referring to model specifications

5HP L-Head Carburetor — 495426 / 492611 / 490533 / 498298
New carburetor for Briggs & Stratton L-head horizontal shaft single cylinder engines. Replaces 495426, 492611, and 490533, all superseded by current 498298. Also replaces 692784 and 495951. Fits 112000 through 137000 series 5HP 206cc engines. Bore 2 9/16", stroke 2 7/16". Magnetron electronic ignition. Regular unleaded 77+ octane fuel required.
