IH FARMALL A SERIES (1939-1954):
• Farmall A (1939-1947) - IH C113 Gas, 4-Cyl OHV, 113ci (1.9L), 3.00x4.00", ~16-20HP, 1400 RPM
• Farmall AV (1939-1947) - IH C113 Gas, High-Clearance Variant, 5" Extra Ground Clearance
• Farmall Super A (1947-1954) - IH C113 Gas, 4-Cyl OHV, 113ci, w/Hydraulic Lift
IH FARMALL B SERIES (1939-1947):
• Farmall B (1939-1947) - IH C113 Gas, 4-Cyl OHV, 113ci, Centered Engine/Offset Seat
• Farmall BN (1939-1947) - IH C113 Gas, Narrow Front Variant
IH FARMALL C SERIES (1948-1954):
• Farmall C (1948-1951) - IH C113 Gas, 4-Cyl OHV, 113ci, ~20HP, 1400 RPM
• Farmall Super C (1951-1954) - IH C123 Gas, 4-Cyl OHV, 123ci (2.0L), 3.13x4.00", 26HP
ENGINE SPECIFICATIONS:
• IH C113: 113ci (1.9L), 4-Cyl OHV Inline, 3.00x4.00" Bore/Stroke, 6:1 Compression, 1400 RPM
• IH C123: 123ci (2.0L), 4-Cyl OHV Inline, 3.13x4.00" Bore/Stroke, 6:1 Compression, 1400 RPM
• Fuel: Gasoline / Kerosene / Distillate
• Firing Order: 1-3-4-2
• Oil Capacity: 5 Quarts

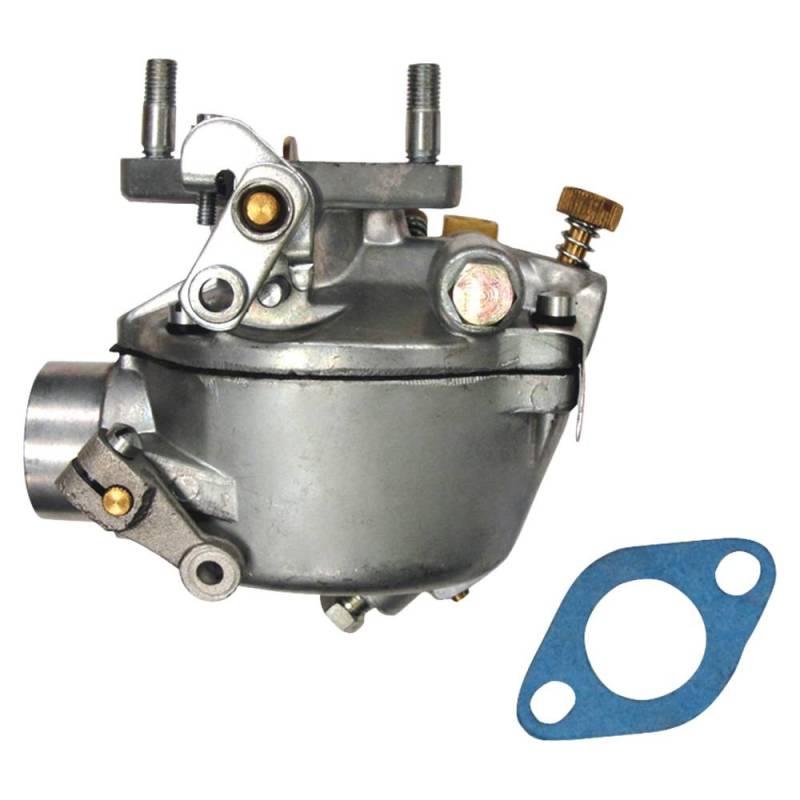

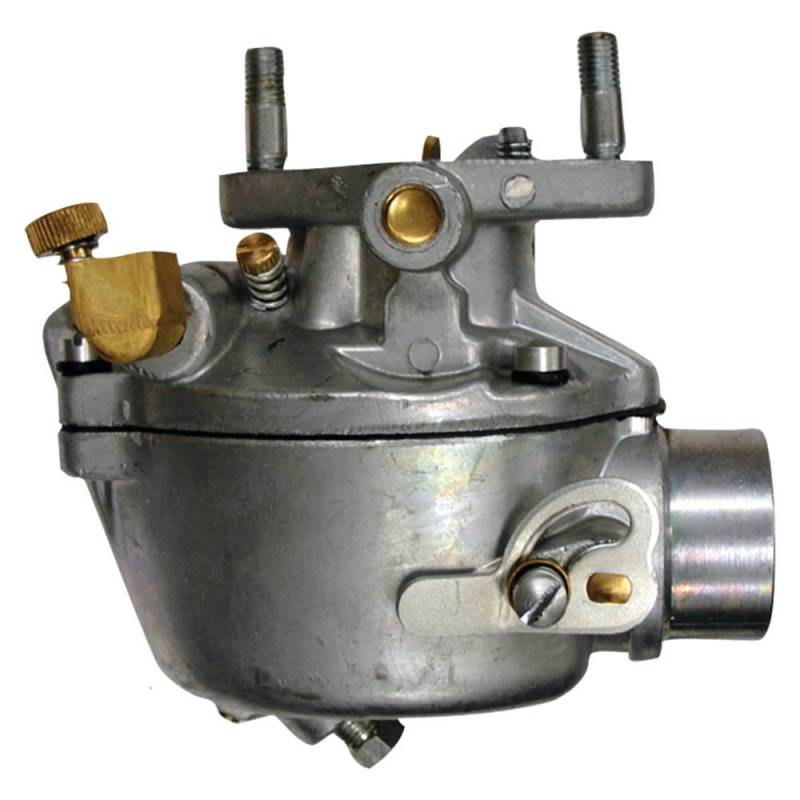

CARBURETOR SPECIFICATIONS:
• Type: Marvel Schebler Style Updraft
• Mounting: 2-3/8" Center to Center
• Throttle Throat: 1-1/16" Diameter
• Choke Air Horn: 1-1/2" OD
• Fuel Inlet: 1/8" NPT
• Gasket Included
• Replaces Marvel Schebler and Carter Carburetors
