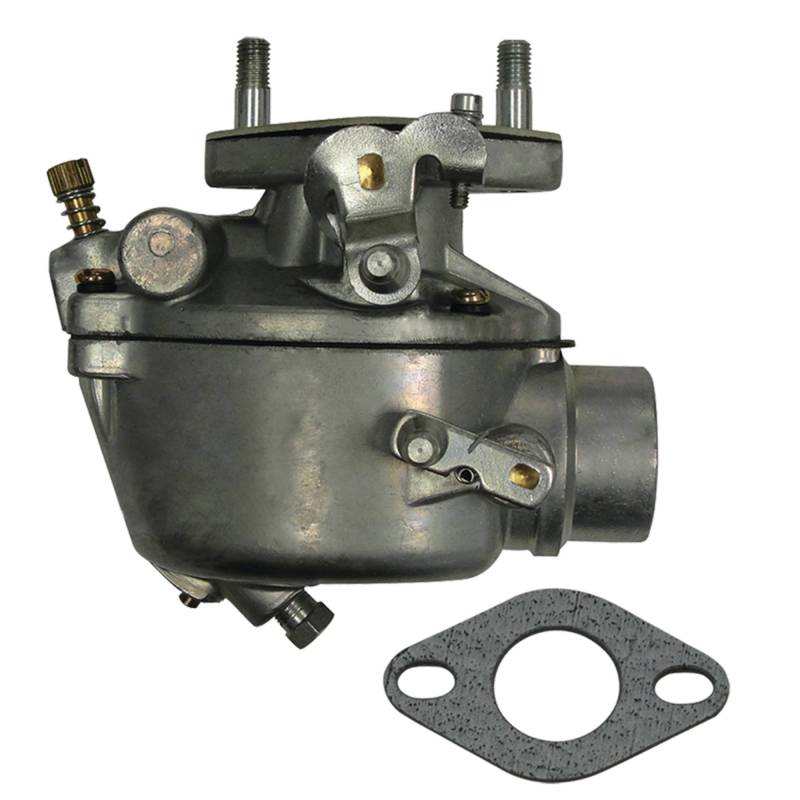

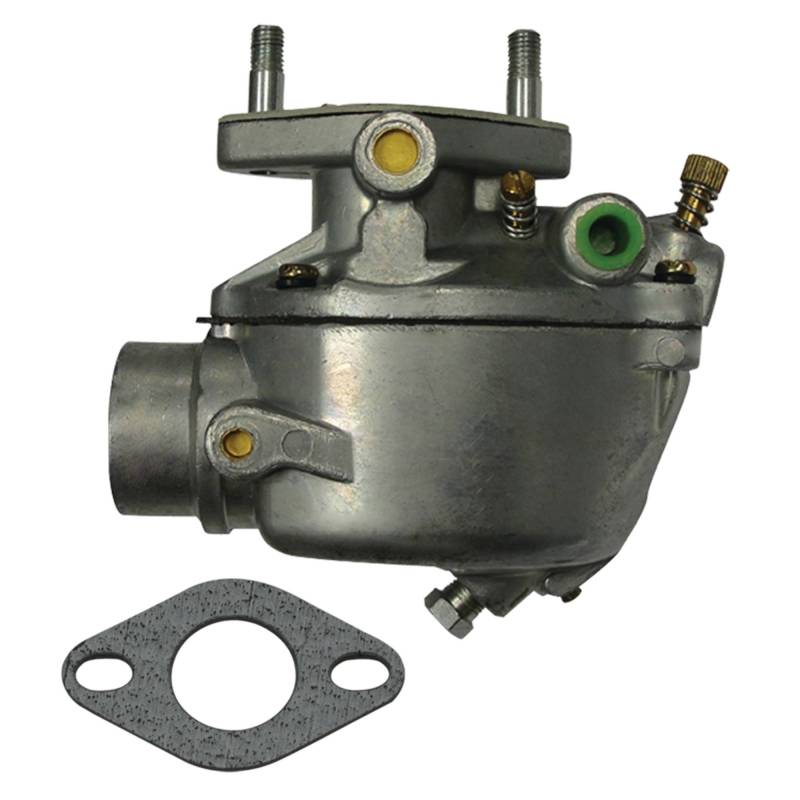

Marvel Schebler Tsx33 Tsx241 Carburetor Compatible With Ford 8N 9N 2N Tractor 120Ci Flathead Gas

1103-0000A1
FORD OEM:
• 8N9510C / 8N9510C-HD
• 9N9510A / B3NN9510A

MARVEL SCHEBLER CARBURETOR NUMBERS:
• TSX33 / TSX241A / TSX241B / TSX241C

ZENITH CARBURETOR NUMBERS:
• 0-13876 / 13876

ADDITIONAL:
• FSC30-0032
• All States Ag Parts 100763

SPECIFICATIONS:
• Type: Marvel Schebler Style Updraft Carburetor
• Mounting Bolt Spacing: 2-1/4" Center to Center
• Throttle Bore Throat: 1-1/16" Diameter
• Choke Air Horn OD: 1-5/16"
• Fuel Inlet: 1/8" NPT
• Engine: Ford 120ci 4-Cyl Flathead Gas
• Gasket: Included
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $299.20
Sale: $170.97
Save: 43%
Save: $128.23
Qty:
Free Shipping!

Description

FORD N-SERIES TRACTORS (1939-1952):
• Ford 9N (1939-1942) - Ford 120ci (2.0L) 4-Cyl Flathead Gas
- 3.1875" Bore x 3.75" Stroke, ~23HP at 2000 RPM
- First Tractor with Ferguson System 3-Point Hitch
- Introduced 1939 in Handshake Agreement with Harry Ferguson
• Ford 2N (1942-1947) - Ford 120ci 4-Cyl Flathead Gas
- Wartime Production Model with Simplified Features
- Steel Wheels Available Due to Rubber Shortages
- Magneto Ignition (No Battery/Generator on Early Models)
• Ford 8N (1947-1952) - Ford 120ci 4-Cyl Flathead Gas
- ~27HP at 2000 RPM (Increased Over 9N/2N)
- New 4-Speed Transmission (vs 3-Speed on 9N/2N)
- Position Control Hydraulics
- Over 524,000 Units Produced (Most Popular Single Model)

NOTE:
• For 120ci FLATHEAD engines ONLY
• Does NOT fit OHV engines (NAA/Jubilee and later)
• Does NOT fit Ferguson TE20/TO20/TO30
• Carburetor mounts on RIGHT side of flathead engine

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 4.1 lbs.
  • W5.6000” x H4.5000” x L5.6000”
  • Free Shipping!
