Carburetor Compatible With Fc420v Fd611v 423Cc 14Hp Single Cylinder Ohv 4-Stroke Vertical Shaft

OEM PART NUMBERS:
• Kawasaki: 15003-2349
• MTD: KM-15003-2349
• Cross Reference: 15003-2153 / 150032153
• Cross Reference: 15003-2154 / 150032154
• Cross Reference: 15003-2347 / 150032347
• Cross Reference: 15001-2972 / 150012972
• Cross Reference: 15001-2987 / 150012987

SPECIFICATIONS:
• Type: Carburetor Assembly with Gaskets
• Engine Series: FC420V / FD611V
• Displacement: 423cc (25.8 cu in)
• Bore x Stroke: 89.0mm x 68.0mm (3.50" x 2.68")
• Horsepower: 14 HP (10.4 kW) at 3,600 RPM
• Maximum Torque: 22.6 ft-lbs (30.6 Nm) at 2,400 RPM
• Mounting: 60mm Hole-to-Hole
• Ethanol: Not compatible with greater than 10% ethanol fuel
• Condition: New

APPLICATION:
• FC420V 423cc 14HP single cylinder OHV 4-stroke vertical shaft engine
• FD611V 4-stroke engine (AS00/BS00/CS00/DS00 specs)
• Riding mowers, lawn tractors, and commercial walk-behind mowers
• Does not fit all FC420V applications — verify part number by referring to model specifications

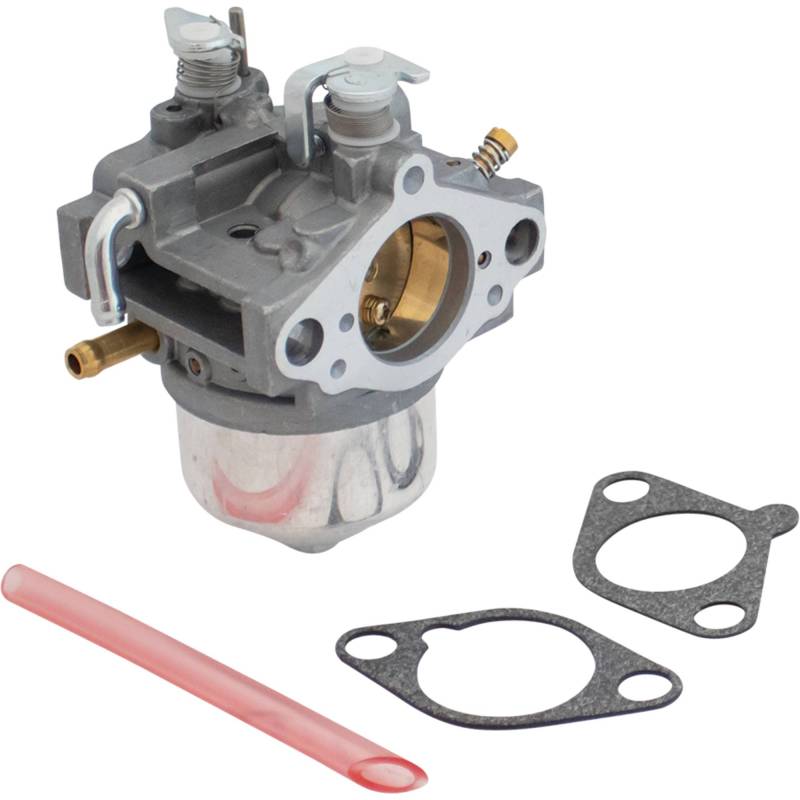

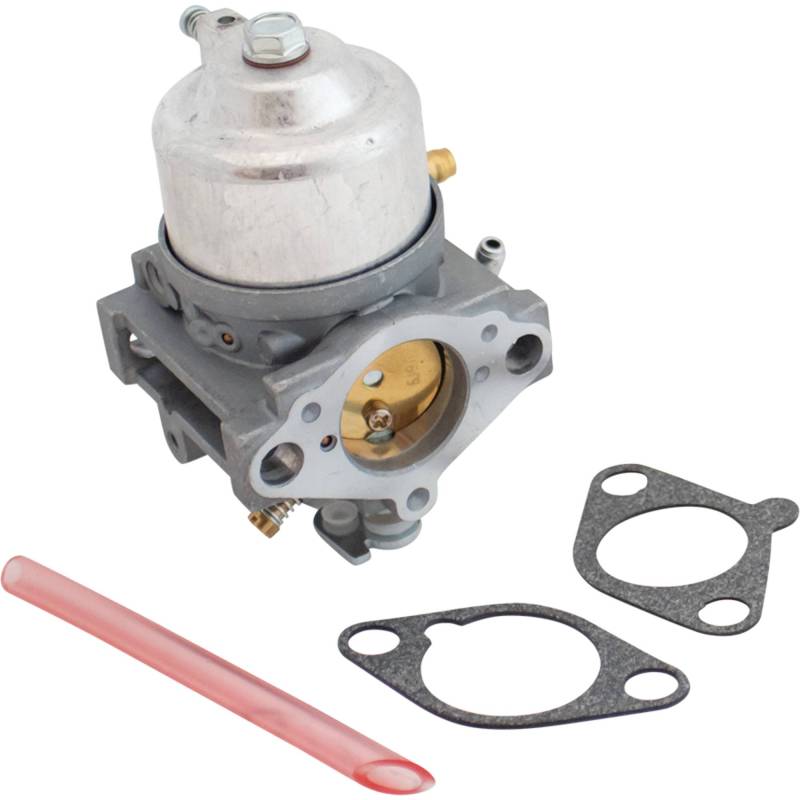

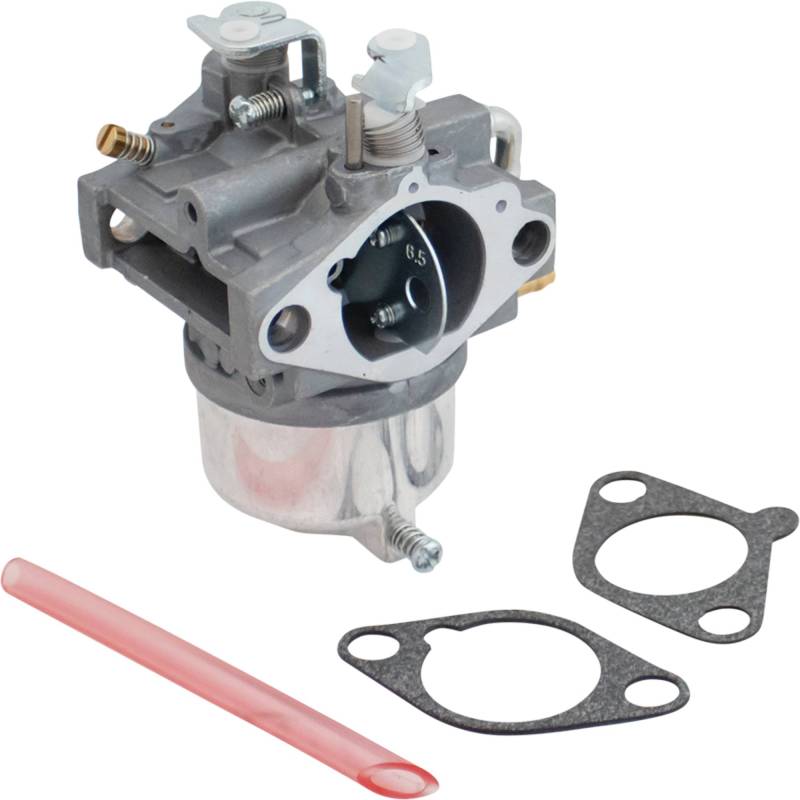

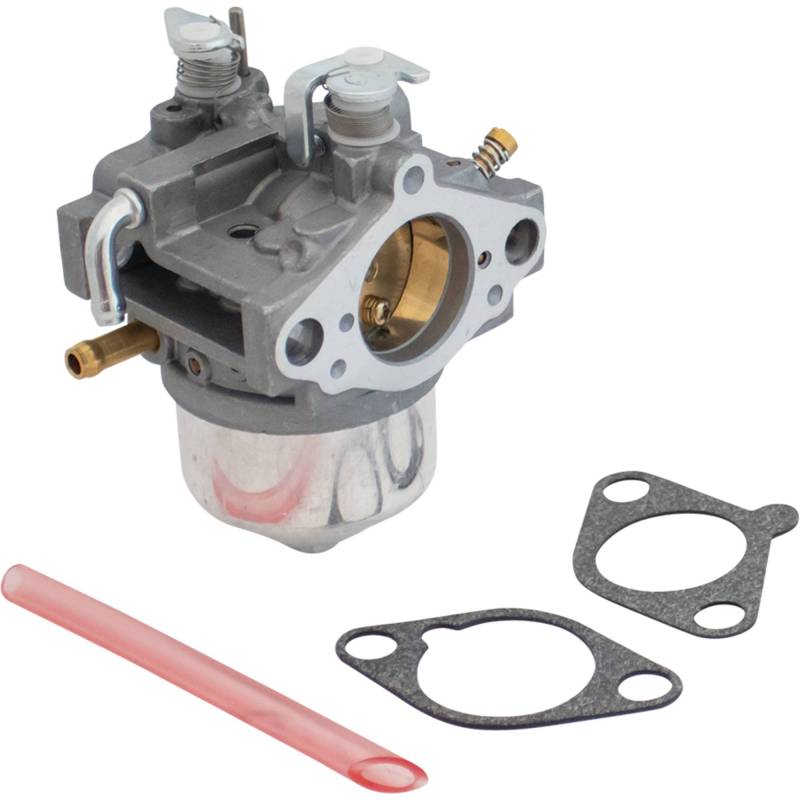

Replacement Carburetor — 15003-2349 / 15003-2153 / 15003-2154
New carburetor assembly for FC420V and FD611V single cylinder OHV engines producing 14 HP from 423cc displacement. Replaces 15003-2349, KM-15003-2349, 15003-2153, 15003-2154, 15003-2347, 15001-2972, and 15001-2987. Pressurized lubrication with cast iron cylinder liner and electronic ignition. 60mm mounting. Not compatible with greater than 10% ethanol fuel.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
