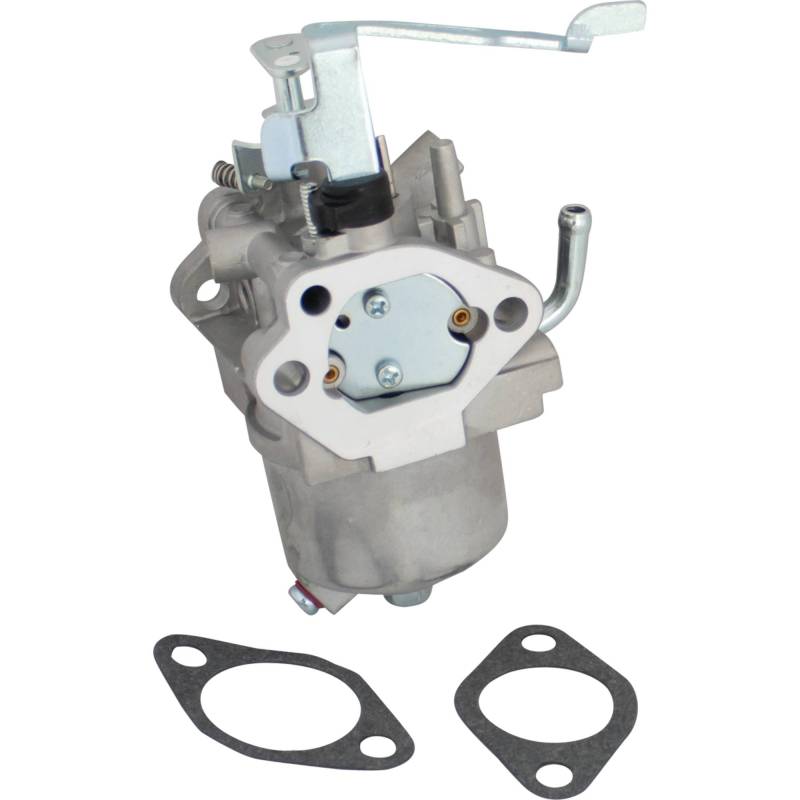

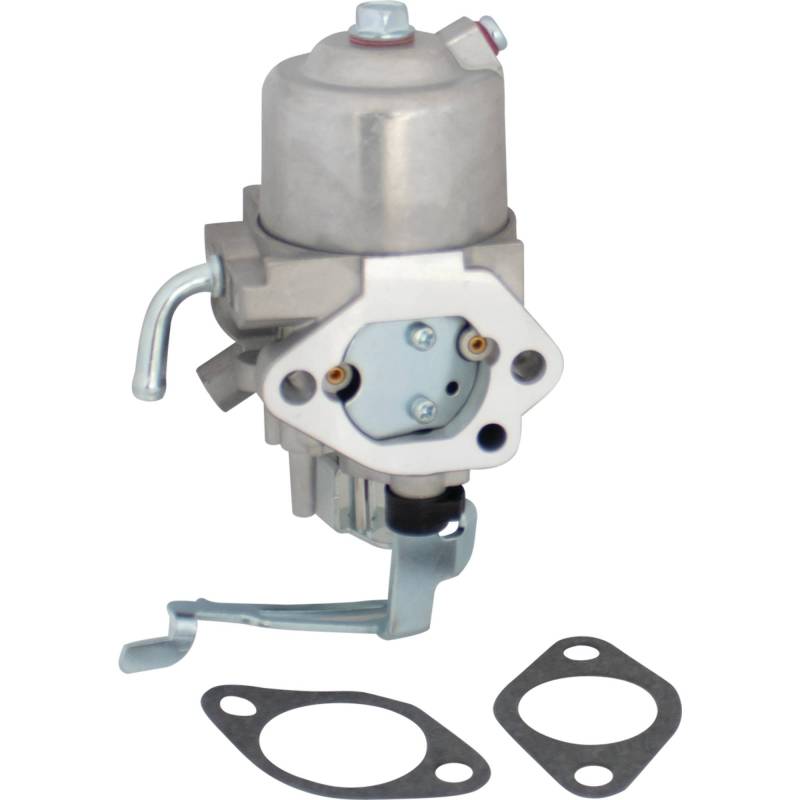

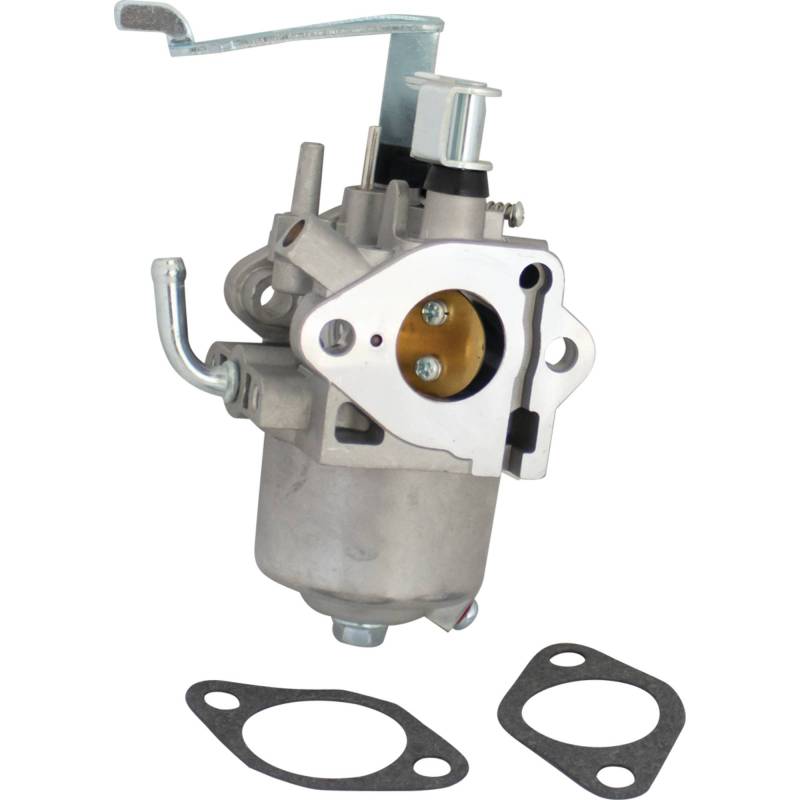

Carburetor Compatible With Ex30 Ex30d 287Cc 9Hp Ohc Single Cylinder Horizontal Shaft Engine

OEM PART NUMBERS:
• Robin/Subaru: 279-62364-20 / 2796236420 (current)
• Robin/Subaru: 279-62364-10 / 2796236410
• Robin/Subaru: 279-62364-00 / 2796236400
• Robin/Subaru: 279-62304-40 / 2796230440
• Robin/Subaru: 279-62304-30 / 2796230430
• Robin/Subaru: 279-62304-20 / 2796230420

SPECIFICATIONS:
• Type: Carburetor Assembly — Mikuni Horizontal Draft Float Type
• Engine: EX30 (EX30D) OHC
• Displacement: 287cc (17.5 cu in)
• Bore x Stroke: 75.0mm x 65.0mm (2.95" x 2.56")
• Maximum Output: 9.0 HP (6.6 kW) at 4,000 RPM
• Piston: Single Compression Ring, Single Oil Ring
• Ignition: Transistorized Magneto
• Lubrication: Splash / Oil: 1.0L (1.06 US qt)
• Ethanol: Not compatible with greater than 10% ethanol fuel
• Condition: New

APPLICATION:
• EX30 (EX30D) 287cc 9HP OHC horizontal shaft engine
• RGX4800 / RGN5100 / RGM51 generators
• Portable generators, pressure washers, water pumps, construction equipment
• Does not fit all applications — verify part number by model specifications

Replacement Carburetor — 279-62304-40 / 279-62304-30 / 279-62364-00
New Mikuni horizontal draft float type carburetor for EX30 (EX30D) 287cc single cylinder OHC engine rated at 9 HP. Replaces 279-62364-20, 279-62364-10, 279-62364-00, 279-62304-40, 279-62304-30, and 279-62304-20. Chain-driven overhead camshaft with cast iron sleeve. Not compatible with greater than 10% ethanol fuel.
