OEM PART NUMBERS:
• John Deere: RE260848
• John Deere: RE230465
• John Deere: RE211277
• John Deere: RE72860
• John Deere: RE72534
• John Deere: RE66695
• John Deere: R185288
• John Deere: R139939
• John Deere: RE73611
• LuK: 228 0115 10
• Sachs: 1888 600 136
SPECIFICATIONS:

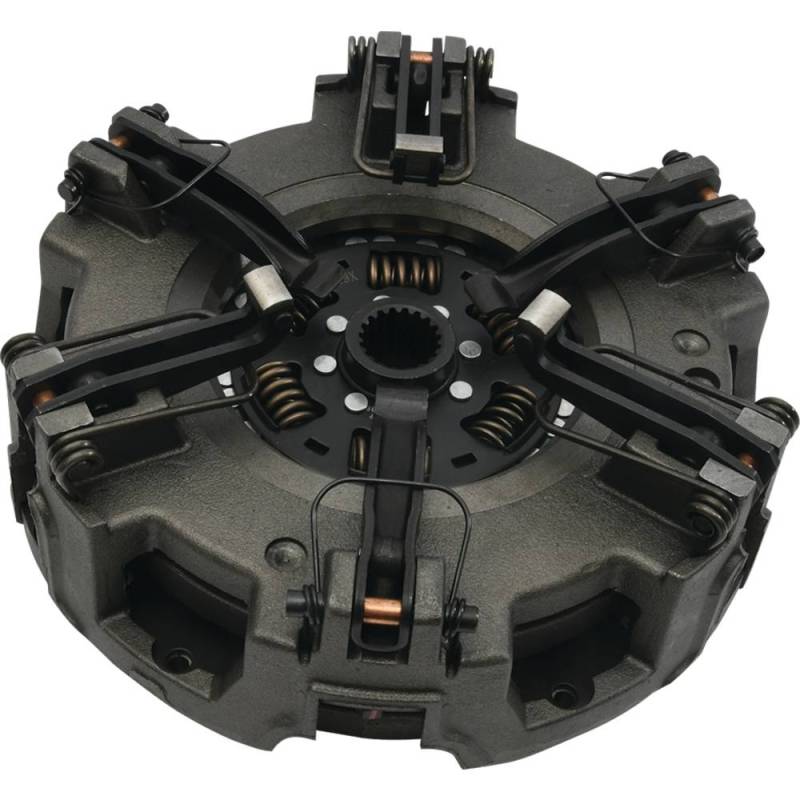

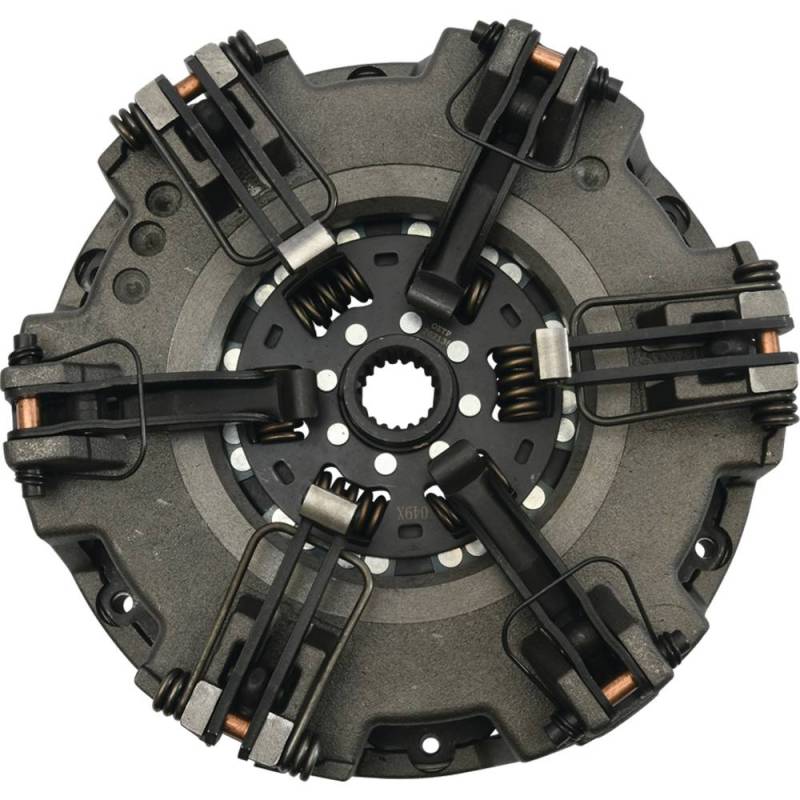

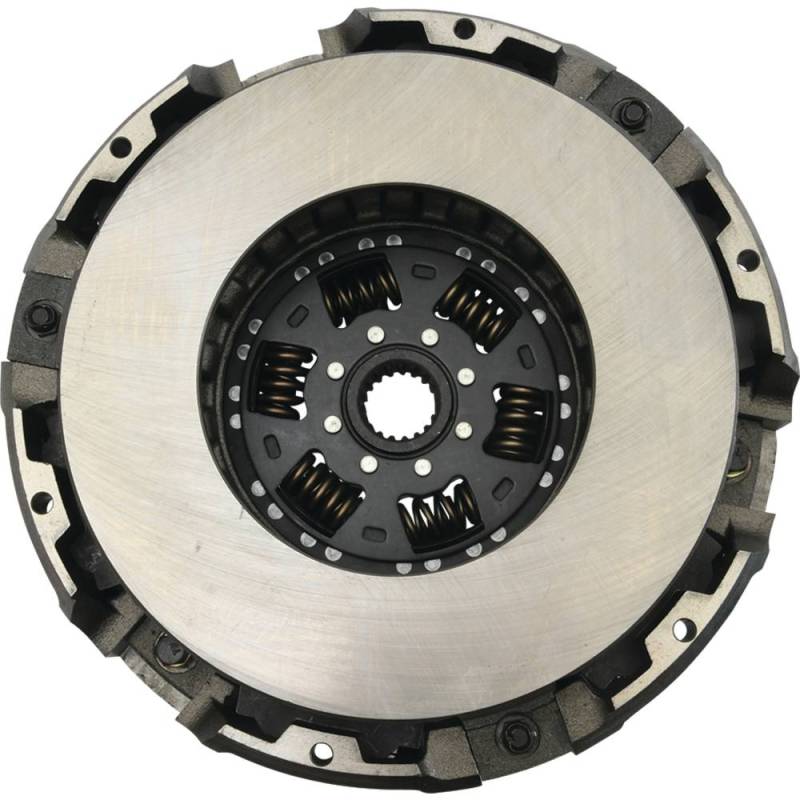

• Type: Double Stage (Dual Clutch)
• Outer Diameter: 11 Inch (280mm)
• Inner Diameter: 1-3/8 Inch (1.375 Inch)
• Spline Count: 19
• Finger Count: 6
• Material: Cast Iron
• Weight: 71 lbs (32.2 kg)
• Flywheel Step: 0.780 Inch
• Spring Type: Belleville Diaphragm with Coil Secondary
• Pressure Levers: 3
• Mounting: 6 Bolts M8 Grade 10.9
• PTO Type: Independent PTO (IPTO)
• PTO Disc: Loose Cerametalic 4-Pad
• Transmission Disc: Captive Drive
SUPERSESSION CHAIN:
• R139939 → R185288 → RE211277 → RE72534 → RE72860
• RE260848 (parallel designation for 5E-Series)
• RE73611 (5E-Series dual clutch assembly)
APPLICATIONS:
• 55+ John Deere models: 5200 through 5725N series
• 5E-Series: 5045D through 5090EL
• Utility: 5103 / 5105 / 5203 / 7205J
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
