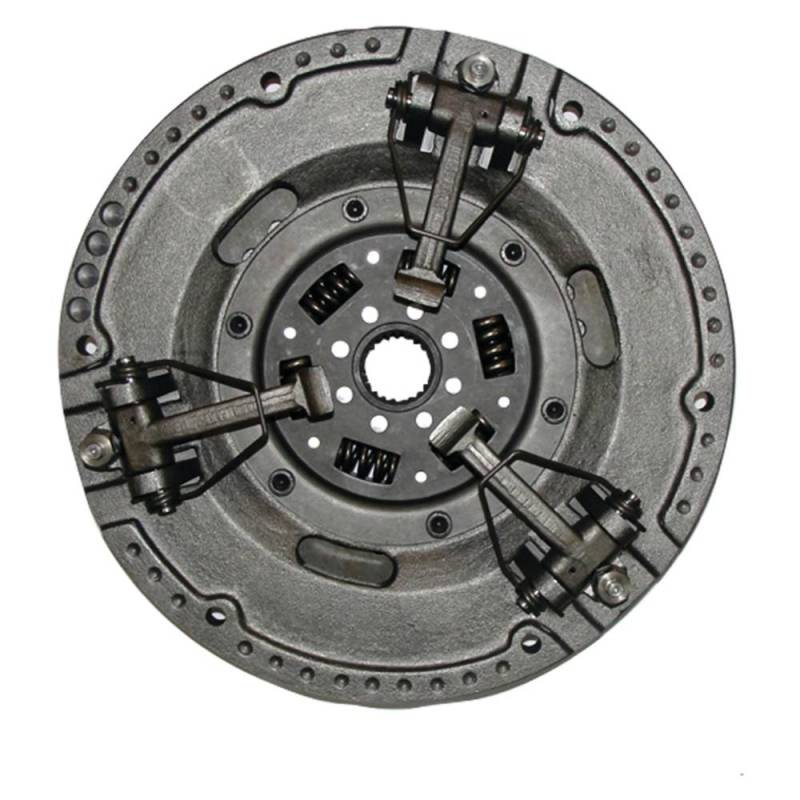

Pressure Plate Compatible With John Deere 2240 2255 2350 1035 1140 1530 1635 1750V 1950F 2040F

OEM PART NUMBERS:
• John Deere: AL120023 (current)
• John Deere: AL32965
• John Deere: AL36374
• John Deere: AL37192
• John Deere: AL37707
• John Deere: AL39452
• John Deere: AL39618
• John Deere: AL56167
• John Deere: AL19084
• Sachs: 1882 284 306

SPECIFICATIONS:
• Type: IPTO Pressure Plate (Single Stage)
• Outer Diameter: 11" (280mm)
• Inner Diameter (Hub): 1-1/2"
• Splines: 23
• Fingers: 16
• Levers: 3
• Material: Cast Iron
• Spring Type: Belleville
• Flywheel Step: 2.20-2.210"
• Release Plate: Not Included
• Condition: New

SUPERSESSION:
AL32965 → AL120023 / AL36374 → AL120023

APPLICATIONS:
• JD 800/900: 830 / 840 / 930 / 940 (incl. VU/V variants)
• JD 1000: 1020-1140 (incl. OU/VU/EF/EV/F/V variants)
• JD 1500-1700: 1530-1750V (incl. OU/VU/EF/EV/F variants)
• JD 1800-1900: 1830-1950F (incl. F/V variants)
• JD 2000: 2020-2350

PRODUCT NOTICE:
