Carburetor Compatible With Courage Sv590 Sv600 Sv610 Sv620 Sv540 19Hp-22Hp 597Cc 535Cc Ohv Vertical

OEM PART NUMBERS:
• Kohler: 20 853 44-S / 2085344S (superseded by 20 853 35-S)
• Kohler: 20 853 35-S / 2085335S (current)
• Kohler: 20 853 21-S / 2085321S (superseded by 20 853 35-S)
• Kohler: 20 853 45-S / 2085345S (superseded by 20 853 35-S)
• Kohler: 20 853 22-S / 2085322S (superseded by 20 853 35-S)

SPECIFICATIONS:
• Type: Carburetor — Float Fixed Main Jet (Walbro/Nikki)
• Engine Series: Kohler Courage Single Cylinder
• Configuration: Single Cylinder OHV 4-Stroke Air-Cooled Vertical Shaft
• Displacement: 535cc-597cc (32.6-36.4 cu in)
• Bore: 89.0mm-94.0mm (3.50"-3.70")
• Stroke: 86.0mm (3.38")
• Compression Ratio: 8.5:1
• Power Range: 18HP-22HP
• Oil Capacity: 1.5L (1.6 US qt)
• Lubrication: Full-Pressure with Full-Flow Filter
• Ignition: Electronic
• Dry Weight: 79 lbs (35.8 kg)
• Ethanol: Not Compatible with Greater Than 10% Ethanol Fuel
• Condition: New

APPLICATION:
• SV540 / SV590 / SV600 / SV610 / SV620 Courage Vertical Shaft (18HP-22HP)
• Riding Mowers, Lawn Tractors, Zero-Turn Mowers
• Does not fit all applications — verify OEM part number by referring to engine model and spec

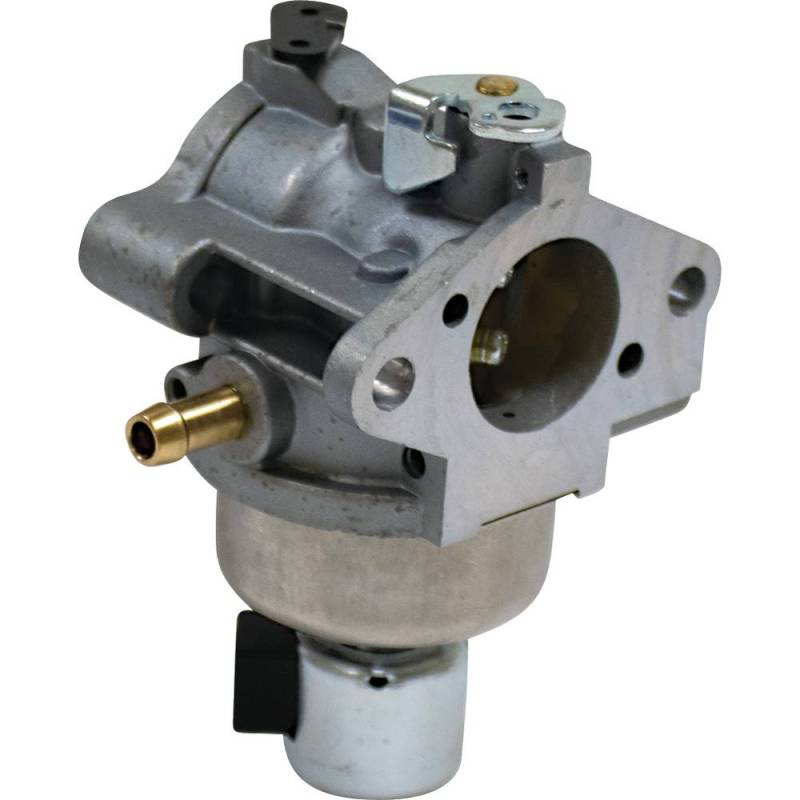

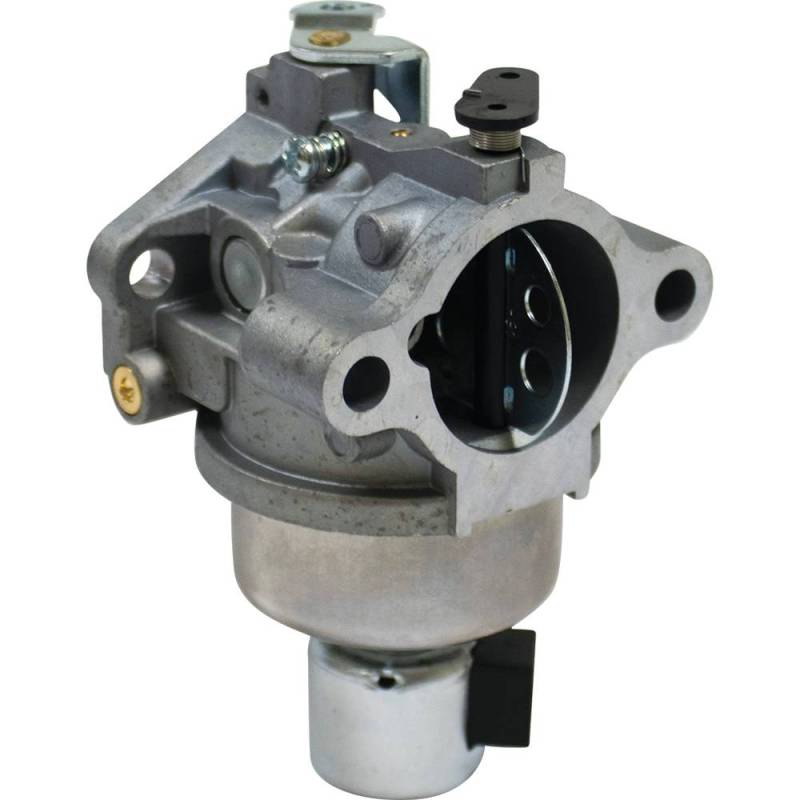

Courage Series Carburetor — 20 853 44-S / 20 853 21-S / 20 853 35-S
New carburetor for Kohler Courage single cylinder vertical shaft engines. Replaces 20 853 44-S and 20 853 21-S, both superseded by current 20 853 35-S. Also replaces 20 853 45-S and 20 853 22-S. Fits SV540 (18HP, 535cc) through SV620 (22HP, 597cc). Single cylinder OHV 4-stroke air-cooled. Bore 89.0mm-94.0mm, stroke 86.0mm. Electronic ignition system.
